Summary of Contents for High Tech IVC-45L

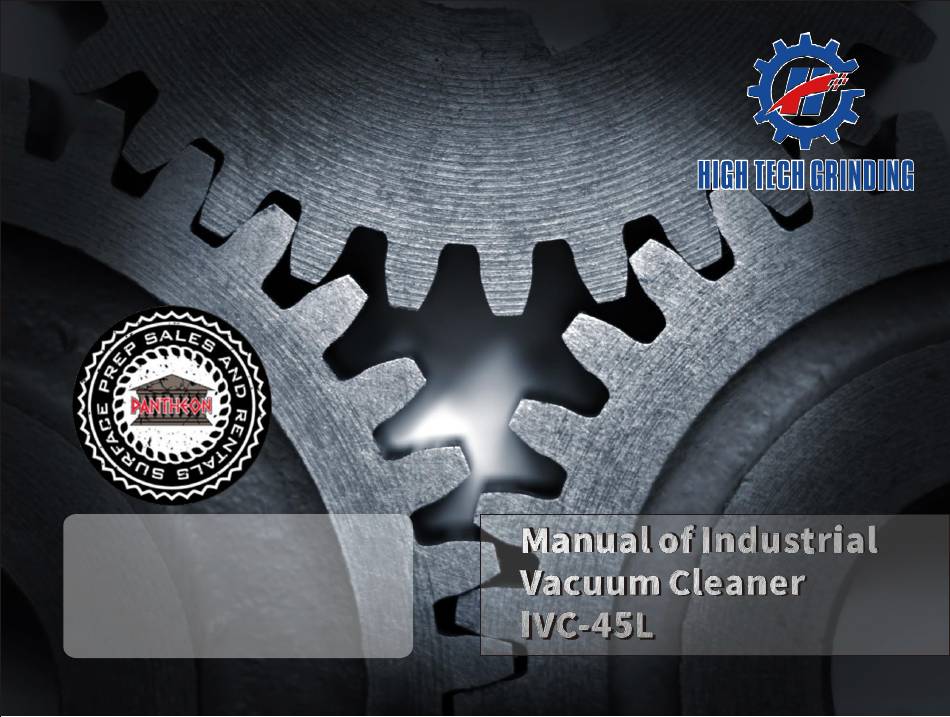

- Page 1 Pantheon Sales & Rentals Colorado Branch: Address: 1820 W Baker Avenue Englewood, Colorado 80110 Customer Support & Sales: +1-720-504-5800 Email: sales@pantheonsurfaceprep.com California Branch: Address: 5556 Corporate Avenue Cypress, California 90630 Customer Support & Sales: +1-714-527-6700 Email: info@pantheonsurfaceprep.com...
-
Page 2: Table Of Contents
Contents 4.2.3 Notes ______________________________________________________ 4.4 Start and stop the vacuum cleaner ___________________________________ 1. Introduction 4.5 Sliding Valve _____________________________________________________ 1.1 Summary ________________________________________________________ 4.6 Manual cleaning device 1.2 Liability __________________________________________________________ 4.7 Dust Collecting System 1.3 Manual __________________________________________________________ 1.4 Transportation 5. Maintenance 1.5 Accessories ______________________________________________________ 5.1 Overview ________________________________________________________ 15 1.6 Package Acceptance _______________________________________________ 5.2 Daily Inspection... -
Page 3: Liability
Check that whether the delivery matches the order. If there are any discrepancies, contact your supplier. IVC-45L is an industrial vacuum cleaner specially designed for grinding machines. When lifting the machine, be sure to follow the prescribed steps. It mainly uses cyclone separator and HEPA13 as the filtering device. The cyclone separator is responsible for filtering most of eeeeee dust particles. -
Page 4: Safety Instruction
then manufacturers warranty is unavailable.) 2. Safety Instructions The machine should be connected to appropriate electrical outlet. Only use power cables that can withstand high current. Connecting with a grinder to achieved dust free working condition. 2.1 Overview Keep the machine away from drains and furnace mouths or other dangerous goods, otherwise it may cause personal injury or loss of machinery and property. -
Page 5: Machine Description 3.1 Overview
3. Machine Description 3.1 Overview IVC-45L is a vacuum cleaner mainly used for industrial and construction purposes. It is mainly used to absorb dry dust particles, such as dust generated in the process of grinding concrete, stone, and wood. The vacuum cleaner has two filtering systems, the cyclone is the main filter, and the HEPA13 filter barrel is the secondary filtering device. -
Page 6: Filter Barrel
If you want to unlock the locking rear wheel, press the brake pad "OFF" with foot to unlock it. 4. The Operation of Machine 4.1 Overview 3.2.4 Filter barrel The following sections describe the vacuum cleaner at different locations during The filter element barrel is mainly composed of a filter element device. -
Page 7: Connection Of Hose And Vacuum Cleaner
4.3 Connection of hose and vacuum cleaner 4.5 Sliding Valve The IVC-45L is equipped with an 80mm connector, which can quickly and safely The sliding valve is installed between the cyclone separation barrel and the filter connect the grinder and the vacuum cleaner. -
Page 9: Dust Collecting System
3, Wait 3-5 seconds, and then repeat "Step 2" at least fourto five times. After the vacuum cleaner has been running for a period of time, the dust in the dust 4,After cleaning, puII up the sliding valve to normal working condition. bag has reached a certain amount, please clean the dust bag and prepare for the next dust collection. -
Page 10: Maintenance
5.3 Cleaning 5. Maintenance 5.3.1 Clean cyclone separator 5.1 Overview Press the emergency stop button and pull out the power.After stopping the machine, lower the cyclone barrel to the transport position and loosen the three bolts It is recommend that the vacuum cleaner be checked regularly to extend the on the cyclone barrel.(Figure 1) service life. -
Page 11: Overloading Protection
To clean the filter element thoroughly, remove the filter element for cleaning. 6. Frequently Asked Questions & Solutions Press emergency stop button and unplug power supply to stop the machine. Adjust the device to transportation position.Loosen the three tower buttons on the filter cover and turn the filter counterclockwise to remove it. -
Page 12: Technical Data
The manufacturer is not responsible for any damage or defects caused by improper use, corrosion or use of specifications beyond the noted specifications. The manufacturer shall not be IVC-45L responsible for any indirect damage or expense under any circumstances.
