INSTALLATION INSTRUCTIONS
•
Carefully open the packaging, remove contents and lay out parts on a protective surface to avoid damage.
•
Check package contents against the Supplied Parts List in the next page(s) to assure that all components were received
undamaged. Do not use damaged or defective parts.
•
Carefully read all instructions before attempting installation.
Install mount with care. Please read these instructions before beginning this installation, and carefully follow all
instructions contained herein. Use proper safety equipment and protocol during installation.
Please consult PerfectVision for help if you:
•
Don't understand these directions or have any doubts about the safety of the installation.
•
Are uncertain or unfamiliar with the nature of the existing structure to be reinforced.
For questions and consulting please call PerfectVision at 1-800-205-8620. Ask for Wireless Sales & Product Support.
Note: Please leave instructions in shelter or cabinet on site for future reference.
Do not use this product for any purpose or in any configuration not explicitly stated in this instruction. We hereby disclaim
any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
REVISION
DATE
PART #: PV-SFA

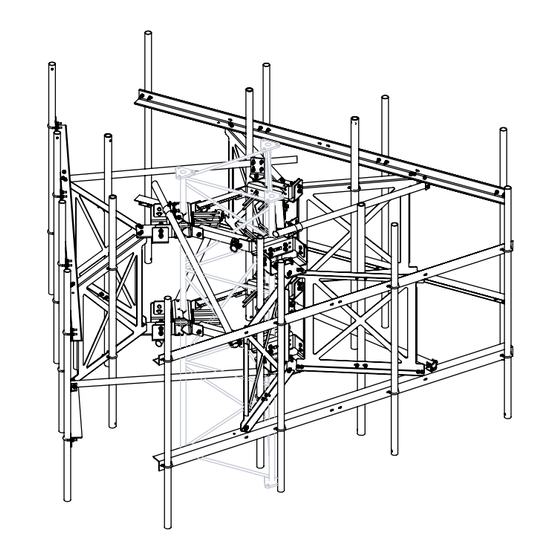

L.I.F.E. MOUNT™ SECTOR FRAME
DRAWN BY
6
PAGE NUMBER
4/16/2021
NOTE: SEE PAGE 16 & 17 FOR
SAFETY CLIMB ROUTING
INFORMATION
NOTE: SEE PAGE 18, 19, & 20
FOR MOUNT CLASSIFICATION
AND ANTENNA REFERENCE
DJN
1 OF 20
