Summary of Contents for Hyundai power products HYCW1200E

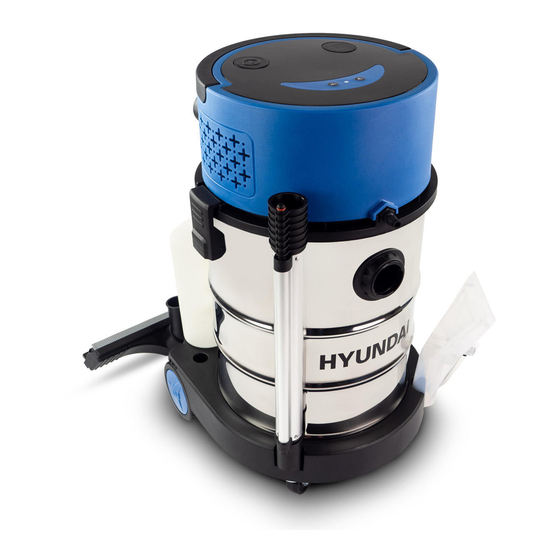

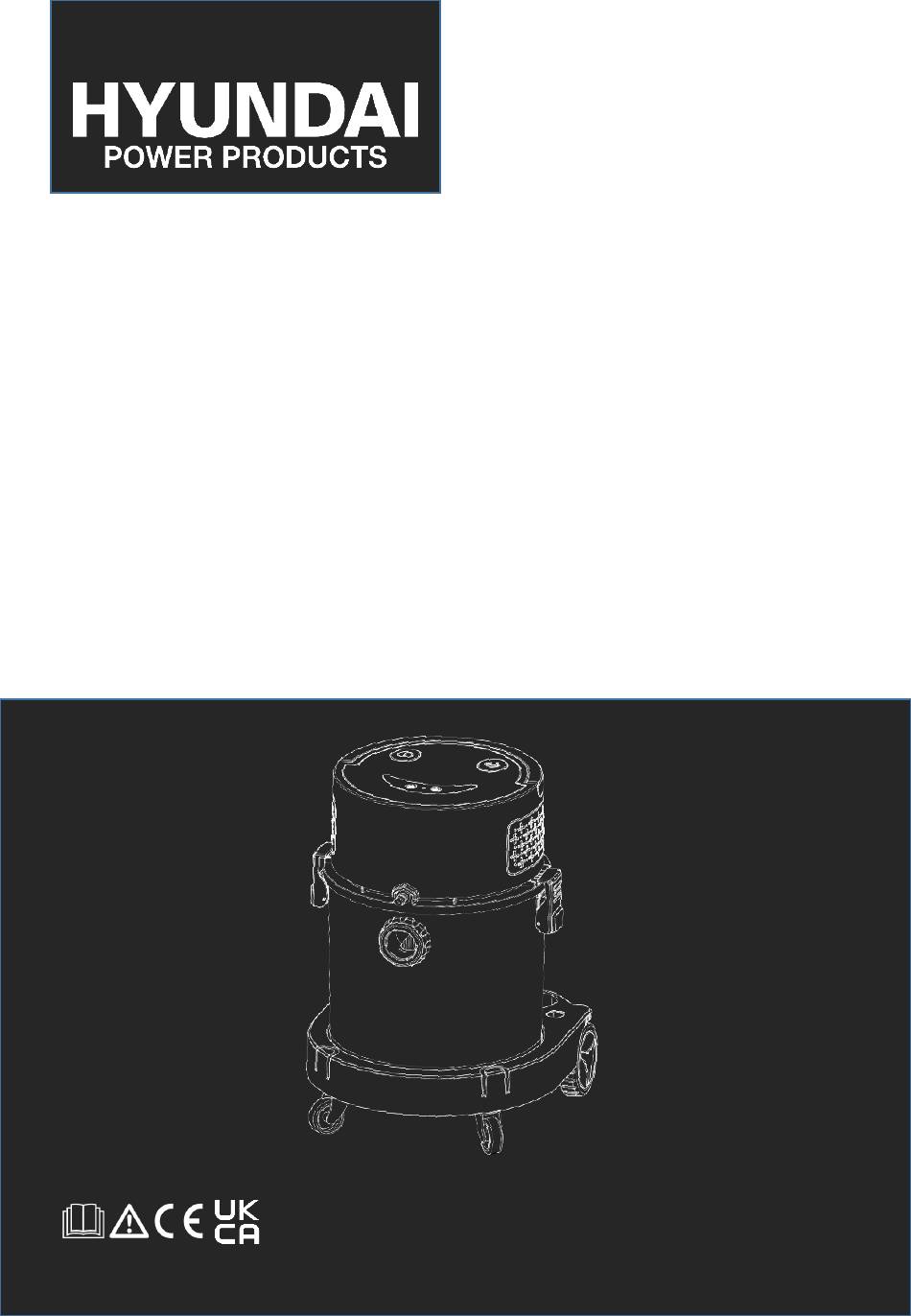

- Page 1 Carpet Washer Wet & Dry Vacuum HYCW1200E Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Introduction……..……………………………3 Technical Data…………......28 Safety Information…..…………………..4-13 Recycling And Disposal..………………...29 Understand Your Machine.…..…………...4 Personal Safety...…….……………………4-5 Declaration Of Conformity…..…………..30 Inspect Your Machine…………………..5 Work Area…….……………………………..6 Useful Information…..……………………..31 During Use…….………………………………7 Our YouTube Channel…..………………..31 Batteries…….…………………………………8 Warranty…………………………………….31 Electricity…….………………...…………...8-9 Manual Updates….……………………….31 Double Insulated Devices…..……..9 Returning Your Product….……………….31 Vibrations….…………………………..10 Leaving A Review….……………………...31 Noise…….……………………………..10... -
Page 3: Introduction
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... -
Page 8: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 9: Double Insulated Devices
Safety Information Electricity (Continued) • Power tools plug must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. •... -
Page 10: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Intended Use
Safety Information Intended Use The HYCW1200E is a 2 in 1 Carpet Washer/Vacuum Cleaner. It is powered by a 1200W HYUNDAI motor. This machine is specifically a pedestrian tool, manufactured according to the latest safety requirements. Every precaution is only effective when it’s followed exactly. -
Page 12: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 13: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement. -
Page 14: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. - Page 15 Unboxing *Not To Scale Note – When unboxing the machine and components, some of the components are inside the drum. Filters may also be already installed. Remove them. F – Extension A – Machine Drum, Motor & Base G - Drum Particulate Filter (Dry) B –...
-
Page 16: Features
Features *Not To Scale Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 17 Features Motor Housing – Contains the Motor and the function buttons. Machine Drum – Collects debris, dirt and dust. Standby Switch – Changes the power state of the machine. Power LED – Shows if the machine is On or Off. Suction Button –...
-
Page 18: Assembly
Assembly HYCW1200E Main Body Assembly Ensure the machine is unplugged from a power source. Undo the Drum Clamps, and using the handle pull the Motor Housing off the Machine Drum. Empty all contents of machine. There shouldn’t be any loose parts with in the drum. -
Page 19: Hose Attachments
Assembly HYCW1200E Hose Attachment Insert the Vacuum Hose into the Vacuum Inlet. Rotate the Vacuum Hose clockwise to secure it into place. Attach the Detergent line that is part of the Vacuum Hose. Just push this onto the Detergent Outlet until secured. -
Page 20: Head & Vacuum Extension Attachment
Assembly HYCW1200E Head & Vacuum Extension Attachment Ensure the Detergent line on the Vacuum Hose is connected to the Control Handle. Push the Vacuum Extension into the Control Handle. Ensure the detergent lines match up. Push the 2 halves of the Vacuum Extension together, also ensuring the detergent lines match up. -
Page 21: Operation
Operation HYCW1200E Pairing Ensure you understand the whole Instruction Manual before any operation Firstly, ensure the machine is plugged into a power source. Press the standby button. The Standby LED will illuminate when machine has power. Press and hold both Suction and Detergent buttons on the motor housing. -
Page 22: Dry Use
Operation HYCW1200E Dry Use Turn the machine off at the power source when removing/installing parts Remove the Motor housing from the Drum Install the Drum Particulate (Dry) filter on to the internal motor inlet. You do this by simply pushing the filter over the motor inlet Reinstall the Motor housing on to the drum. -
Page 23: Wet Use
Operation HYCW1200E Wet Use Remove the Motor housing from the Drum Install the Sponge filter on to the internal motor inlet. You do this by simply pushing the filter over the motor inlet Reinstall the Motor housing on to the drum. -
Page 24: Carpet Washer Operation
Operation HYCW1200E Carpet Washer Operation Prepare the machine for “Wet Use” as described on the previous page (page 23) Fill the Detergent Tank with suitable carpet/upholstery detergent (Not included). Follow the recommended dilution instructions. Unsure the cap on the Detergent Tank is secured, and the detergent line is connected to the Detergent Inlet on the Motor Housing. -
Page 25: Blower Function Operation
Operation HYCW1200E Blower Function Operation Turn the machine off at the power source when removing/installing parts Remove the Vacuum Hose Attach it to the Motor Outlet, twist it clockwise to secure. Press the Standby button and check the Power LED is illuminated. -
Page 26: Maintenance & Care
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. Battery Replacement To replace the battery: 1. -
Page 27: Storage
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 28: Technical Data
Technical Data Machine Specification Model HYCW1200E Motor Rated Power 1200W Voltage 230V ~ 50Hz Power Cable Length 4.5m Vacuum Hose Length 1.5m Drum Capacity Net Weight 8.3kg Max Ambient Operating Temperature www.hyundaipowerproducts.co.uk... -
Page 29: Recycling And Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 30: Declaration Of Conformity
Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: Wet & Dry Vacuum Cleaner/Carpet Washer SKU Code: HYCW1200E Date of Issue: 09/12/2021 Regulations and Directives of Compliance • 2006/42/EC The Machine Directive • 2014/30/EU EMC Directive • 2011/65/EU RoHS... -
Page 31: Useful Information
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 32: Product Record
Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:……………………………………………………………………………….. -
Page 33: Notes
Notes www.hyundaipowerproducts.co.uk... - Page 34 Notes www.hyundaipowerproducts.co.uk...
-
Page 35: Contact Us
Contact Us Need Help? Talk To Our Experts Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 36 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
