SONNEMAN E Series Assembly Instructions

Important: Always unplug the power cord before installing or replacing bulb and before cleaning or other maintenance.

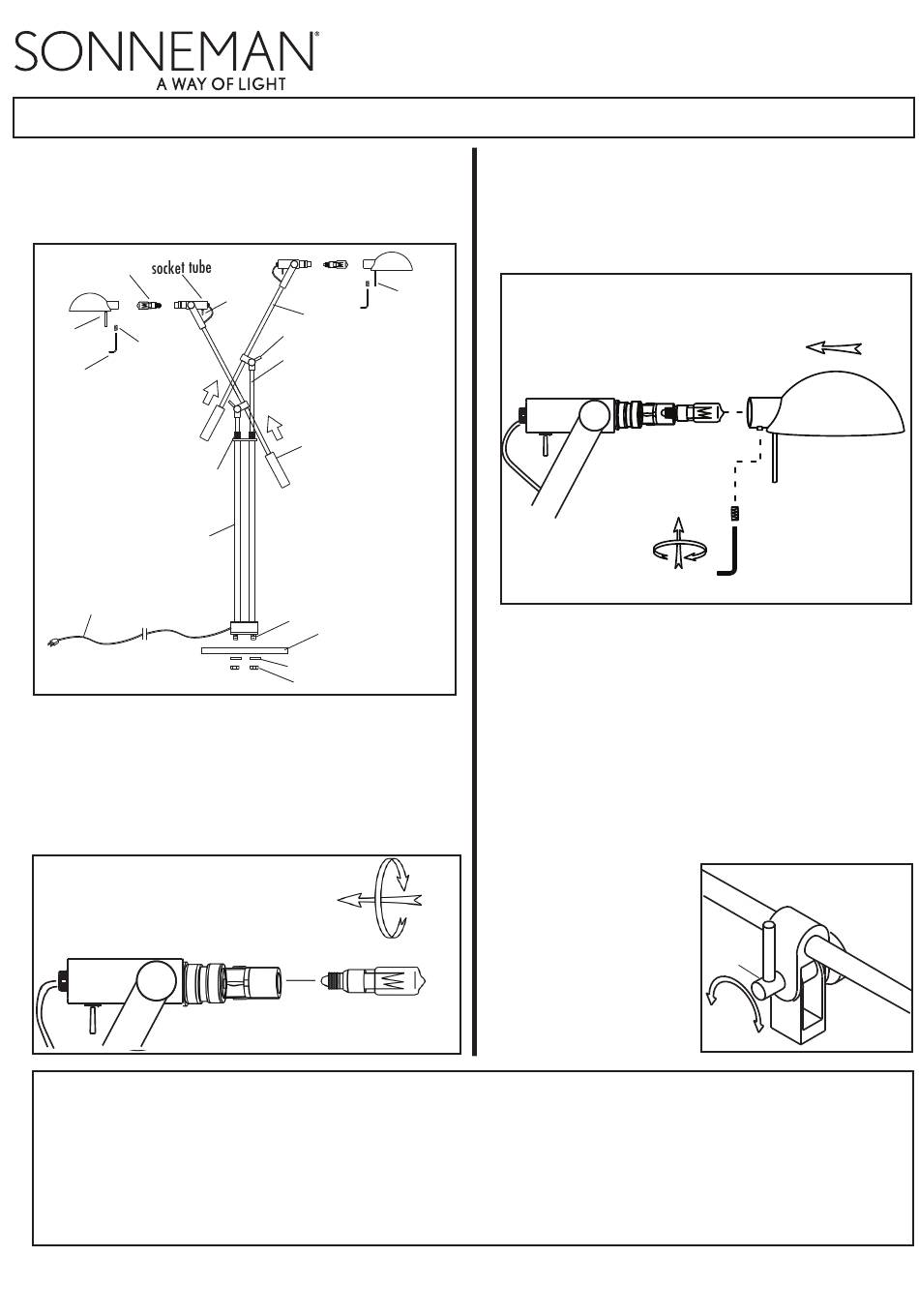

LAMP ASSEMBLY

1. Insert the studs of lower stem assembly into holes in the base
and secure with washers and assembly nuts. (Fig. A)
2. Screw counterweights on to threaded couplers of the boom arms.
FIG. A
bulb
shade
hex screw
hex key
lower stem
assembly
power cord
BULB INSTALLATION/REPLACEMENT (Fig. B)
1. Remove bulb from box. Hold the bulb by the ceramic part or
use protective cloth. Push in bulb while screwing it into the socket.
The socket is spring loaded.
NOTE: DO NOT TOUCH THE GLASS PART OF THE BULB WITH BARE
HANDS. Oil from fingerprints will reduce life of the bulb.
FIG. B
1. Disconnect and allow to cool for at least 5 minutes before
replacing bulb.
2. Bulb gets HOT quickly! Be sure power is off when re-lamping.
3. Do not touch hot enclosure.
4. Do not direct light at persons.
5. Do not look directly at lighted bulb.
high/low
switch
boom arm
clutch lever
upper stem
counterweight
stem
clutch
studs
base
washers
assembly nuts
Important Safety Instructions Lighted lamp is HOT!
SHADE INSTALLATION (Fig. C)
1. Slide Shade Socket Tube. Make sure slot in Teflon Ring
aligns with shade hole.
2. Secure Shade to Socket Tube by screwing in hex screw
with hex key provided.
handle
FIG. C
3. Plug in power cord. The High-Low Switch is located on the
underside of the Socket Tube.

HEIGHT ADJUSTMENT

•To increase height of lamp, loosen the Stem Clutch and
carefully pull up on the Upper Stem. Tighten the Clutch once
lamp is at desired height. (Fig. A)
•To decrease height of lamp, loosen the Stem Clutch and
carefully push down on the Upper Stem. Tighten the Clutch once
lamp is at desired height.

BOOM ARM ADJUSTMENT

To adjust boom arm, loosen
Clutch Lever and set position.
To lock position, tighten Lever.
(Fig. E)
6. Keep lamp away from curtains, draperies, and similiar materials.
7. Use only a 120v, 75watt, mini can (E11) base, halogen bulb.
8. Do not touch bulb at any time. Use a soft cloth to clean. Oil from skin
may damage bulb integrity.
9. Do not operate the lamp with damaged or missing shield.
10. Damaged shields should be replaced before lamp is used.
Assembly Instructions for: item 3046
Series E - Dome Double Boom Arm Lamp
2
Clutch
Lever
©2006 SONNEMAN - A WAY OF LIGHT
1
FIG. E
