UAV
(URBAN ASSAULT VEHICLE)

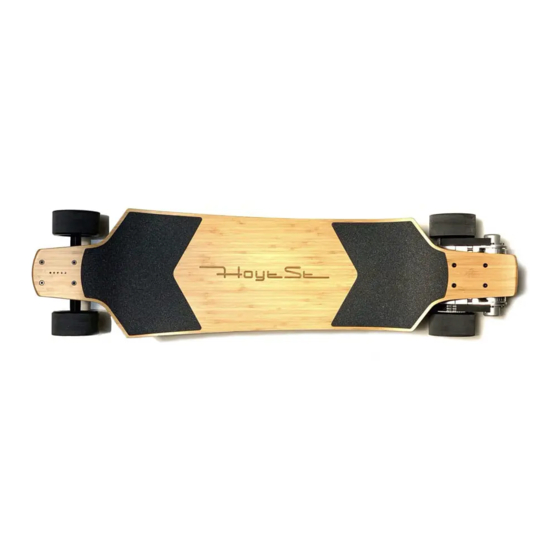

HP1 and HR1 Controller
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hoyt St HP1

  • Page 1 (URBAN ASSAULT VEHICLE) HP1 and HR1 Controller OWNER’S MANUAL...
  • Page 2 READ BEFORE YOU RIDE! ALWAYS WEAR A HELMET when riding the board. Other protective gear like wrist guards, gloves, elbow knee pads also strongly recommended. THE BOARD MAY LOSE POWER OR BRAKES due to low batteries or regenerative braking overcharge. Ride at speeds manageable without power or brakes.
  • Page 3 Appropriate precautions naturally mitigate these risks. AVOID WATER ! Your Hoyt St board is water resistant, not waterproof. The electronics and other components are susceptible to water damage. ELECTRIC SHOCK RISK when opening the deck to remove batteries, avoid touching the encased...
  • Page 4 PERFORMANCE SPECS RANGE Depending on many variables (reference the range calculator at hoytskate.com), your Hoyt St UAV eboard will travel 20-25 miles. SPEED Top speed varies depending on operating mode. Mode 1 top speed is 18 mph, mode 2 is 28 mph and, in optimal conditions, mode 3 will reach 38 mph.

  • Page 5: Remote Control

    GLOSSARY REMOTE CONTROL RC POWER THROTTLE MODE TIME TRAVEL REVERSE (LEFTIES) LANYARD THROTTLE USB CHARGING PORT TOP VIEW BOTTOM VIEW...

  • Page 6: External Components

    EXTERNAL COMPONENTS BATTERY INDICATOR KINGPIN & BUSHING TRUCK UNDERCARRIAGE DECK DECK FASTENERS TIRE BELT TRUCK MOTOR MOUNT WHEEL PULLEY MOTOR GEAR COVER BRUSHLESS MOTORS BASHGUARD CHARGE PORT CAUTION!: KEEP FINGERS, POWER BUTTON HAIR & LOOSE CLOTHING AWAY FROM MOVING PARTS.
  • Page 7 CHARGER Hoyt St chargers are UL certified and built with the highest level of quality and safety. To charge your Hoyt board, plug in the charger to the port located on the underside of the skateboard’s control panel. Lift open the charging hatch and insert the charger. Do not force fit.

  • Page 8: Operation

    OPERATION GETTING STARTED CHARGE THE DECK Full charge = 2½ hours Charger light turns green when deck is fully charged. CHARGE THE REMOTE Full charge = 6-8 hours of use with a 30-60 minute charge. LEDs glow green when full charge reached.
  • Page 9 OPERATION LET’S RIDE! SAFETY FIRST ALWAYS WEAR A HELMET and consider other protective equipment. Verify the board is functioning (without rider) in a flat, open area clear of obstructions. Get familiar with the throttle responsiveness before riding. If this is your first ride, we urge you to get a feel for the power and nuance of the board in beginner mode.
  • Page 10 POWER THE REMOTE ON AND OFF Press and hold the power button until it vibrates. ON: hold 1½ seconds (short vibration) OFF: hold 1½ seconds (long vibration) AUTO-OFF: after 5 minutes of inactivity. POWER THE DECK ON AND OFF ON: instantaneous LED light will glow blue.
  • Page 11 Throttle Lock: double click to lock/unlock. Blue light will glow when locked. Single click for state of charge. MODE: Hoyt St remote control comes with three modes: Click once to toggle between modes., each mode vibrating (once, twice or thrice) to indicate mode.
  • Page 12 FORWARD BRAKE/REVERSE POWER MODE REVERSE TRIM Remote Control (Re-)Pairing: Pairing is the process of wirelessly coupling your remote control transmitter with the receiver built into the board so other transmitters cannot interfere with data transmission. To re-pair the remote: • Turn off skateboard and remote control. •...
  • Page 13 Wireless Electrical Parameters: RF Range: 2408-2475MHZ RF Power: >20dBm(EU) Input Power: 1S3.7V *1000mAh HP1 FCC ID: 2 A Z E 4 – H P 1 HR1 FCC ID: 2 A Z E 4 – H R 1...
  • Page 14 • Press the pulley into the wheel core using an arbor press. • Stop when pulley is 1-2mm from urethane wheel wall. Hoyt St will transfer your wheel pulleys to new wheels free of charge when new wheels purchased from Hoytskate.com.
  • Page 15 • If necessary, manually adjust the belt and motor mount for proper alignment and re-tighten the bolts. Belt maintenance: Hoyt St belts have been built to last hundreds of miles without replacement. nspect belts and pulleys periodically by manually rotating the wheels.

  • Page 16: Limited Warranty

    LIMITED WARRANTY Your Hoyt St electric skateboard is covered by a 6..month manufacturer’s warranty, covering defects in craftsmanship and materials. Not covered is damage as a result of abuse, misuse, neglect, negligence, accident or exposure to water. Modification of components and/or tampering with the electronics voids the warranty.
  • Page 17 5305 NE 121 Ave, Q606, Vancouver, WA 98682 www.hoytskate.com © Hoyt PDX Electric, LLC 2022...
