Out back power EnerSys RADIAN Series Quick Start Manual

Specifications

Environmental Specifications
Specification
Rated Temperature Range (meets component specifications; however, please note
that the inverter output wattage is derated above 25°C)
Operational Temperature Range (functions, but not rated for operation; does not
necessarily meet all component specifications)
Storage Temperature Range
IP (Ingress Protection) Rating of Enclosure
Environmental Category
Wet Locations Classification
Relative Humidity Rating
Pollution Degree Classification
Maximum Altitude Rating
Overvoltage Category (AC Input)
Overvoltage Category (DC Input)
All Radian inverters can deliver their full rated wattage at temperatures up to 25°C (77°F). The Radian
maximum wattage is rated less in higher temperatures. Above 25°C, the GS7048E is derated by a factor of
70 VA for every increase of 1°C. The GS3548E is derated by 35 VA per 1°C. This derating applies to all
power conversion functions (inverting, charging, selling, offsetting, etc.)
IMPORTANT:
This inverter is intended for indoor use only. Failure to
adequately protect the inverter will void the warranty.
Contact Information
Mailing Address: 3767 Alpha Way
Bellingham, WA 98226 USA
Web Site: www.outbackpower.com
Date and Revision
September 2022, Revision B
World Headquarters EnerSys EMEA
2366 Bernville Road EH Europe GmbH
Reading, PA 19605 USA Baarerstrasse 18
+1 610-208-1991 / +1 800-538-3627 6300 Zug Switzerland
For more information visit www.enersys.com © 2017 EnerSys. All Rights Reserved. Trademarks and logos are the
property of EnerSys and its affiliates unless otherwise noted. Subject to revisions without prior notice. E.&O.E.
900-0159-01-01 REV D
Do not copy or distribute without permission.
Value
–20°C to 50°C (–4°F to 122°F)
–40°C to 60°C (–40°F to 140°F )
–40°C to 60°C (–40°F to 140°F)
IP20
Indoor, Unconditioned
Wet locations: No
93%
PD 2
2000 m (6561')
3
1
Warranty
The warranty for this product can be downloaded from
https://www.outbackpower.com/resources/warranty/procedures
A copy is available by sending a self-addressed envelope to the address
noted to the left.
EnerSys Asia
152 Beach Road
Gateway East Building #11-08
Singapore 189721 / +65 6508-1780
Not intended for use with
Quick Start Guide
RADIAN™ Series Inverter/Charger
This Quick Start Guide is printed in unbound format. The pages can be read in any order, or shown alongside one another.
WARNING: Fire/Explosion Hazard
Do not place combustible or flammable materials within 3.7 m (12 feet) of the equipment. This unit employs mechanical relays
and is not ignition-protected. Fumes or spills from flammable materials could be ignited by sparks.
WARNING: Personal Injury
Use safe lifting techniques and standard safety equipment when working with this equipment.
IMPORTANT:
Clearance and access requirements may vary by location. Maintaining a 92 cm (36") clear space in front of the system for
access is recommended. Consult local electric code to confirm clearance and access requirements for the specific location.
IMPORTANT:
These instructions are for use by qualified personnel who meet all local and governmental code requirements for licensing
and training for the installation of electrical power systems with AC and DC voltage up to 600 volts. This product is only
serviceable by qualified personnel.
NOTE:
For specifications, functions, applications, stacking, and programming instructions (or if installing with hardware not sold by
OutBack Power), see the Radian product literature. For menu navigation, see the system display product literature.
This document contains hyperlinks and QR codes leading to the product literature at www.outbackpower.com.
MATE3s
System
Display and
Controller
HUB 10.3
Communications
Manager
IMPORTANT:
GS Load Center
(GSLC)
life support equipment.

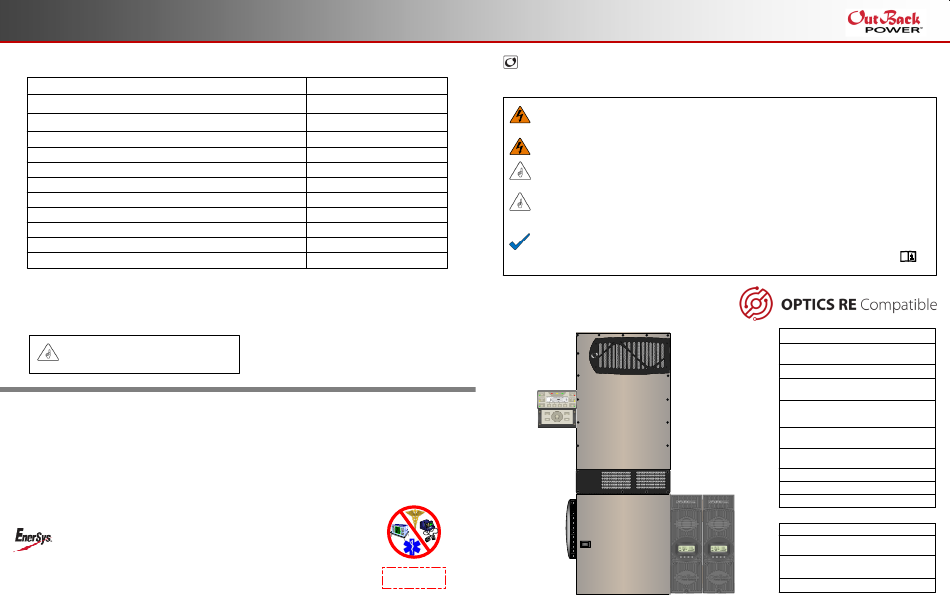

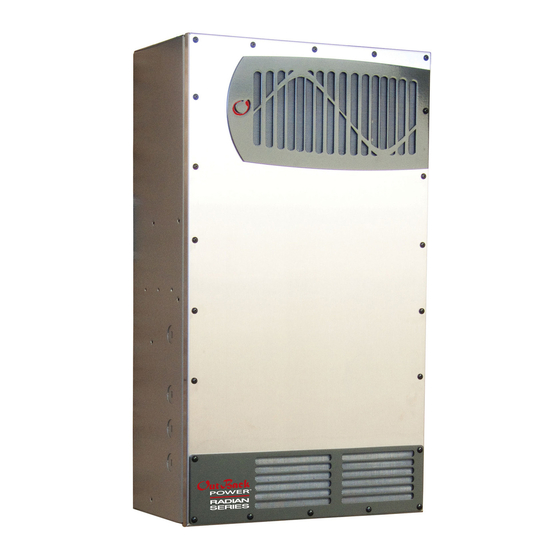

Radian Inverter/Charger
FM60 Charge
Controllers
(×2)
Major Components
GS7048E
Radian
Inverter/Charger GS3548E
Battery Bank
Radian System Products
(optional; depicted as being installed)
GSLC175-PV-230
GS Load Center GSLC175PV1-230
(both depicted)
System Display
MATE3s™ depicted
and Controller
Communications
HUB10.3™ depicted
Manager
Charge Controller FLEXmax 60™ depicted
FLEXnet DC™ Monitor (FN-DC)
Remote Temperature Sensor
Other Components
Utility Grid or
AC Source
AC Generator
Main Electrical Panel and
Distribution Subpanel (Load Panel)
Photovoltaic (PV) Array and Combiner
