Summary of Contents for Edin Univox IR 1411

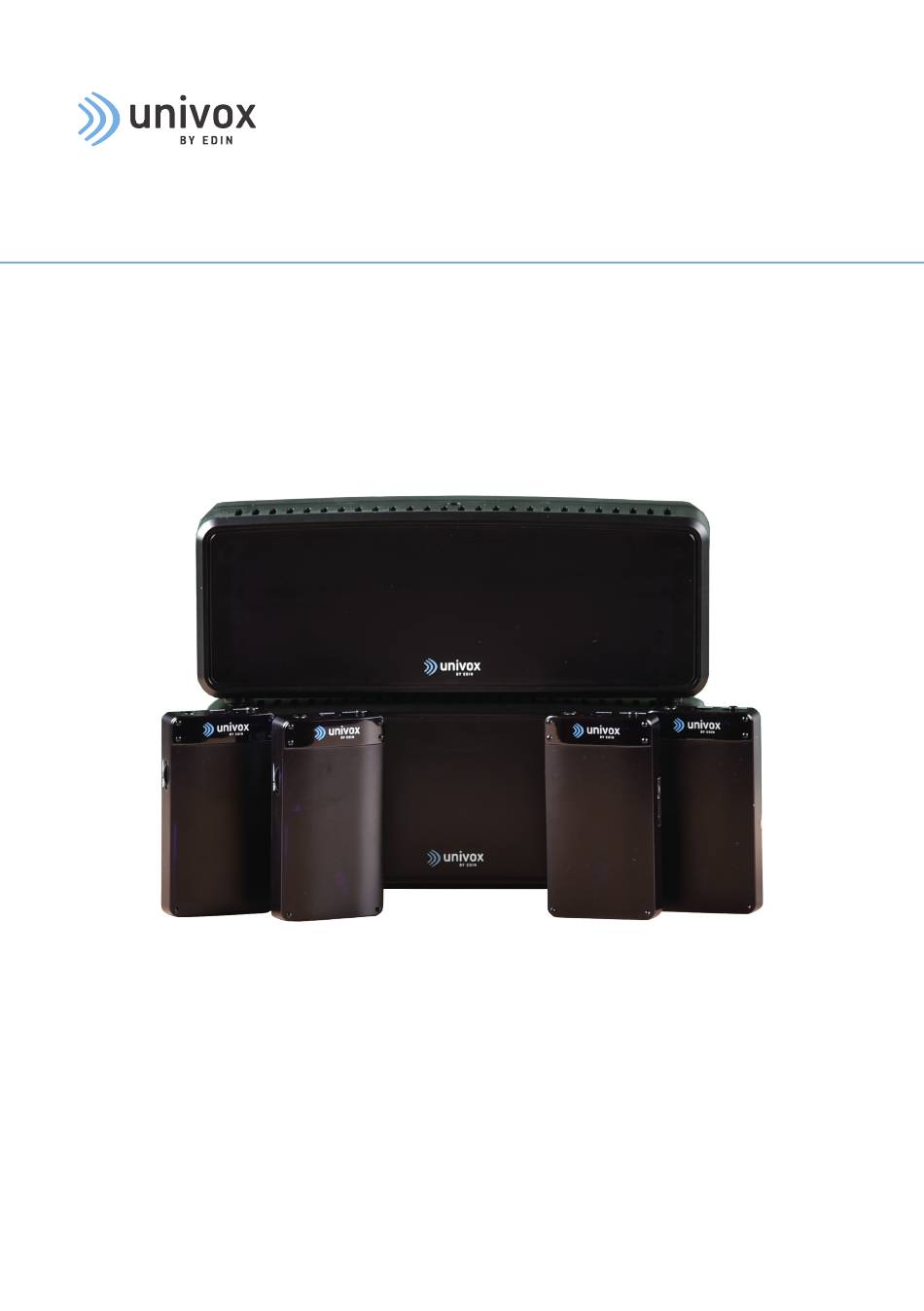

- Page 1 Univox® IR-System Infrared Communications System User Guide IR 1411 Part no. 650300 IR 1211 Part no. 650302 IRR-1 Part no. 650301...
-
Page 2: Table Of Contents
Contents Introduction ............................... 3 Included in the package ......................... 3 IR 1411 Product overview ..........................4-5 Placement ............................6 Operating instructions ........................6 Coverage ............................... 6 Technical data ............................. 7 IR 1211 Product overview ..........................8-9 Connecting multiple units ......................... 9 Placement ............................10 Coverage .............................10 Operating instructions ........................10 Technical data ...........................11... -
Page 3: Introduction
Introduction Thank you for choosing a Univox® product. We hope you will be satisfied! Univox® IR-System is a compact IR system for small to medium size venues consisting of a transmitter, pocket receivers and optional extenders. The sleek low-profile design is ideal for installation in boardrooms, houses of worship, cinema/theatres, courtrooms, nursing homes, auditoriums and class rooms etc. -
Page 4: Product Overview
Product overview IR 1411 IR 1411 XLR – Balanced Line input Header DC input/output Power Save-mode switch DC power supply input – 24 VDC Balanced/unbalanced switch RF Out – BNC jack 3.5 mm – Line 1 & 2 – Unbalanced line input 10. - Page 5 Header DC input/output IR 1411 24 VDC – Connection of external 24 VDC supply voltage. Note: AC adapter is not connected. 12 VDC – Power supply to external emitter panel DC power supply input Note: Univox supplied power adapter only. RF Out –...
-
Page 6: Placement
Placement IR 1411 The unit is supplied with a universal mounting kit allowing for easy and quick installation. Select an appropriate mounting location, considering the shape and size of the room, to ensure optimal coverage. Recommended placement for best performance is above 2 m height, slightly angled (10-30 degrees) toward listening audience. -
Page 7: Technical Data
Technical data IR 1411 IR 1411 Modulation FM, + 35 kHz nominal + 50 kHz peak IR Light Wavelength 870 nm Carrier Frequency 2.3 MHz, 2.8 MHz or Stereo: 2.3 MHz (Left) and 2.8 MHz (Right) Pre-emphasis 50 µS Audio Frequency response 40 Hz - 8 kHz (±3 dB) Total Harmonic Distortion <... -
Page 8: Product Overview
Product overview IR 1211 IR 1211 RF IN – BNC input Indicator light switch RF OUT – BNC output 12-24 V Power switch ON/Auto 24 VDC / 2 A power input RF IN – BNC input Daisy-chain signal input, to be connected from IR 1411 RF OUT –... -
Page 9: Connecting Multiple Units
Connecting multiple units IR 1211 IR 1411 can drive 4 additional IR 1211 emitters with max 30 m of RG58U cable between each unit through the RF IN (1.) input and RF OUT (2.) output. Each unit needs to be individually powered by a PSU. -
Page 10: Placement
Placement IR 1211 The unit is supplied with a universal mounting kit allowing for easy and quick installation. Select an appropriate mounting location, considering the shape and size of the room, to ensure optimal coverage. Recommended placement for best performance is above 2 m height, slightly angled (10-30 degrees) toward listening audience. -
Page 11: Technical Data
Technical data IR 1211 IR 1211 Modulation IR Light Wavelength 870 nm Modulated AF input 50 mV - 3 V/5 Ω Carrier frequency response 94 kHz - 4 MHz Input connection BNC 50 Ω Output connection BNC 50 Ω Threshold for auto on/off 50 mV Supply voltage (nominal) 24 VDC... -
Page 12: Product Overview
Product overview IRR-1 IRR-1 1. Channel selection switch 6. Power on/off LED 2. Lanyard clip 7. 3.5 mm output jack 3. Squelch on/off switch 8. Volume control wheel 4. Micro USB charging port 9. Belt clip 5. Charging LED... - Page 13 Channel selection switch IRR-1 The receiver operates on 2.3 MHz and/or 2.8 MHz frequency. Select between 2.3 MHz and 2.8 MHz for mono, or ”S” for both 2.3/2.8 MHz stereo operation. Lanyard clip Attach the lanyard to wear the unit around your neck – recommended for best performance (free field).
-
Page 14: Operating Instructions
Operating Instructions IRR-1 1. Insert Earphone or Neck Loop 3.5mm plug into the receiver’s headphone output jack (7). 2. A green LED (6) indicates once the plug has been connected properly and the unit is switched ON. 3. Place the receiver around the neck at chest height (pendant style) by using the lanyard (2), or attach it to a pocket using the clip on the back of the unit (9), with the front facing away from the body. -
Page 15: Technical Data
Technical data IRR-1 IRR-1 Modulation FM, 1 kHz ± 75 kHz IR Light Wavelength 850 nm Carrier Frequency 2.3 MHz, 2.8 MHz or Stereo: 2.3 MHz (Left) and 2.8 MHz (Right) Audio Frequency response XLR in: 160 Hz-13 kHz (±3 dB) RCA in: 20 Hz-13 kHz (±3 dB) Total Harmonic Distortion <... -
Page 16: Troubleshooting
Troubleshooting IR 1211 Transmitter has no power • Verify that the power supply is connected properly, (red/amber LED on the transmitter should be lit, depending on the mode selected). • Check the power adapter function, (green LED=ON). Replace if faulty. No audio or poor audio quality (distortion) •... - Page 17 Troubleshooting IRR-1 The receiver has no power • Make sure the receiver is fully charged. Verify that the 3.5mm plug is inserted properly into the headphone jack and the ON LED is illuminated. Note: IRR-1 receiver is equipped with a rechargeable, non-removable Li-Polymer battery. In case of battery failure do not attempt to replace or repair it.
-
Page 18: Maintenance
In case of failure, if the product should not work properly after the troubleshooting has been performed, please contact your local distributor for further instructions. Refer all servicing to qualified service personnel only. If the product is sent to Bo Edin AB, please enclose a filled Service Form, www.univox.eu/support. -
Page 19: Notes
Notes... - Page 20 Notes (Univox) Bo Edin AB +46 (0)8 767 18 18 Stockby Hantverksby 3, info@edin.se SE-181 75 Lidingö, Sweden www.univox.eu Hearing excellence since 1965...
