Summary of Contents for Xpect Solutions Inc Lid Press

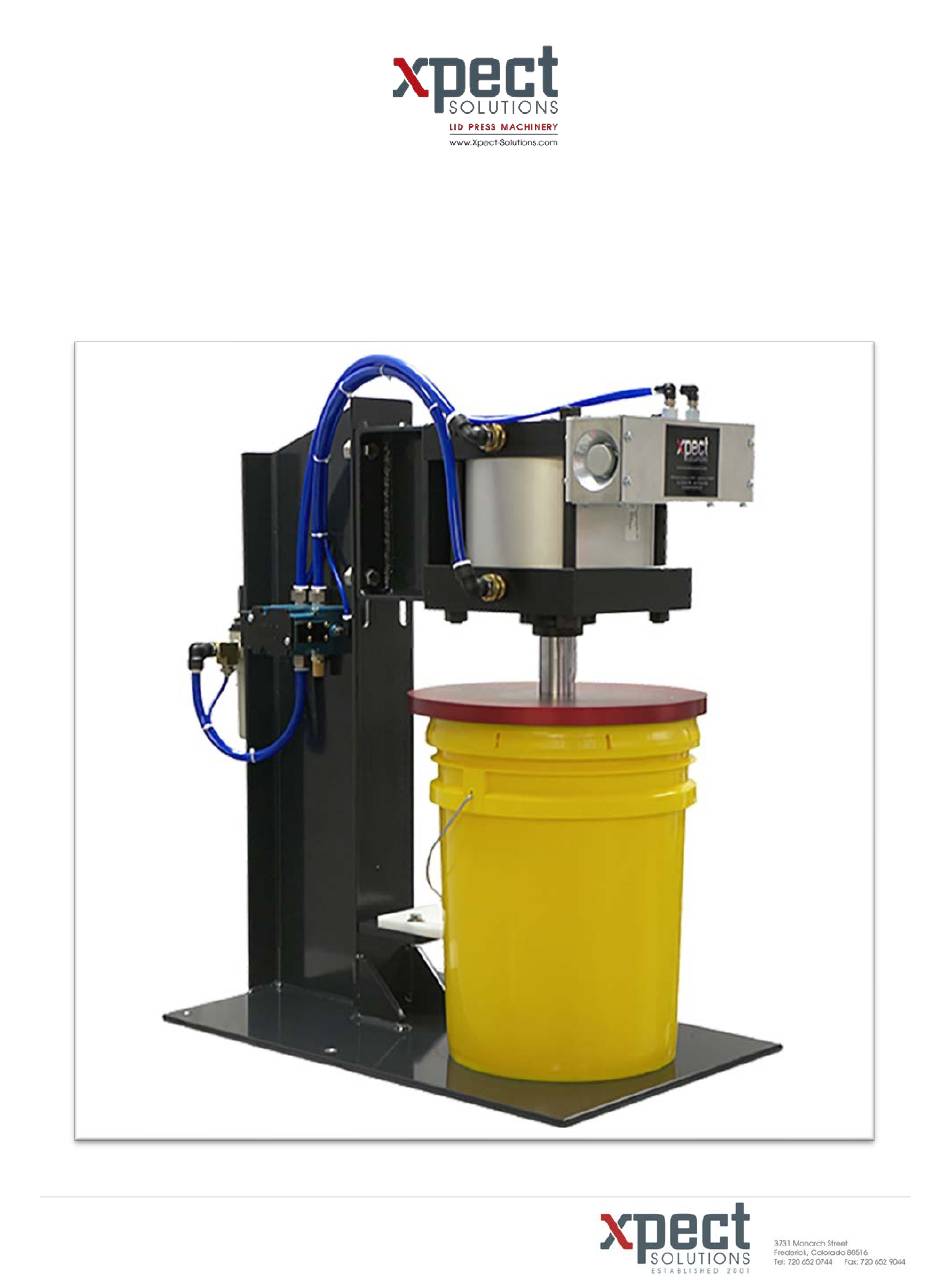

- Page 1 Operation and Setup Manual for Xpect Solutions Inc Lid Press Machinery P a g e...
- Page 2 Operation and Setup Manual for Xpect Solutions Inc Lid Press Machinery Includes instructions for: Small Pail Tabletop Lid Press Tabletop Lid Press Stand Up Lid Press P a g e...

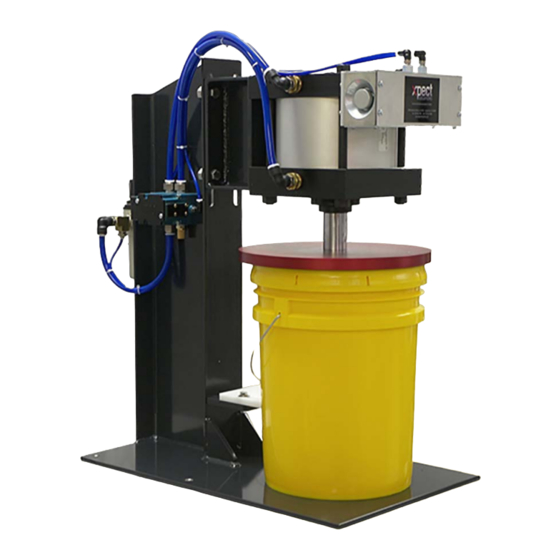

- Page 3 (5-Gallon Bucket Stand up Fixed Stainless-Steel model) P a g e...
- Page 4 >Periodic meetings, reviewing operating guidelines, signed by all of the attending personnel. The proceeding outline, and the following information laid out in this Operational Manual for Xpect Solutions Inc is intended to be a guide only, and is not meant to encompass all issues that may need to be addressed for your...
- Page 5 Lid Press Machinery Precautions Secure the Machine Assure the Lid Press Machine is in a secure level position for operation. Movement of the machine during operation could result in injury. Put on appropriate Personal Protective Equipment (PPE) At minimum, wear safety glasses. Your worksite may require additional PPE, such as steel toe shoes, gloves, etc., observe your workplace rules.
- Page 6 Lid Press Operation Operation of the Press is simple in nature. Each Lid Press Machine is equipped with a 2-Hand Control. In order to actuate the Press, BOTH buttons MUST be pressed at the EXACT same time to lower the Press Head. Buttons are located on each side of the 2-hand control in the center of the yellow ends.
- Page 7 Lid Press Operational Safety Pinch Points There are a number of potential pinch points at different areas; Pinch Point Stickers have been placed at areas around the machine to indicate the hazard area. Correct 2-Hand Operation of the Machine will assure hands are in the proper place during operation of the press.
- Page 8 CAUTION: Potential Pinch Points Areas are Between the Press Plate and the Bucket Lid. (Potential Pinch Point) Between the Press Plate and the Cylinder Body. (Potential Pinch Point) P a g e...
- Page 9 Lid Press Setup The Lid Press should be set up for your Bucket size when it ships from Xpect Solutions Inc, but from time-to-time adjustments are required to be made to assure the proper closure of Lid to Pail. Pail Stop The Pail Stop is the location at the base or midpoint of the vertical I-beam.
- Page 10 Pail Stop Adjustment Loosen the two Hex Head Cap Screws and slide the White UHMW Bracket forward or back until your Bucket position had the pail centered under the press disk. Re-tighten the screws. Press Head Adjustment With air connected to the Press and the Press Plate retracted, place an empty bucket with NO LID under the Press Head.
- Page 11 To Adjust the Press Head for a NEW Pail Closure Position: CAUTION: Only qualified service or maintenance personnel should attempt this adjustment. With AIR connected to the Press, place an empty bucket with A FULLY PRESSED LID under the Press Head. Remove the Main Air Line from the Air Regulator from the back of the machine.
- Page 12 (Press Head Support Beam) Do Not remove or loosen the bolts attached to the Air Cylinder as shown on the left (above). Using the proper size, open end wrench or socket combination, loosen the 4 ½-13 bolts that support the Press Head as shown on the right as indicated in the photo above. CAUTION must be used to only loosen these bolts, as the Press Head is HEAVY and...
- Page 13 Burper Each Press has the option for a Burper to be installed. Installation and adjustment are an easy as threading a bolt into the provided threads and setting the height to allow the Burper to NOT puncture the Bucket Lid while pressing the lid on. (Burper as seen from below) 13 | P a g e...
- Page 14 Quick Exhaust The main Air Cylinder is equipped with a quick exhaust fitting and a check valve to allow for the fast release of air from the Air Cylinder during the closure cycle. No adjustments are typically necessary. The check valve will open when air is applied to the machine and close when air is removed from the machine.
- Page 15 Pail / Bucket Adapter Pail adapters are used when multiple size pails are run on one machine and size conversion is required from the larger pails size to the smaller pail size. Pail Adapters are equipped with 4 threaded bolts which are inserted up through 4 holes in the Press Plate.
- Page 16 For Service or Operation Questions 16 | P a g e...
