Summary of Contents for mu SPACE CORP Portable Power Stations

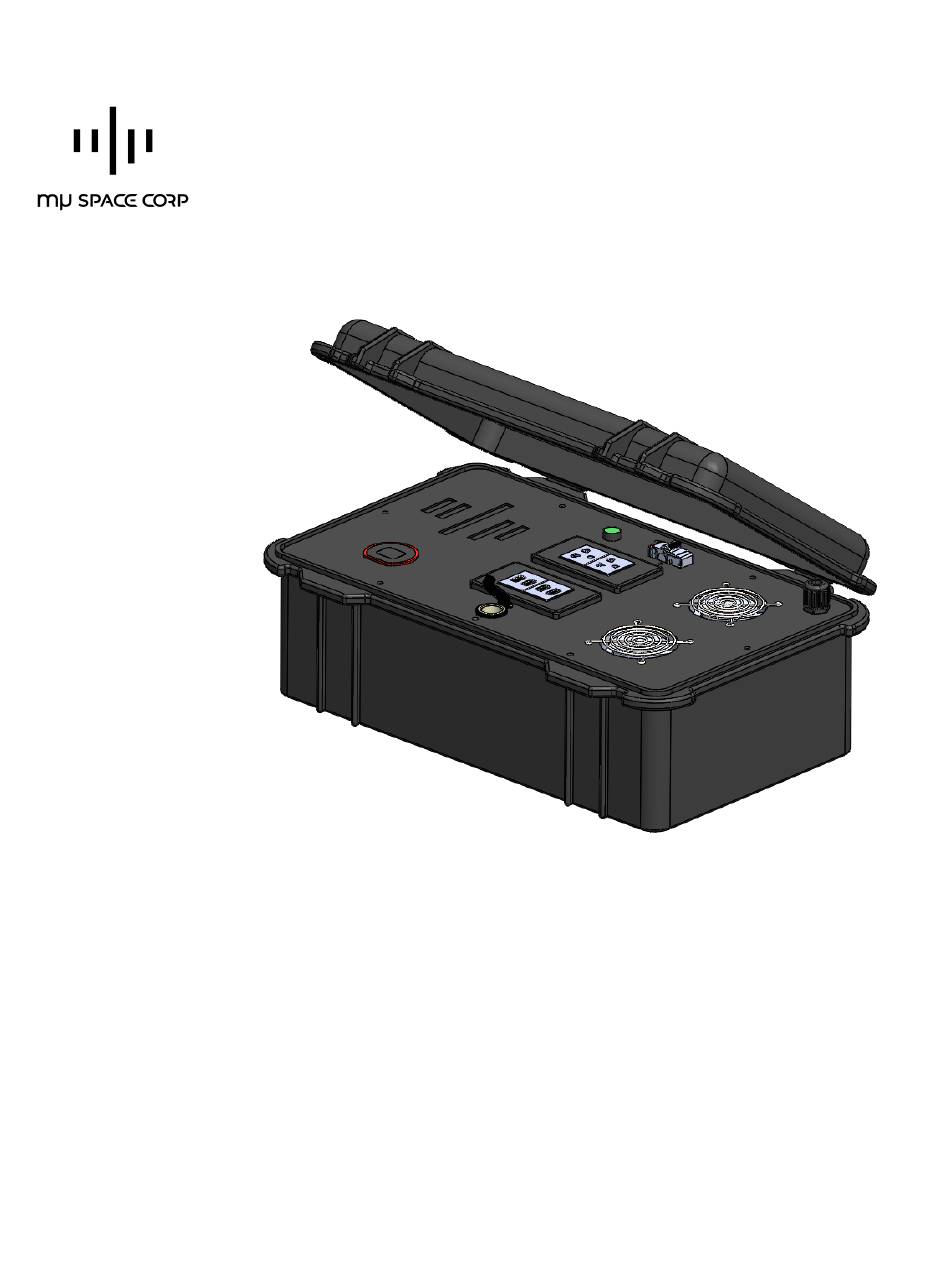

- Page 1 Portable Model Military User Manual...
-
Page 2: Table Of Contents
Table of Contents Portable Model Military User Manual Table of Contents 1. Safety Information 1.1 Safety Instructions 1.2 Safety Precautions 2. Product Overview 2.1 Device Overview 2.2 Technical Specifications 2.3 User Guide 2.4 Wiring Diagram 2.5 Mechanical Specifications 3. Installation 3.1 Installation Precautions 3.2 Installation Precautions 3.3 Wiring... -
Page 3: Safety Information
From outdoor camping to back up for home use, get convenient power comfortably without worries of noise, fumes, and the hassle of a traditional gas generator. Portable power stations keep everything from camping devices to cooking equipment powered and running. They charge by AC and are conveniently portable on the go, making them the optimal portable power stations for outdoor use. - Page 4 Symbols Descriptions The equipment must be grounded, and as the DC power supply is ● connected, be sure to ground the system reliably, and take care not to reverse the positive wire and negative wire. The Portable has a high voltage inside. Therefore, to ensure personal ●...
-
Page 5: Product Overview
2. Product Overview 2.1 Device Overview Pilot Lamp Circuit Breaker Charging Plug Axial Fan USB - A Outlets Replacement Lighter Power Outlets LCD Display... -
Page 6: Technical Specifications
2.2 Technical Specifications Technical Specification Unit Value Dimension (WxLxH) 351 x 559 x 229 General Information Weight Degree of Protection IP67, MIL-STD Case Material Polypropylene ํ C Operating Charge Temperature 0 to 15 (Max charge 0.5C) Temperature 15 to 45 (Max charge 1C) ํ... -
Page 7: User Guide
2.3 User Guide The Portable is connected to the Load/Supply via electrical wire. ● You can charge in 220-240 Vac 50Hz ● The Portable can support DC and AC load ● Getting Started with Portable You can click the LCD display button that will show the percentage of battery remaining. It needs to be charged if the battery remaining percentage is below 20. -
Page 8: Wiring Diagram
2.4 Wiring Diagram Wiring diagram of Portable MIL... -
Page 9: Mechanical Specifications
2.5 Mechanical Specifications Portable MIL with side, front and top views (All unit in mm) -
Page 10: Equipment List
3. Equipment list Description Quantity Axial Fan Battery Cell Battery Management System (BMS) module Case Charger Replacement Lighter Circuit Breaker Din Rail Electric Wire Inverter Pilot Lamp Plug Plug Socket Power Outlets LCD Display Terminal Block USB-A Outlets User Manual... -
Page 11: Usage Restrictions
4. Usage Restrictions Do not remove, open, or shred secondary cells or batteries. ● Do not bring the cell or battery near heat or fire, avoid storing in direct sunlight. ● Do not short-circuit the shell or battery. Do not carelessly store neglected cells or batteries ●... -
Page 12: Disclaimer
5. Disclaimer This document has been carefully prepared by mu Space. However, we assume no liability nor responsibility for the accuracy or completeness of the information provided within. This document's information is updated and modified on a regular basis to reflect current hardware and software status.
