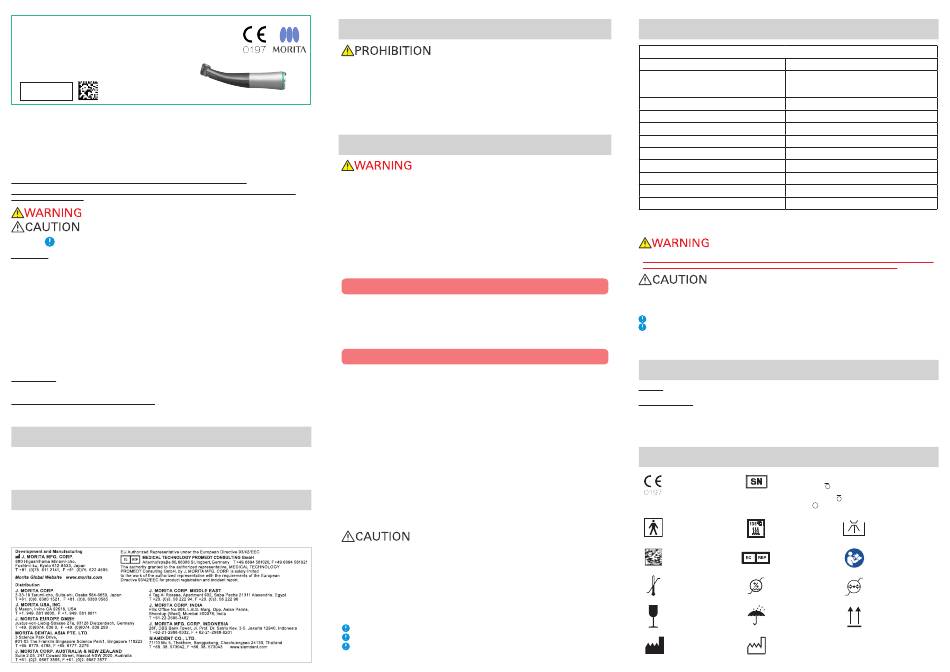

TORQTECH CA-10RC-ENDO Operating Instructions

Operation 1/4 2018-03-21 Pub. No.: L111-62001-500
TORQTECH

Operation Instructions

CA-10RC-ENDO
Geared Contra Angle Handpiece
ENDO
Thank you for purchasing the TORQTECH geared contra angle handpiece.
For optimum performance, efficiency, avoiding hazards, preventing patient injury, and safety, read the instruction
manual thoroughly before use, and follow all cautionary remarks and usage instructions. Keep this manual in a
handy place for ready reference.
The user (e.g., healthcare facility, hospital, clinic, etc.) is responsible for supervising the use and maintenance of medical devices.
This instrument must not be used by anyone other than a dentist, doctor or other legally qualified professional.

Eligible Patients for the TORQTECH:

Children to elderly who can stay still during treatment. A person's weight, gender, and nationality are not considered.
This instrument must not be used for any purpose other than the provision of dental treatment.
The following symbols and expressions indicate the degree of danger and harm that could result from ignoring the
instructions they accompany:
This warns the user of the possibility of serious injury or death to the patient, damage or complete
destruction of the instrument or other valuable property, and fire.
This warns the user of the possibility of slight or moderate injury to the patient.
This alerts the user of important points concerning operation of the instrument or the risk of dam-
age to it.
Disclaimer
J. MORITA MFG. CORP . will not be responsible for the following matters, even during the warranty period.
1. Malfunction or damage resulting from repairs made by personnel not authorized by J. MORITA MFG. CORP .
2. Any unauthorized modifications to its products
3. Malfunction or damage resulting from maintenance or repairs carried out using parts or components other than those specified
by J. MORITA MFG. CORP .
4. Malfunction of or damage to MORITA products caused by products made by other manufacturers unless they were supplied by
J. MORITA MFG. CORP .
5. Malfunction or damage resulting from failure to observe the safety precautions or operating procedures described in these
Operating Instructions
6. Malfunction or damage resulting from ambient conditions that do not conform to the operating conditions specified in these
Operating Instructions, such as an improper electrical power supply or installation environment
7 . Malfunction or damage resulting from a natural disaster, such as a fire, earthquake, flood or lightning
J. MORITA MFG. CORP . maintains supplies of service parts for 10 years after discontinuation of their production.
For the duration of this period, we will supply replacement parts and be able to repair the product.
* Replace parts as necessary based on the degree of wear and length of use.
* Motor usage and handling: Read all instruction materials thoroughly before use and follow all cautionary remarks and usage
instructions.

In Case of Accident

If an accident occurs, this instrument must not be used until repairs have been completed by a qualified and trained technician
authorized by the manufacturer.

Standards and Procedures for the Disposal of Medical Devices

If there is a possibility that a medical device is contaminated, the dentist or doctor responsible for the patient's treatment must
confirm that it is uncontaminated, and must then have it disposed of by a healthcare facility or an agent licensed and qualified to
handle standard industrial waste and industrial waste requiring special treatment.

Maintenance and Inspection

* This instrument should be inspected every 3 months.
* Maintenance and inspection are generally considered to be the duty and obligation of the user, but if, for some reason, the user
is unable to carry out these duties, the user may rely on a qualified medical device serviceman. Contact your local dealer or J.
MORITA OFFICE for details. Inspect the following items: 1. Micromotor connection. 2. Bur and file insertion. 3. Handpiece rota-
tion. 4. Overheating. 5. Canal length meter display.
* For repairs, contact your local dealer or J. MORITA OFFICE.

Service and Contacts

The TORQTECH may be repaired and serviced by:
• The technicians of J. MORITA's subsidiaries all over the world.
Technicians employed by authorized J. MORITA dealers and specially trained by J. MORITA.
•
Independent technicians specially trained and authorized by J. MORITA.
•
For repairs or other types of service, contact your local dealer or J. MORITA OFFICE.

Prohibitions

: This indicates when not to use the device.
• Do not use the TORQTECH on patients who have implanted pacemakers or defibrillators.
• No modification of the TORQTECH is allowed.
• Do not perform maintenance while using the TORQTECH for treatment.
• Do not use the wireless transmission devices listed below in the examination area:
1. Cell phone terminals.
2. Wireless transmitting devices such as ham radios, walkie-talkies, and transceivers.
3. Personal Handy-phone System (PHS)
4. Routers for intra-building paging systems, wireless LAN, cordless analogue telephones, and other electric
wireless devices.

Warnings and Cautions

• The maximum input rotation for the CA-10RC-ENDO (speed reduction model for endodontics) is 20,000
rpm (2,000 rpm as file rotation). Do not input more than 20,000 rpm. Otherwise, this may result in over-
heating the head or the handpiece could be damaged.
• The head heats up if it runs at 2,000 rpm. Do not use it for more than 3 minutes at 2,000 rpm.
• Do not force the handpiece inside the oral cavity if the mouth is not open wide enough. It could contact
the opposing tooth, and inadvertently press the push button. Running the handpiece with the push button
held down could cause the push button to overheat and damage the opposing tooth. It could also burn
the patient or the dentist and the bur or file could come out.
• After maintenance, do not cover the handpiece with gauze when operating it to remove excess oil. If the
push button is inadvertently held down, the head could overheat or the handpiece could break down.
• In cases of tooth extractions, split teeth, endodontic treatment etc. or incision or open wounds in soft
tissue, the tip air must be turned off to avoid causing a subcutaneous emphysema due to emitted air from
the handpiece.
• The CA-10RC-ENDO must not be connected to or used in combination with any other apparatus or system.
It must not be used as an integral component of any other apparatus or system.
File Usage
(Nickel-Titanium files are easily broken. Keep the following points in mind to minimize file breakage.)
• Never use excessive force to insert the file.
• Never use excessive force to advance the file down the canal. (Using excessive force could break a Ni-Ti
file.)
• All files eventually break due to metal fatigue. Replace old files in a timely manner.
• Never use stretched, deformed or bent files.
• Do not get chemical solutions such as FC or hypo-chlorite on the head or contrary electrode. These could
cause inflammation.
Using the Endodontic Contra Angles with Units and Micromotors that Have Canal
Measurement Capability
• Before use, read all relevant instructions that come with the dental treatment unit thoroughly.
• Before use, touch the file in the CA-10RC-ENDO with the contrary electrode on the probe cord connected to
the dental treatment unit, and make sure all the bars in the meter for the measurement display on the chair
light up. If they do not, do not use the handpiece. Something is probably wrong with the display.
• Some files do not work with the built-in electrode inside the CA-10RC-ENDO. Be sure to test the hand-
piece as described above.
• The built-in electrode will work for only some types of files.
It will not work if there is no conductivity between the file and shank or if the shank does not conduct
electricity. Do not use these types of files.
• If a file will not work with the built-in electrode inside the CA-10RC-ENDO, you can install a separate
external file electrode that will work.
• Canal measurement cannot be performed with contra angles and micromotors that do not have this
capability. For canal measurement, make sure the dental treatment unit, micromotor and CA-10RC-ENDO
all have this capability.
• Accurate measurement cannot be performed if the built-in or external file electrode is worn out.
Replace the electrode with a new one.
• If the dental treatment unit's canal length indicator measurement readings are unstable, stop using the
handpiece immediately and replace the built-in electrode or external file electrode.
• When using canal measurement functions, do not operate this handpiece faster than 1,200 rpm. The
meter may be somewhat erratic.
• If a chemical solution such as sodium hypochlorite gets on the head, wash it off immediately. Otherwise,
metal contacts could be corroded and prevent accurate measurement of the canal.
• Always use a rubber dam for preparing root canals.
• Wear safety glasses or similar eye protection to prevent eye injury from cutting debris.
• Run the handpiece outside the oral cavity before using it and make sure the bur or file does not wobble
and that it runs at the correct speed and in the right direction.
• If a bur or file comes out during use, stop using the handpiece immediately and have the handpiece
repaired.
• Do not press the push button until the handpiece comes to a complete stop. Otherwise, the inside of the
button could wear out and make it hard to insert and remove burs or files.
• If the handpiece makes abnormal noise, vibrates too much, or overheats, take out the bur and replace it
with a new one. If the same problem persists, have the handpiece repaired.
• Follow all recommendations of the bur manufacturer concerning bur rotation speed and direction.
Wait for the handpiece to come to a complete stop before inserting or removing burs or files.
Wait for the bur or file to stop rotating before taking it out of the oral cavity.
Remove burs and files before returning the handpiece to its holder in the dental treatment unit;
otherwise there is a risk of injury or damage.

Specifications

[Specifications may be changed without prior notice due to improvements.]
Geared Contra Angle Handpiece Attachment
Type
The TORQTECH transmits rotation of the motor to
Indications for Use dental burs or reamers which cut or grind teeth or
dentures with the same or transformed rotation.
Rotation Speed Ratio
Maximum Motor Speed [rpm]
Length [mm]
Weight [g]
Usable Burs *1
Chuck Type
Connectable Micromotors
Usable Shank Length for Burs and Files [mm]
Usable Bur Diameter [mm]
*1 Use burs that conform to ISO 1797-1
*2 To use canal measurement function with the CA-10RC-ENDO, make sure that both the treatment unit and micromotor
have canal measurement capability of the CA-10RC-ENDO.
• Never use the following types of burs and files; they could come out and injure the patient or be swallowed:
Those which do not conform to ISO standards. Those with scratched or bent heads or shanks. Those which are rusty,
chipped or broken. Those which have been modified or altered such as those having shortened shanks.
• Even new burs and files are sometimes poorly balanced; if a bur or file makes a loud, metallic noise
during rotation, stop using it.
• Spray and tip air are not emitted.
Always use burs and files with clean shanks.
Always carefully remove all cleaning fluids before inserting a bur into the chuck; some cleaning fluids are corrosive
and can ruin the chuck.
* If a dirty bur or file or ones with cleaning fluid have been inserted by mistake, contact your local dealer or J. MORITA
OFFICE. to have the handpiece inspected.

Operating, Transport and Storage Environments

Operating Temperature: +10°C to +35°C (+50°F to +95°F); Humidity: 30% to 80% (without condensation);
Atmospheric Pressure: 70 kPa to 106 kPa
Transport and Storage Temperature: -10°C to +70°C (+14°F to +158°F); Humidity: 10% to 85% (without condensation);
Atmospheric pressure: 70 kPa to 106 kPa
* Do not expose the handpiece to direct sunlight for an extended period of time.
* If the handpiece will not be used for an extended period of time, store it in a clean, dry place after autoclaving it.
* The useful life of the TORQTECH is 7 years (based on self-certification) from the date of shipment provided it is
regularly and properly inspected and maintained.

Symbols

CE(0197) marking
Serial number E.g., G00001
Conforms with the European
Directive, 93/42/EEC.
E.g., L111G00001K
CE marking
Conforms with the European
Directive, 2011/65/EU.
1
Autoclavable up to +135°C
Type BF applied part
(+275°F)
EU authorized representa-
GS1 DataMatrix
tive under the European
Directive 93/42/EEC
Temperature limitation
Humidity limitation
Fragile Keep away from rain
Manufacturer Date of manufacture
CA-10RC-ENDO
10 : 1 (reduction)
20,000
Approx. 94
Approx. 55
Shank Type 1 (CA)
Push Button
*2
TR-SII-R-O, TR-S3-R-O
Minimum 12
2.334 to 2.350
[Some symbols may not be used.]
1
1
Year of Manufacture (G: 2018, H: 2019...)
Supports high-temperature
cleaning and disinfection
Refer to instructions for use
Atmospheric pressure
limitation
This way up
