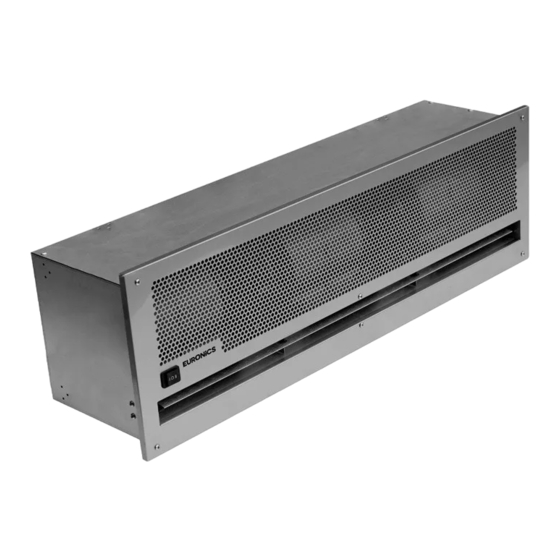

Summary of Contents for Euronics RAC
- Page 1 User Manual & Instruction Air Curtain...
- Page 2 5. Ensure that the fan is switched off from the supply mains before removing the guard. PRODUCT OVERVIEW Our company produces the RAC series air curtain, which is relies on the company flow survey center to ventilate domain many year accumulations the core technologies, in absorbs the domestic and foreign advanced experiences fully in the foundation, develops new generation sequence product.
- Page 3 SELECT MODEL Selecting the model mainly basis the width and height of the door, the length of air curtain and the wind wheel diameter of air curtain. General speaking, the width of door should be shorter than the length of air curtain, please use two or more assemblies: If the door is higher, please select the bigger diameter of wheel air curtain.
- Page 4 INSTALLMENT The external dimensions and install the size Method 1: MODEL N.W(kgs) RAC3 18.5 RAC4 1220 298.8 1200 244.8 232.8 22.0 RAC5 1520 1240 1500 28.0 Method 2: MODEL N.W(kgs) RAC3 18.5 RAC4 1220 1254 1200 1284 224.8 232.8 22.0 1584 RAC5 1520...
- Page 5 The air curtain had already designated on the best installment hole on the bottom for the user. Please loosen the binding screw. separates the bottom from the box body, the position must be accurate and be reliable, the method of installation to be as follows: 1.
- Page 6 THE CONTROL AND USE OF AIR CURTAIN 1.Installation of flange connecting valve is on diagram (Picture 6), It is controlled by outside switch. if connected the outside knob. it will achieve the stepless speed. air curtain sockets switch 2.With key svntch Iwo speed air curtain control circurt (Picture 7-1. 7-2, 7-3. 7-4) Please press LO or HI, then obtains the appropriate air speed, presses the OFF key to stop grounding (E) blue...
- Page 7 yellow/green yellow/green grounding(E) blue blue H brown Thermal protector (inside the motor) blue blue brown blue brown red black black L yellow dry-road tube blue Door Connect yellow yellow yellow brown brown Connection diagram Picture7-4 Picture7-5 THE TECHNOLOGY PARAMETER Model Input Voltage Noise...
- Page 8 PRODUCT WARRANTY 1.This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 2.Children should be supervised to ensure that they do not play with the appliance.
