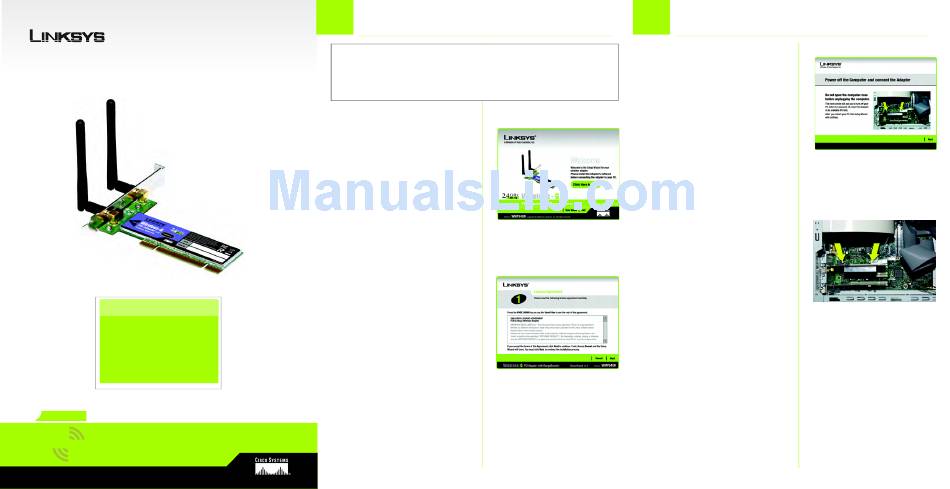

Linksys WMP54GR Quick Installation

®
A Division of Cisco Systems, Inc.
Package Contents

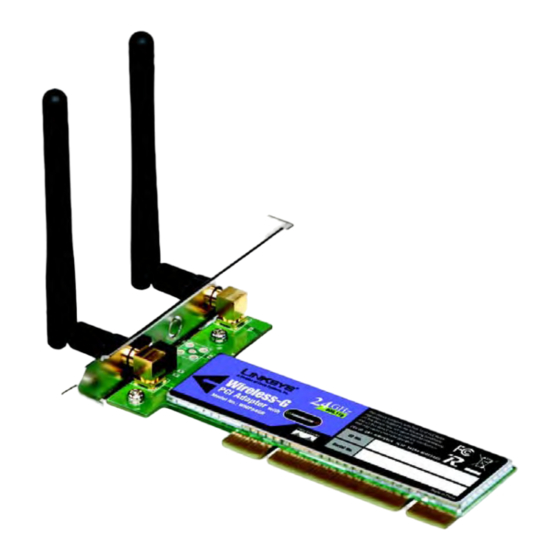

• Wireless-G PCI Adapter with RangeBooster
• Two Antennas
• Setup CD-ROM
• User Guide on CD-ROM
• Quick Installation
2.4
GHz
Wireless-G
802.11g
PCI Adapter
with RangeBooster
Wireless
Model No.
WMP54GR
Model No.
1
Begin Installation
IMPORTANT: Do not connect the Adapter to Your PC
until you are instructed to do so in Step 2 or the
Adapter will not install correctly.
The PCI Adapter with RangeBooster
is installed and set up using the
Setup Wizard that comes on the CD
enclosed.
A
To begin, insert the Setup
Wizard CD-ROM into your CD-
ROM drive. The Setup Wizard
should run automatically, and
the Welcome screen should
appear.
B
To install the Adapter, click
Click Here to Start on the
Welcome screen.
C
After reading the License
Agreement, click Next to
continue the installation and
Windows will begin copying the
files onto your PC.
D
The Setup Wizard will now
prompt you to connect the
Adapter to your PC's USB port.
Proceed to Step 2.
Quick Installation
2
Now that the Setup Wizard has
prompted you to connect the
Adapter, follow the instructions
below.
A
Before connecting the PCI
Adapter to your PC, turn off
your desktop PC and unplug it.
B
Open your PC case and
locate an available PCI slot on
the motherboard. Check with
your computer manufacturer
for instructions.
C
A
Slide the PCI Adapter into the
PCI slot. Make sure that all of its
pins are touching the slot's
contacts. You may have to
apply a bit of pressure to slide
the adapter all the way in. After
the adapter is firmly in place,
secure its fastening tab to your
PC's chassis with a mounting
screw. Then, close your PC and
plug it back into the power.
D
Attach the external antennas
to the adapter's antenna ports.
Bend the antennas up ninety
C
degrees, then spread them
apart ninety degrees, so they
make a V or L shape.
E
Power on your desktop PC.

Connect the Adapter

Connecting
the Adapter
Adapter
Installation Example
Proceed to Step 3.
