Manual VIPA HMI About this manual About this Manual The manual describes the Touch Panel TP 605CQ from VIPA. Here you find detailed descriptions of the Touch Panel beside a product overview. You get information about structure, project engineering and operation of the Touch panels from VIPA.
Page 6
About this manual Manual VIPA HMI Objective and This manual describes the Touch Panels from VIPA. The manual consists of chapters. Every chapter provides the description of one specific topic. contents It describes the installation, project engineering, usage and the technical data.
Safety information Safety information The Touch Panels are constructed and manufactured for: Applications conforming with • VIPA CPUs 11x, 21x, 31x, 51x and S7-300/400 from Siemens specifications • communication and process control • general control and automation applications • industrial applications •...
Page 8
All manuals and user guides at all-guides.com Safety information Manual VIPA HMI HB160E - TP - RE_62F-FCB0 - Rev. 11/14...
During this chapter you get hints for deployment of the Touch Panel Overview TP 605CQ from VIPA. Besides of a description of the single components of the Touch Panel, you will also find the dimensions that are required for the installation. The chapter closes with the technical data.
All manuals and user guides at all-guides.com Chapter 1 Hardware description Manual VIPA HMI Safety information for Users VIPA modules make use of highly integrated components in MOS- Handling of technology. These components are extremely sensitive to over-voltages electrostatic that can occur during electrostatic discharges.

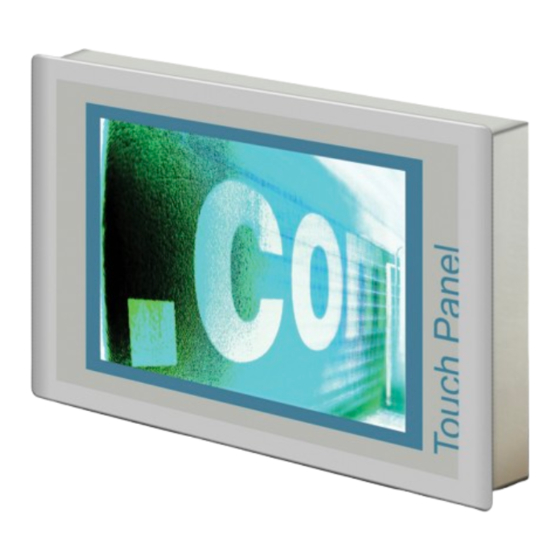

The Touch Panels allows you to visualize and alter operating states and General recent process values of a connected PLC. TP 605CQ The VIPA Touch Panel is a compact and modular embedded PC based on ® ® Windows CE. Besides of the extensive Windows...
[3] Display with touch sensitive area (touch screen) Side view [1] Compact Flash [2] MMC / SD Note! Please only use storage media, which are tested and approved by VIPA GmbH. HB160E - TP - RE_62F-FCB0 - Rev. 11/14...
Page 13
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 1 Hardware description Bottom view (Interfaces) TP 605CQ 5.7'' 62F-FCB0 Components RS422/485 interface COM 2 RS232 interface COM 1 MPI/PROFIBUS DP/RS485 interface "Host"-USB-A interface "Slave"-USB-B interface RJ45 jack for Ethernet communication...
All manuals and user guides at all-guides.com Chapter 1 Hardware description Manual VIPA HMI Components The following memory systems are available for every Touch Panel: Memory management • 64Mbyte work memory • 32Mbyte Flash disk (6Mbyte for user data) • USB storage media using "Host"-USB-A interface •...
Page 15
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 1 Hardware description • Logical states represented by voltage differences between the 4 cores RS422/485 • Serial bus connection in 4-wire technology using full duplex mode interface • Data communications up to a max. distance of 500m •...
Page 16
All manuals and user guides at all-guides.com Chapter 1 Hardware description Manual VIPA HMI • Interface is compatible to the COM interface of a PC RS232 interface • Logical signals as voltage levels • Point-to-point links with serial full-duplex transfer in two-wire technology up to 15m distance •...
Page 17
The USB-A interface of your PC can be connected to the "Slave"-USB-B Programming cable interface of your Touch Panel deploying the USB programming cable. The USB programming cable is delivered by VIPA with order No. VIPA 670-0KB10. Power supply The Touch Panel has got an integrated power supply. The power supply has to be provided with DC 24V (20.4 ...
All manuals and user guides at all-guides.com Chapter 1 Hardware description Manual VIPA HMI Dimensions installation width width installation depth For the installation of the Touch Panel in control cabinets and desks the Installation following dimensions are necessary: dimensions 5.7'' Front panel width 2.5 ...
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 1 Hardware description Technical Data Order number 62F-FCB0 Type Touch Panel TP 605CQ Display Display size (diagonal) 5.7 " Display size (width) 115.2 mm Display size (height) 86.4 mm...
Page 20
All manuals and user guides at all-guides.com Chapter 1 Hardware description Manual VIPA HMI Mechanical data Housing / Protection type Material die-cast aluminum Mounting via integrated pivoted lever Protect type front side IP 65 Protect type back side IP 20...
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Chapter 2 Deployment Touch Panel This chapter deals with the application of the Touch Panel. Overview At the beginning of the chapter you get information about the assembly and the connection of the Touch Panel.
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Installation The Touch Panel is suitable for the installation in operating tables and Overview control cabinet fronts. The installation happens via the backside. The Touch Panel is provided with a patented integrated fixing technique that allows an easy connection with a simple screwdriver.
Page 23
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Connect For the cabling of the DC 24V power supply green plugs with CageClamp technology are deployed. The spring-clip connector technology simplifies power supply the wiring requirements for signaling and power cables. In contrast to screw terminal connections, spring-clip wiring is vibration proof.
• Signal cables must not be let within the same cable shaft as high voltage cables. As soon as the Touch Panel is provided by power supply the Touch Panel VIPA Startup starts with "user area" of the VIPA Startup Manager: Manager User area Advanced On delivery the button [Advanced] is shown at the starting screen.
Page 25
Here the communication interfaces may also be configured. Further you reach here the TP information: product number, serial number and licenses. The VIPA Startup Manager is closed by [Exit] and the system returns to the Exit ®...
Page 26
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Settings Buttons may be configured with [Settings]. Here buttons may be added or removed respectively assigned with programs. Main Here general settings may be established.
Page 27
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Fixed Here the buttons are listed, which may not be changed in the user respectively administrator area. Custom Here new buttons may be configured and assigned with corresponding programs.
Page 28
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Password The administrator area may be protected by a password. Here you may enter respectively change the password of the administrator area. If you click within the user area to the button [Advanced] and a password is defined, you were prompted to enter the password.
Page 29
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Execute Here programs may be added, which have to start in the background during startup e.g. VNC server or transport services. The files to be copied are added by [+]. With [-] the corresponding file is removed from the list.
Page 30
Chapter 2 Deployment Touch Panel Manual VIPA HMI About Here you may find the current version of the VIPA Startup-Manager. Control Panel To configure the COM2 interface on the Touch Panel start via the button "Control Panel" the tool "Com2 Configuration".
Page 31
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Configuration To configure the MPI/DP interface on the Touch Panel start via "Control MPI/DP slave Panel" the tool "MPI/DP Slave Configuration". Default: MPI - Address 1 The following settings are only required if not communicate via Movicon or zenon.
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Connection to a PLC system For the inclusion into your PLC system several HMI/SCADA project- engineering platforms are at your disposal that has to be installed at an external PC.
• ftp, http, Telnet and VNC server • ActiveSync file transfer (USB, RS232) • Registry Editor • USB keyboard driver • HP printer driver (COM, Ethernet, USB) • VIPA Startup Manager HB160E - TP - RE_62F-FCB0 - Rev. 11/14 2-13...
Page 34
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI ® Differences to the Please regard that for the deployment of Windows CE a thorough ® ® standard Windows knowledge of operating Windows are assumed. Here are only shown the ®...
Page 35
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Structure Icon Via icons on the desktop you gain direct access to the application related to the icon. ® Desktop The desktop is the screen that is shown after login at Windows CE.
Page 36
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Software keyboard The button allows you to select one of the available software keyboards. At the moment the following standard keyboards are implemented: Software keyboard...
Page 37
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel System setting Due to the fact that many components of the Control Panel are conform ® with the system control of Windows , most of the description is here (Control Panel) dispensed.
Page 38
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Set MPI parameters The dialog window where to configure the integrated MPI interface is to be found at Start > Settings > Control Panel > MPI Configuration.
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Communication via ActiveSync ActiveSync is a communication platform developed by Microsoft especially Overview for mobile computers to synchronize data between a mobile device and a PC via USB.
Page 40
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Install partnership Now you may install a "partnership" via an USB connection with the for USB communi- following approach: cation • Connect your Touch Panel via the "Device"-USB-B jack to your PC and turn on the Touch Panel.
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Integrated Server The Touch Panel has several integrated server that enable a remote Login data maintenance within a network. Some servers only allow access by means of entering User name and Password.
Page 42
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI By means of a ftp server data between client and server can be ftp server exchanged. Here you may copy, delete or create files and directories.
Page 43
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Establishing a Below is explained, how to establish of a ftp connection between a ® ® Windows based PC (here Windows 2000) with Internet Explorer as ftp ftp connection client and your Touch Panel.
Page 44
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI The Touch Panel has an integrated http server (web server) that allows http server depending on the access the administration of the Touch Panel res. of websites in the Touch Panel.
Page 45
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Telnet is a text based client-server protocol on TCP level. Using of a Telnet Telnet server ® client like e.g. the "MS-DOS console" in your Windows...
Page 46
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Commands After establishment of a Telnet connection the Touch Panel provides you with commands. A list of possible commands with a short description is available via the command help.
Page 47
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel The Touch Panel has an integrated VNC server (virtual network control) VNC server that allows the total control of the Touch Panel with a PC via network. For this, a window displays the current Touch Panel content for remote control.
All manuals and user guides at all-guides.com Chapter 2 Deployment Touch Panel Manual VIPA HMI Access to the network resources The Touch Panel allows you to access shared resources in a Microsoft Overview network like drives and printer. Here you may assign existing public directories or printer in the network to local directories or printer in the Touch Panel.
Page 49
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 2 Deployment Touch Panel Configure network The configuration of a network printer happens with the following approach: printer • Enter this command into the command prompt: \> net use printer name network printer...
You may execute a firmware update via SD, CF card or USB stick. The Overview latest firmware versions are to be found in the service area at www.vipa.de. Attention! When installing a new firmware you have to be extremely careful. Under...
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 3 Installation Guidelines Chapter 3 Installation Guidelines The chapter "Installation Guidelines" gives you information about the Overview interference-free installation of Programmable Logic Controls (PLC) together with a Touch Panel.
All manuals and user guides at all-guides.com Chapter 3 Installation Guidelines Manual VIPA HMI Basic rules for the EMC-equitable assembly of installations The term electromagnetic compatibility (EMC) refers to the ability of an What is EMC? electrical device to operate properly in an electromagnetic environment without interference from the environment or without the device causing illegal interference to the environment.
Page 53
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 3 Installation Guidelines Coupling The following table shows the four different coupling mechanisms, their causes and possible interference sources. mechanisms and interference sources Coupling mechanism Cause Typical source Galvanic or metallic coupling •...
Page 54
All manuals and user guides at all-guides.com Chapter 3 Installation Guidelines Manual VIPA HMI Basic rules for In many cases, the adherence to some very elementary rules is sufficient to ensure EMC. For this reason we wish to advise you to heed the following...
Page 55
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 3 Installation Guidelines In critical cases you should implement special EMC measures! • Connect snubber networks to all inductive loads that are not controlled by special EMC modules. • Use incandescent lamps for illumination purposes inside cabinets or cubicles, do not use of fluorescent lamps.
All manuals and user guides at all-guides.com Chapter 3 Installation Guidelines Manual VIPA HMI EMC-equitable assembly Mostly, measures for suppressing interference voltages are only taken, when the control is already in commission and the perfect receive of a wanted signal is disturbed.
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 3 Installation Guidelines EMC-equitable cabling Content of this section is the line routing of bus, signal and supply lines. Line routing Object of the line routing is to suppress the "slurring" at parallel lines.
Page 58
• Install these protective elements at the location where the cables enter the building. Note! Any lightning protection system must be based on an individual assessment of the entire plant. For questions please contact VIPA GmbH. HB160E - TP - RE_62F-FCB0 - Rev. 11/14...
Page 59
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 3 Installation Guidelines Equipotential Potential differences can occur between different sections when controllers and peripheral equipment are connected by means of non-isolated bonding connections or the screens of screened cables are connected at both ends and grounded on different sections of the plant.
Page 60
All manuals and user guides at all-guides.com Chapter 3 Installation Guidelines Manual VIPA HMI One-sided In exceptional cases it may be necessary to ground the screen on one side only. However, this will only attenuate the lowest frequencies. The one-...
All manuals and user guides at all-guides.com Manual VIPA HMI Chapter 3 Installation Guidelines Special precautions providing high noise immunity Inductors controlled by your programmable controller (e.g. contactors and Inductors require relays) do not normally require additional snubber networks or suppressors...
All manuals and user guides at all-guides.com Chapter 3 Installation Guidelines Manual VIPA HMI Checklist for the EMC-compliant installation of controllers EMV-measures Space for Notes Connection of the inactive parts You should take special care to check the connections of: •...
