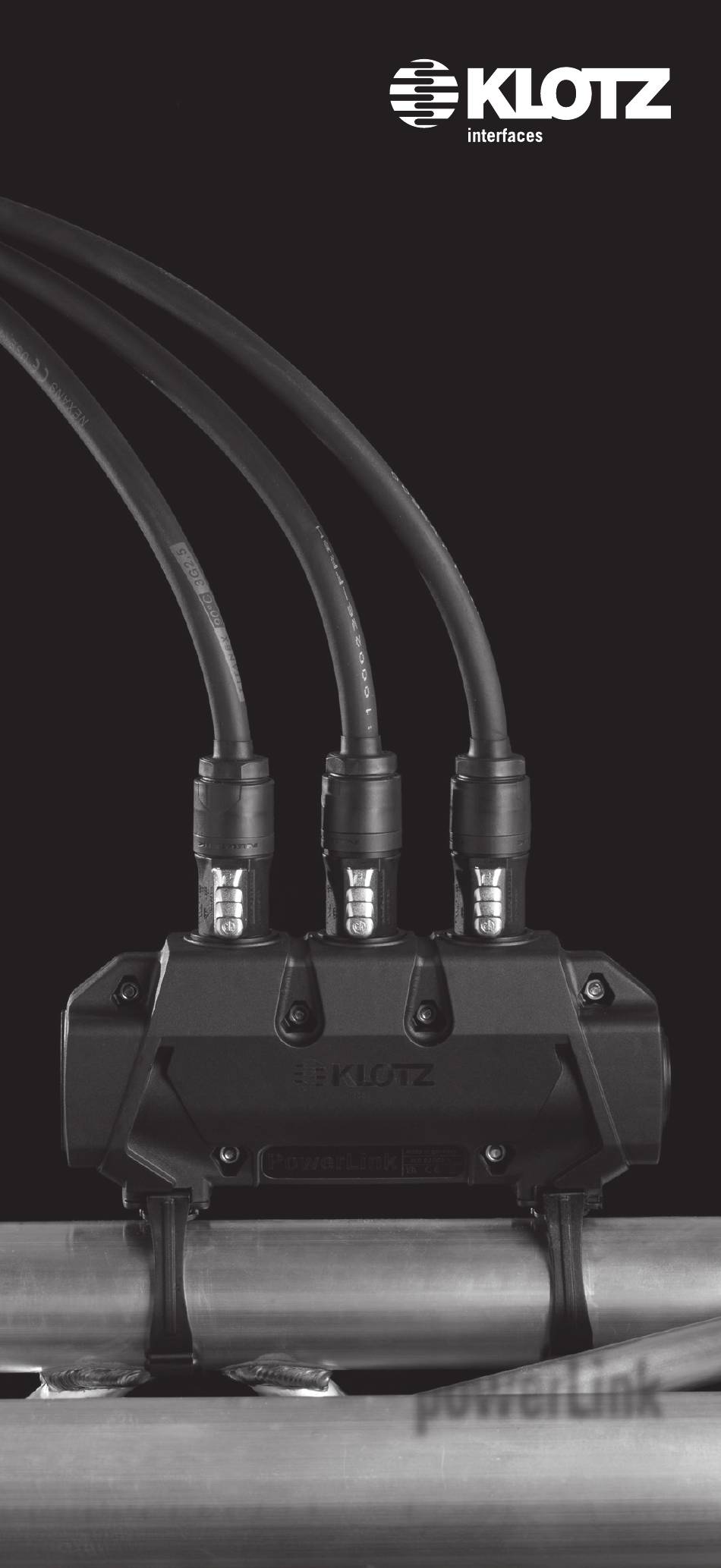

In addition, the housing is ul- tra-light. The PowerLink Truss & Stagebox can be eas- ily and quickly attached to a truss via two PowerLink Clamps; additional securing with two O-rings is also possible. Alternatively, the box can be equipped with an optional metal bracket on the underside.
Intended use The device corresponds to the state of the art in science and technology, and the applicable safety regulations at the time it is placed on the market within the scope of its intended use. The device is intended for commercial use. Unforeseeable damage may result from modifications to the device or the use of parts that have not been tested and approved by the manufacturer! Any use for purposes other than those intended or any activities on the described in these...
Page 5
Connections Power Connector top view side view Power Connector...
Page 6
Safety General safety instructions • For safe handling of this device, the user must have read and understood these operating instructions before using the device for the first time. • Observe all safety instructions! If you disregard the safety instructions, you endanger yourself and others.
Safety Electrical safety • The device may only be connected to a supply line with a properly installed grounding contact. • Before connecting the device, it must be ensured that the mains connection corresponds to the connection data. • The device may only be used within the specified limits for voltage and power (see technical data).
Page 8
Fixing in the rig Fixing in the rig, to wiring harness tubes with a diameter of 50 mm, is done by 2 clamps attached to the PowerLink. The clamp is designed as a body spring and acts self-locking against the housing when mounted.
Page 9
Mounting via M10 thread Bracket ot accept a mounting clip with M10 thread. Push the bracket up to the stop and screw it in place. (Mounting bracket as accessory) art. no.: POWER-LK-BR PowerLink bracket...
Operation DANGER! Danger to life due to electric shock! The permissible maximum power of connected loads must not be exceeded. (see technical data). DANGER! Danger to life due to electric shock! Freedom from voltage is only guaranteed when the supply cable is not plugged in. Dispose of device The symbol of the crossed-out trash can means: Batteries and rechargeable batteries, electrical and electronic equip-...
Technical data Description PowerLink Truss & Stagebox Load capacity 16A 250V AC Conductor cross section 2,5 mm² Flammability UL94V-0 Temperature range -30 °C - +50 °C Safety standard IEC 62368-1 Dimensions (W x H x D): 197,5 x 91 x 55 mm...
