2007-2018 GM 1500

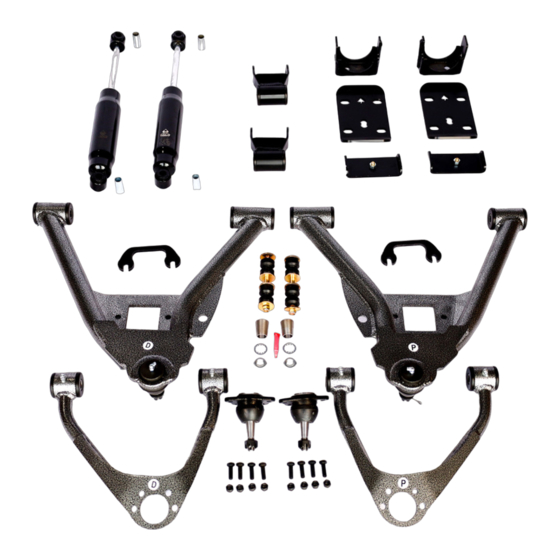

5" rear drop- reverse hanger
Applies to all 2wd and 4WD. All cabs.
IF your IHC Suspension product has a damaged or missing part,
please contact customer service directly and a new replacement
part will be sent to you immediately. For warranty issues, please
return to the place of installation and contact IHC Suspension.
(956) 424-6901
Monday-Friday 8AM-6PM CST
Or
EMAIL:
Sales@ihcsuspension.com
WEBSITE: www.ihcsuspension.com
LIMITED LIFETIME WARRANTY
This unique product warranty proves our commitment to the quality and reliability of every product that IHC Suspension
manufactures. The IHC Suspension product warranty only extends to the original purchaser of any IHC Suspension
product, if it breaks, we will give you a new part. Warranty does not apply to discontinued parts.
Our Limited Lifetime Warranty excludes the following IHC Suspension items, bushings, bump stops, ball joints, and shock
absorbers. These parts are subject to wear and are not considered defective when worn. They are warranted for 12
months from the date of purchase for defects in workmanship.
This product warranty is voided if the vehicle is not aligned after kit installation and proper maintenance is routinely
done.
Product purchased directly from IHC Suspension has a 30-day return policy on uninstalled products from the date of
purchase (may be subject to restocking fee). Uninstalled product returns must be in the original IHC Suspension
packaging. Please call 956-424-6901 to get an RMA# for any return. Customer is responsible for shipping costs back to
IHC Suspension. Returns without RMA# will be refused. Contact IHC Suspension directly about any potentially defective
parts prior to removal from vehicle.
IHC Suspension products are NOT intended for off-road abuse. Any damage or failure as a result of abuse voids the
warranty of the IHC Suspension product. IHC Suspension is NOT responsible for any subsequent damages to any related
vehicle parts due to misuse, abuse, improper installation, or lack of maintenance. Furthermore, IHC Suspension reserves
the right to change, modify or cancel this warranty without prior notice.
