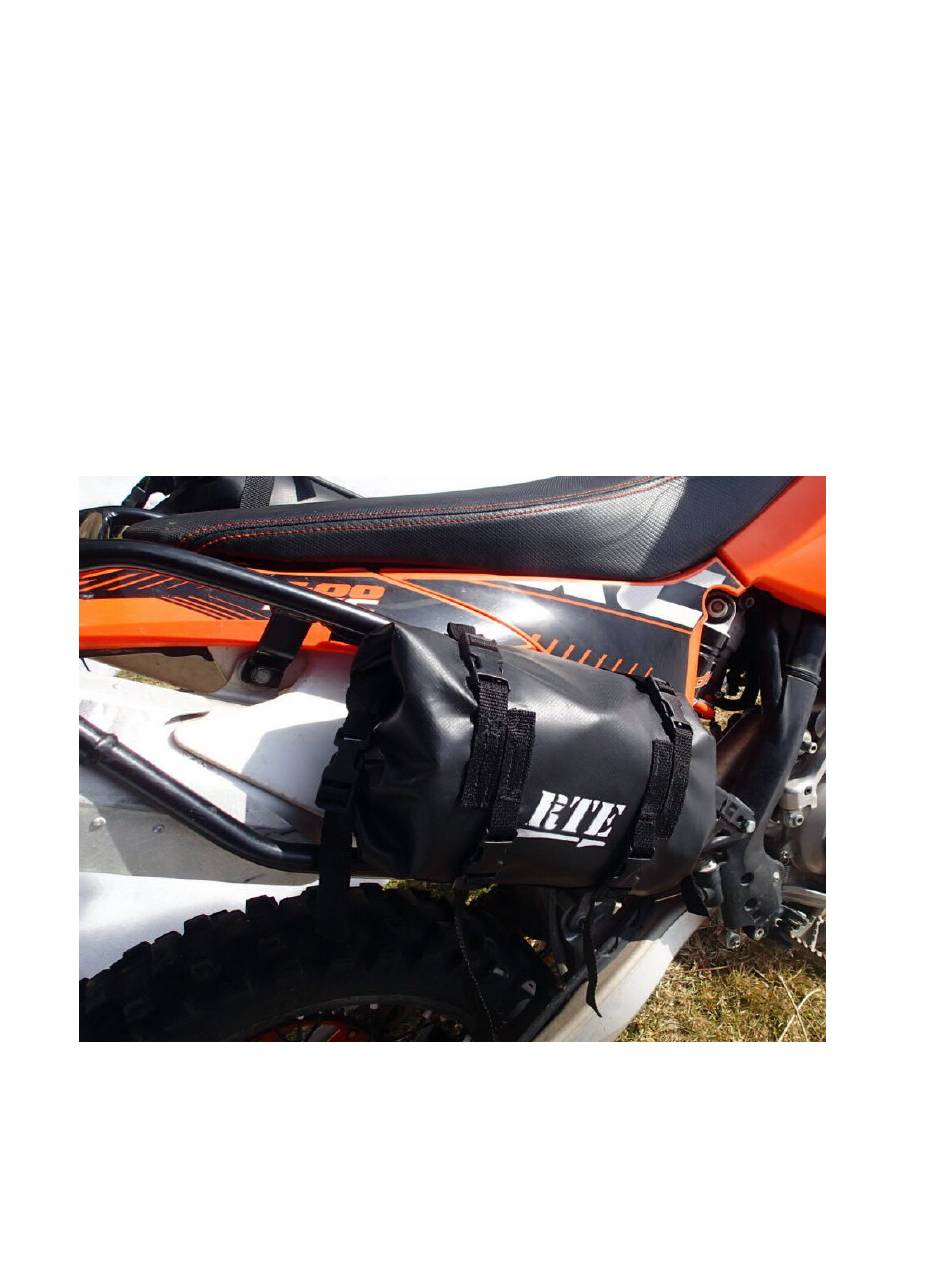

- Page 1 Real Tyme Engineering Installation Manual Saddle Bags KTM Mini Rack Part no 300170 Real Tyme Engineering Salt Lake City, UT USA Rev B - Dec 2013 Copyright Real Tyme Engineering Page 1...
- Page 2 These saddle bags are specially designed for the Mini rack to position the bags in a forward location thus moving the weight forward for improved handling. The bag is fitted with 3 sets of straps: the end straps, the inner set & the outer set. Each set has a purpose: a.
- Page 3 Looking down on the RH side of the Mini rack during installation...start by feeding the inner straps through the daisy loops welded to the inside of the top tubes, over the loop & downward toward the lower tube. Feed the outer straps upwards behind the top tube.
- Page 4 After feeding the inner straps over the daisy & under the lower tube, feed them into the inner buckles. Leave them loose for the moment. Page 4...
- Page 5 After feeding the outer straps over the top tube, feed them into the outer buckles. Page 5...
- Page 6 Snug up both the inner & outer straps to pull the bag against the tubes. It should look like this. Page 6...
- Page 7 A proper installation will allow the bag to remain in an upright position when the bag is opened for loading / unloading. Page 7...
- Page 8 Happy riding! Page 8...
