Summary of Contents for Hydro-Flux FlowBright

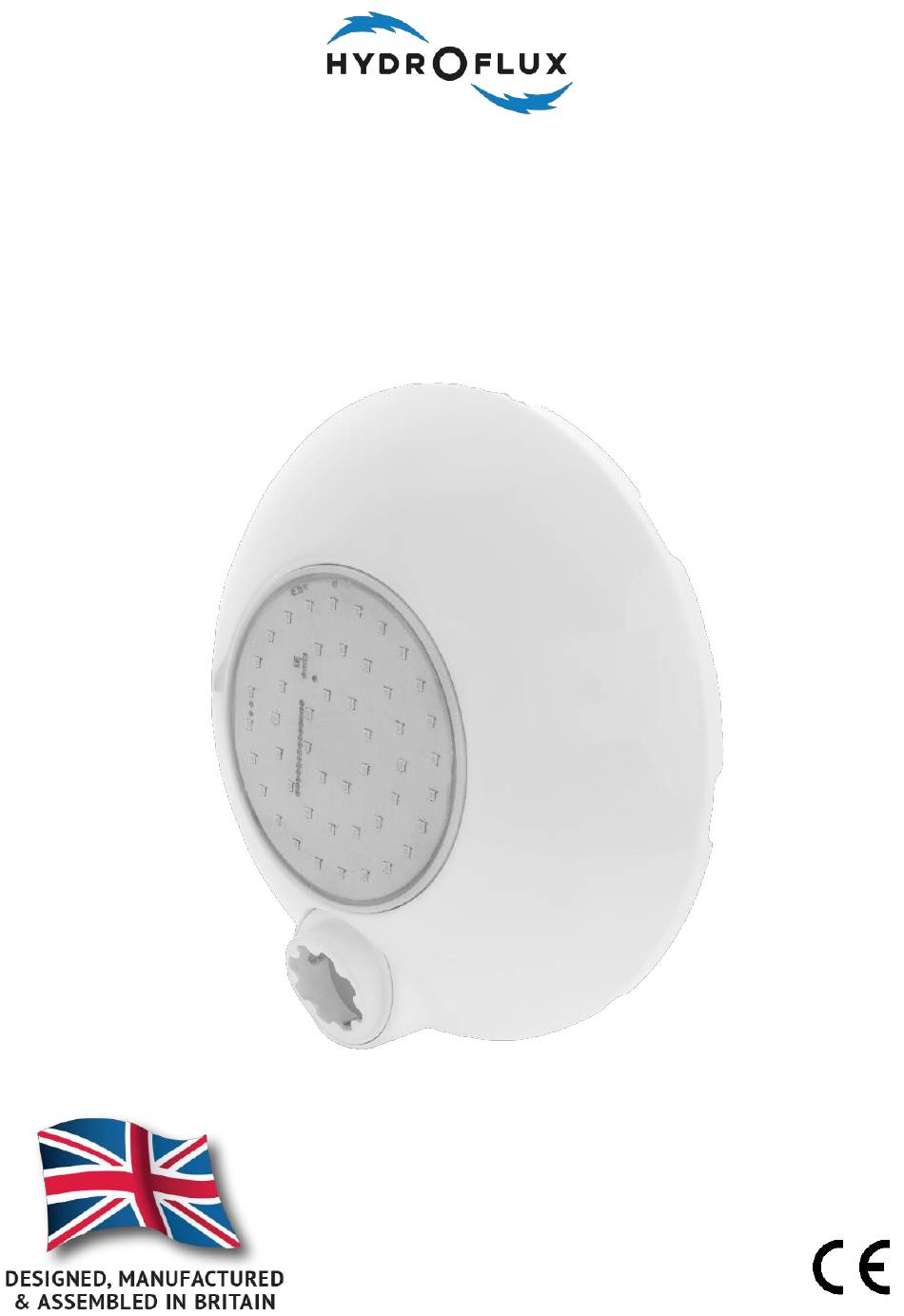

- Page 1 FlowBright Instruction Manual...
- Page 2 P a g e Thank You Thank you very much for purchasing a FlowBright – the revolutionary water- powered swimming pool light. Because of that decision, you’ll no longer need to bother with complex installation or maintenance, electrical hook-ups, cables, transformers, niches, or deck boxes. With its straightforward design and precision-engineered components, FlowBright really does make your life easier.
-
Page 3: Table Of Contents
Frequently Asked Questions ..................13 What happens when I backwash my pool? .............. 13 Will the light operate when I’m vacuuming my pool? ..........13 Can I use FlowBright in a salt pool? ............... 13 Patent Information ....................... 14 Product Specifications ....................14 Product Dimensions ..................... -
Page 4: How Flowbright Work
FlowBright has been designed to have very little impact on the back pressure in your filtration system. This is made possible by using a sophisticated gate arrangement to divert excess water away from the turbine assembly. -
Page 5: General Information
However, this decision should be made by the pool specialists. We are developing a commercial FlowBright. In a low, or periodic no flow situation the FlowBright Plus is recommended. The FlowBright Plus has an internal rechargeable battery. This will allow the light to function at lower flows;... -
Page 6: Box Contains
When the light is fully assembled all the magnets are fully screened, eliminating any potential hazard. Warning – When installing FlowBright do not let the distance between the back of the fascia and the wall of the pool become larger than 8mm. -
Page 7: Technical Diagram
P a g e Technical Diagram LED Array Front View Fascia Directional Exhaust Rear view Gate Setting Screw 4 Gate Settings Turbine Long Adaptor Gates Housing Adaptor Adaptor Fixing Fixing Plate Plate Screws... -
Page 8: Installation
2. Referring to the Flow Determination section below, configure your FlowBright and/or filter return system to the optimal setting. 3. Before screwing FlowBright into your return inlet, check which adaptor you require. Short Adaptor Attached as standard. If an adaptor change is necessary, refer to the adaptor adjustment section below. -
Page 9: Flow Determination
However, again, as no two pools are alike you may need to configure your FlowBright and/or filter return inlet configuration to achieve the best performance. -
Page 10: Excess Flow
Diverting the flow away from the turbine is very straightforward. Use the flow Chart below to determine your required gate setting. To adjust the gate arrangement on your FlowBright please follow these simple instructions. Gates come fully closed as standard. -
Page 11: Flow Chart
4. Reattach the adaptor fixing plate. Exhaust Adjustment When your FlowBright is installed into your pool, you might discover that the directional exhaust is not located at the bottom of the housing. If this is the case, you should adjust your FlowBright. (FlowBright will function at any orientation). -
Page 12: Maintenance
Maintenance As FlowBright is constructed and installed in a simply and easy to understand way, maintaining it is also straightforward. We recommend that you remove the light from your inlet once every six months. Have a look over the product to make sure that no faults have occurred, remove any potential debris from the housing, cleaning any residue that may have formed. -
Page 13: Frequently Asked Questions
Can I use FlowBright in a salt pool? FlowBright is constructed out of the highest quality plastics and 316L stainless steel components. These materials generally have a high resistance to corrosion under normal chlorinated pool water conditions. -
Page 14: Patent Information
P a g e | 14 Patent Information Country Patent Number UK, Germany, Spain, France, Italy EP 2247807 US 8,618,687 Canada CA 2716172 Product Specifications Minimum Flow Rate 6.00 Max Flow Rate to Turbine 7.00 Max Flow Rate to Assembly 10.00 Min Temperature 10°C... -
Page 15: Troubleshooting
➢ Check by-pass gate setting, as you may need to change to a more open setting. Turbine blockage ➢ Remove FlowBright from pool, check turbine cavity, inlet, and Turbine speed too remove any potential debris. high Excess bearing... -
Page 16: Contact Information
P a g e | 16 Contact Information Hydro-Flux Aqua Products Limited Unit 18 Wilton Industrial Court, 851 Bradford Road, Batley, West Yorkshire, WF17 8NN England 01924 472 665 Support@hydro-flux.com...
