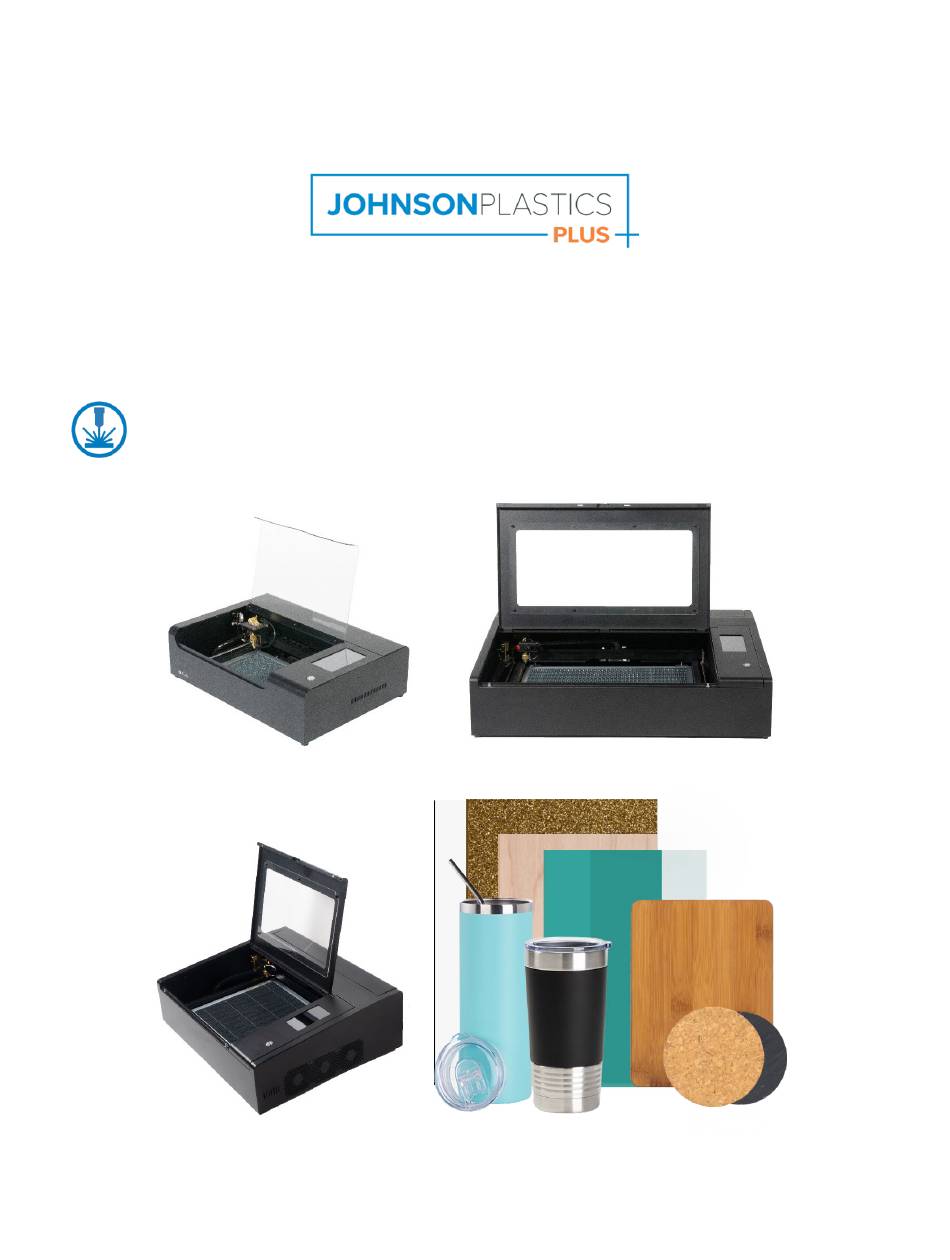

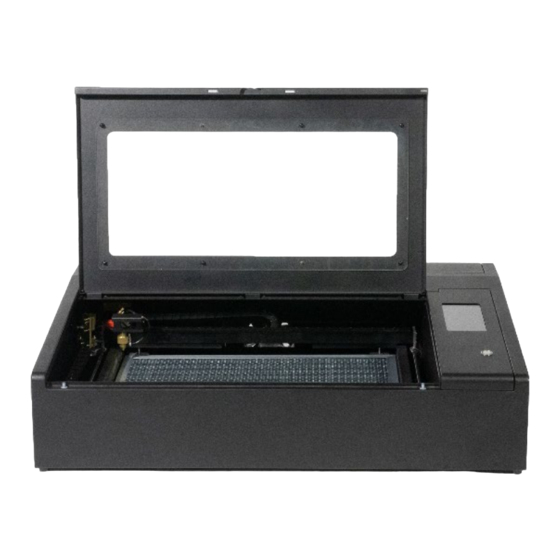

- Page 1 Flux Laser- Recommended Starter Settings for Starter Kits BCB4 | CA123/CA128 | GH341771D | LM922204D | LSW18MAP | RSC10 | CC1 | SND20-BW | SST- SF20E Aug-22...
- Page 2 250 DPI 500 DPI Item # Description Power Speed Power Speed Power Speed Passes Passes Passes mm/s mm/s mm/s Bamboo BCB4 25-30 25-30 Cutting Board- 6” x 8” CA123/ Solid Cast 30-35 25-30 50-55 CA128 (max) (max) Acrylic Rowmark ColorHues GH341771D...
- Page 3 250 DPI 500 DPI Item # Description Power Speed Power Speed Power Speed Passes Passes Passes mm/s mm/s mm/s Bamboo BCB4 30-35 25-30 Cutting Board- 6” x 8” CA123/ Solid Cast 30-35 25-30 60-65 10-12 CA128 (max) (max) Acrylic Rowmark ColorHues...
- Page 4 250 DPI 500 DPI Item # Description Power Speed Power Speed Power Speed Passes Passes Passes mm/s mm/s mm/s Bamboo BCB4 25-30 20-25 Cutting Board- 6” x 8” CA123/ Solid Cast 25-30 20-25 55-60 10-12 CA128 (max) (max) Acrylic Rowmark ColorHues...
- Page 5 General Laser Engraving Instructions • Place the product onto the laser bed. • Move the laser head by hand over to the surface of the product and adjust the laser focus to the product’s surface. • Open the Beam Studio software. Click the “Image” icon on the left toolbar to import artwork into the Beam Studio software.
- Page 6 o Check and clean laser lenses and mirrors. o Check laser alignment. (see laser users manual on how to check and adjust laser beam alignment) • The engraving is too deep. o Laser power setting and/or resolution may need to be decreased. o Laser speed setting may need to be increased.
