Summary of Contents for SA POWERNET EX MDU

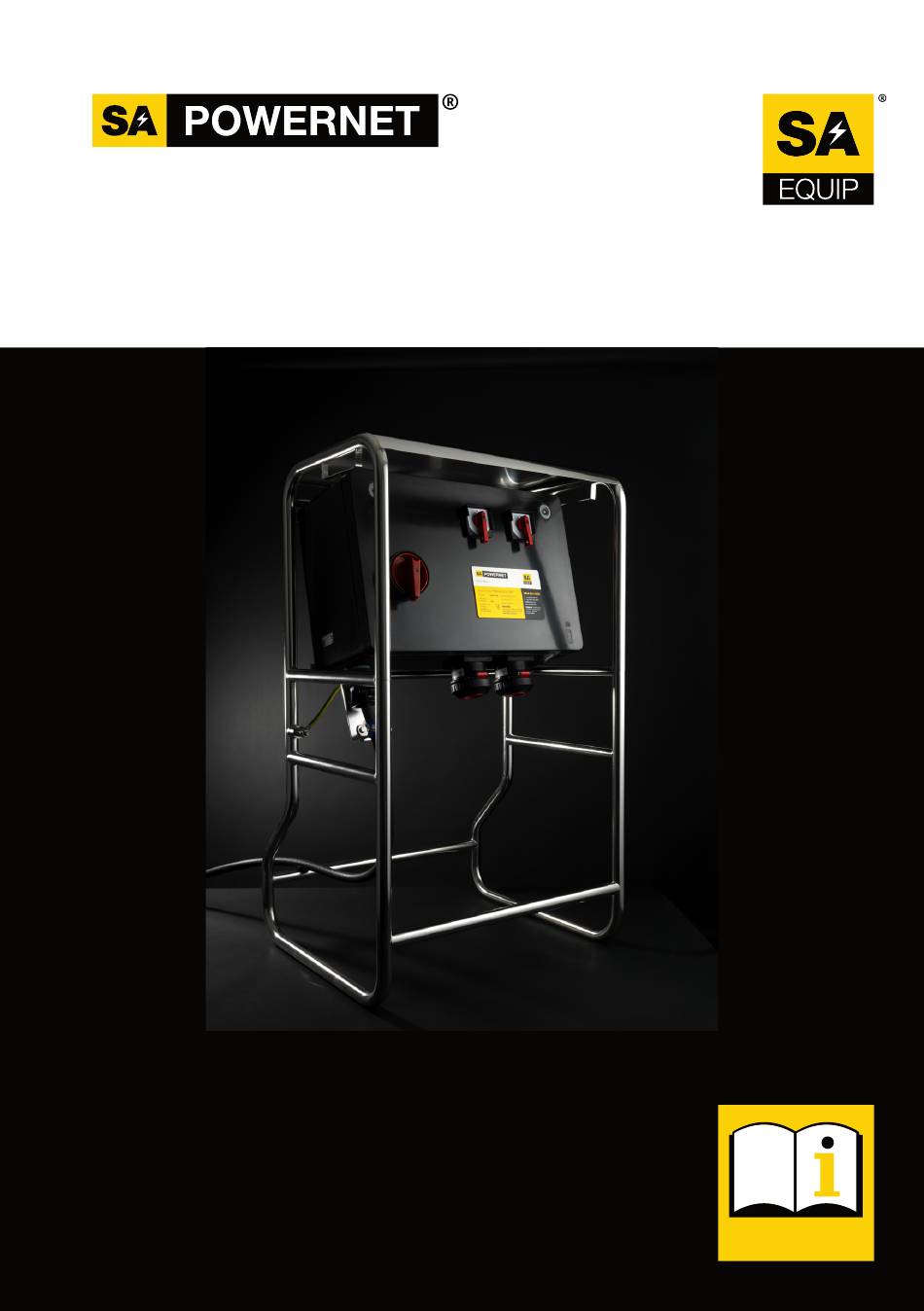

- Page 1 SA POWERNET EX MDU ATEX & UKEX CERTIFIED FOR ZONE 1 & 2 (GAS), 21 & 22 (DUST) USER MANUAL IT IS MANDATORY TO READ THIS USER MANUAL TO ENSURE THAT THIS EQUIPMENT IS USED I S S U E 7...
- Page 2 WELCOME TO SA EQUIP Thank you for choosing to use one of SA Equip’s range of high quality portable power distribution products. This SA POWERNET EX MDU should give you many hours of safe and reliable service. The quipment is a portable power distribution unit consisting of a GRP enclosure mounted in a marine grade stainless steel frame.
- Page 3 PRODUCT INFORMATION The user guide covers the following products: PNDU440/10-2EX/CEA - SA POWERNET EX MDU 400V 2 WAY PNDU440/10-12EX/CEA - SA POWERNET EX MDU 400V 3 WAY PNDU440/10-4EX/CEA - SA POWERNET EX MDU 400V 4 WAY Enclosure On/Off Switch for each...
- Page 4 Misuse of electrical equipment can result in injury or death. Only connect the SA POWERNET EX MDU to a properly installed power supply system. Check the supply is providing the correct voltage and current for the MDU, this is clearly displayed on the type label.
- Page 5 Basic repairs can be carried out by a competent electrician in accordance with the detailed instructions – available on request. No user modifications are permitted and only original spares from SA Equip must be used. The use of any other parts will invalidate any warranty and could compromise the safety and functionality of the equipment.
- Page 6 SPECIFIC SPECIFICATION Voltage: 440/480V 3 phase Input: 64A Output: 16A or 32A Socket Options CEAG or Stahl Socket Pin Configuration: 3P+E or 3P+N+E Supply Cable Length 10 metre (or as required) Weight 55kg approx. Dimensions 680mm (w) x 600mm (d) 1150mm (h) Frame &...
- Page 7 Certification The SA POWERNET EX MDU is ATEX & UKEX certified as transportable equipment for use in Zone 1 and 2 (Gas) and Zone 21 and 22 (Dust) areas. Each MDU has a marking plate bearing the specific product information and certification details as follows:...
- Page 8 SA Equip LLP 10 Clifton View F +44 (0)333 240 6555 East Mains Industrial Estate info@saequip.com Broxburn EH52 5NE United Kingdom saequip.com Copyright © 2022 SA Equip LLP Information and specification is subject to change without notice. Issue 7 01/2022...
