EUROWAG EW OBU User Manual

On-board unit
Hide thumbs Also See for EW OBU:
Table of Contents

Advertisement

Quick Links

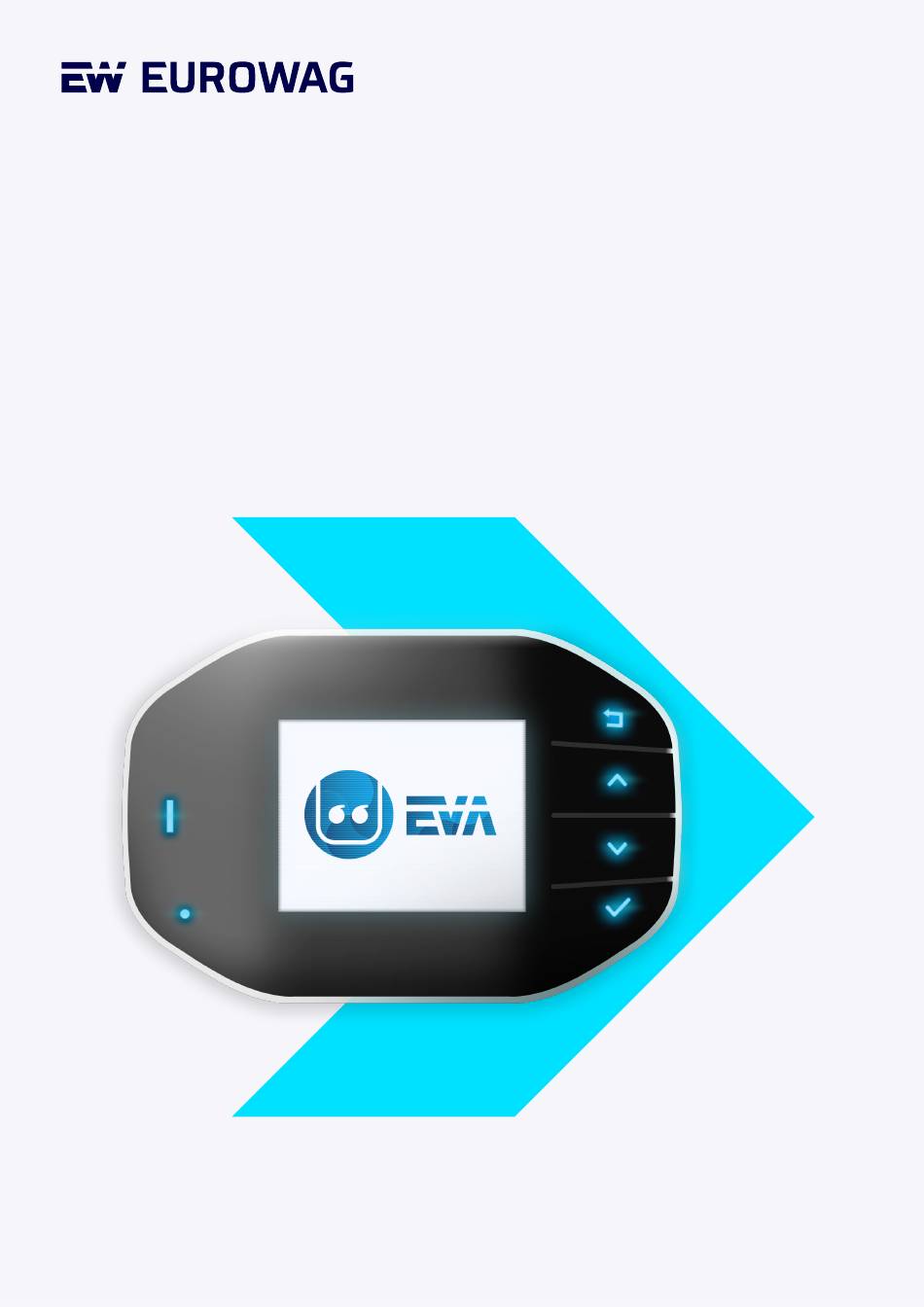

EW OBU (U850).
User manual.
Together we go far.
eurowag.com
GUI version 3.72+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW OBU and is the answer not in the manual?

Questions and answers

Related Manuals for EUROWAG EW OBU

Summary of Contents for EUROWAG EW OBU

  • Page 1 EW OBU (U850). User manual. Together we go far. eurowag.com GUI version 3.72+...
  • Page 2 Eurowag. Only the original Eurowag charging cable and accessories should be used. Keep the EW OBU within a temperature range of -20 °C to 85 °C, away from fire, high humidity or anything which could damage the device. Extreme temperatures can cause deformation of the EW OBU and decrease the capacity and durability of the battery.

  • Page 3: Table Of Contents

    Eurowag Customer Care................28 All EW OBU pictures are for illustrative purposes only and may vary from the actual product! In addition, you may have a different version of the graphical resources loaded in the EW OBU (see the bottom of the Menu).

  • Page 4: Package Content

    LED diode DOWN Light sensor Cable connector • LED diode uses different colours to provide information about the EW OBU and toll service status. • Light sensor. • BACK, UP, DOWN and OK buttons are used for menu function selection.

  • Page 5: Installation

    Remove the protective foil from the screen. Foil not removed can damage the EW OBU! Remove the protective foil from the tape and stick the EW OBU to the cleaned area of the windshield with the buttons on the right-hand side.
  • Page 6 The EW OBU is designed to be used with a voltage range of 8 V – 42 V DC. Voltages outside of the stated range must not be used. The EW OBU should be connected to a power supply for proper operation of the device during driving and toll collection.

  • Page 7: Initial Setup

    4. Initial setup Connect the EW OBU to the power supply to turn it on. The Welcome screen will display. Choose with ↑ or ↓ to select the required language from list and confirm the selection with ✓ button. Welcome screen (A) Screen for language selection (B) Wait for personalization data.
  • Page 8 Menu. Select the Vehicle and compare the information displayed with that of the actual vehicle. If the data is not correct then contact Eurowag Customer Care and do not use the EW OBU. Screen displaying Vehicle information Together we go far.

  • Page 9: Setting The Number Of Axles

    Screen to change number of axles (A) Screen to select number of axles (B) The current number of axles can be seen on the right side of the EW OBU display (section Axles or Axles and class). Screen showing EW OBU display (C) Together we go far.

  • Page 10: Setting Vehicle Weight Class

    Screen displaying changing of axles/ Screen displaying weight class (B) weight class (A) The current weight class can be seen on the right side of the EW OBU display (section Axles or Axles and class). Screen showing EW OBU display (C) Together we go far.

  • Page 11: Led Indications

    Eurowag Customer Care and do not use the EW OBU. Please keep the Declaration document available in the vehicle or on your smartphone for checking purposes. The LED indication (LED status light) is located on the left side of the EW OBU. LED colour Display message...
  • Page 12 EW OBU. Blocked Toll domain is You should STOP in a safe location blocked. and contact Eurowag Customer Care if you want to use EW OBU for toll collection. EW OBU is not Please Contact Eurowag Customer personalized Care.
  • Page 13 If the EW OBU LED diode blinks red, additional information (warning) is displayed in a red box on the EW OBU display. Additional notifications might be displayed at the same time (see Notifications). See examples below: Screen displaying warning of OBU not...
  • Page 14 For some specific DSRC Toll domains (e.g. France), a special icon may be displayed to indicate that even if the LED diode is red, the EW OBU can be still used for toll collection in these Toll domains. In this case, the graphic icon is superior to the red LED diode for that domain.

  • Page 15: Toll Domain Statuses

    8. Toll domain statuses The EW OBU is active and ready to use only in the active Toll domains (Active = green). There must be only one active EW OBU installed in the vehicle at one time. You are responsible for uninstalling or deactivating the devices not in use to avoid having multiple EW OBUs active for the same Toll domain.

  • Page 16: Audio Signal When Operating On Toll Road

    9. Audio signal when operating on toll road It is your responsibility to monitor the status of the EW OBU continuously during your journey. Whenever the EW OBU indicates an error, it is recommended that you STOP in a safe location and contact Eurowag Customer Care to obtain guidance.

  • Page 17: Display

    (user does not manipulate EW OBU). The EW OBU display lights up if a notification (see Notifications) or message (see Messages) is generated or if the user (e.g. driver) presses a button on the EW OBU. Together we go far.

  • Page 18: Notifications

    Push notifications are displayed with an accompanying sound effect unless sound is turned off in the menu (see Menu). The EW OBU display lights up at the same time. Push notifications are displayed with errors, with selected warnings or when the Toll domain status changes.

  • Page 19: Messages

    Messages are displayed WITH NO accompanying sound effect and NO changing the EW OBU LED diode. Note: It does not matter how the sounds are set in the Menu (see Menu, Sound). The EW OBU display lights up at the same time a message is displayed.

  • Page 20: Menu

    13. Menu To display the menu options press the ✓ button on the EW OBU’ s right side. The Menu has the following options: Described in Notifications. The Vehicle section consists of two subsections and is used to review the...
  • Page 21 This section shows an overview of activated/ blocked Toll domains for specific EW OBU. To activate sound on the EW OBU, mark the Sound checkbox with ✓ button. To mute the EW OBU, remove the ✓ button from the checkbox.
  • Page 22 Screen displaying Brightness adjustment options Automatic brightness activates the automatic dimming of the EW OBU light emission from the main screen and from the LED diode light. Automatic brightness is set according to the time of day, the position of...
  • Page 23 The contact number can be found in the Menu under Help section. To identify your EW OBU, the Eurowag Customer Care representative will ask for the EW OBU ID which can be found on the back of the device. Help screen...

  • Page 24: Battery Usage

    EW OBU battery is low. EW OBU is connected to a power supply. EW OBU battery is empty. EW OBU should be connected to a power supply immediately. EW OBU battery is critically low. EW OBU is connected to a power supply.

  • Page 25: Ew Obu Locked Mode

    If the vehicle speed exceeds 10 km/h, a red key icon appears on the screen to indicate that the EW OBU buttons are locked (EW OBU is in Locked mode). A message is displayed if a user (e.g. the driver) tries to use the EW OBU in Locked mode (see below).

  • Page 26: Offline Mode And Return Of Ew Obu

    Use ✓ button to set Offline mode activation. Screen displaying Offline mode activation on (B) EW OBU goes into Offline mode. The EW OBU will display a message if there is a problem. Screen activating Offline mode (C) Message screen in Offline mode (C) The EW OBU cannot be used in Offline mode and Toll domains are not active.

  • Page 27: General Rules

    If you do not follow the above-mentioned rules, conditions and given instructions, the affected Eurowag is obliged to invoice you any caused costs. Use of the EW OBU is permitted only as described in this user manual, in other instructions from Eurowag and in documents available in the Downloads section of the client portal www.eurowag.com.

  • Page 28: Eurowag Customer Care

    The EW OBU is the property of: W.A.G. payment solutions, a.s. Na Vítězné pláni 1719/4 140 00 Prague 4, Czech Republic Eurowag Customer Care +43 720 775 272 +33 448 800 228 +351 300 506 225 +359 249 28 700...

This manual is also suitable for:

U850
