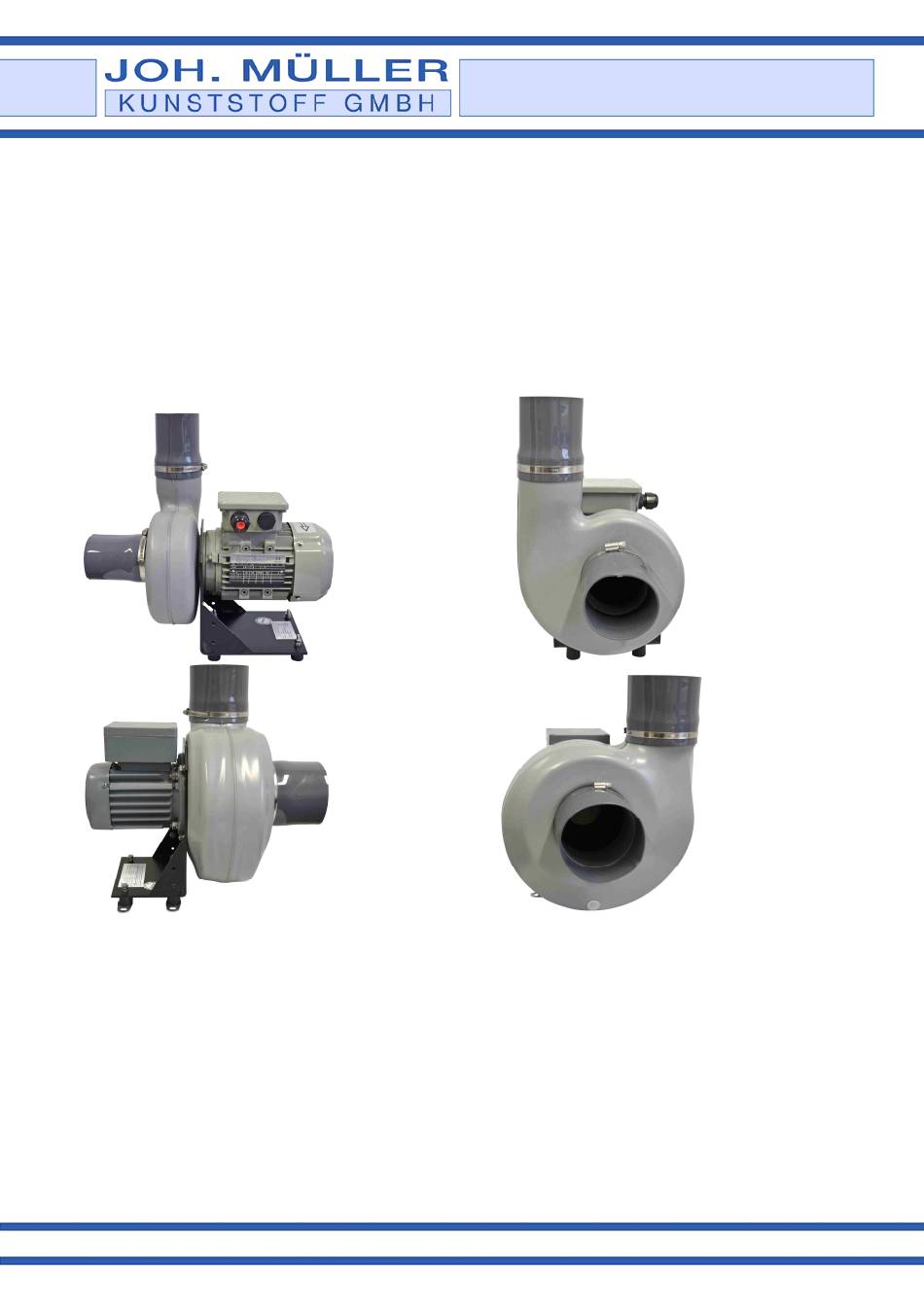

  • Page 1 High performance radial fans Series ML/ MLF/ MLT 75 and 110 Operating Instructions 06/2013 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 2: Table Of Contents

    Introduction Manufacturer and suppliers Declaration of conformity Subject matter of the operating instructions Symbols used Safety instructions Product description Planning use Installation and assembly Commissioning Operation Maintenance, cleaning and repair Warranty Appendices A.x 2/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 3 Safety instructions ........................9 Product Description ........................11 Fan design ..............................11 7.1.1 ML 75 and ML 110 ..........................11 7.1.2 MLF / MLT 75 and MLF / MLT 110 ......................11 Fan materials .............................. 13 Proper use ..............................13 Improper use ..............................
  • Page 4 Labelling ..............................18 Electricity supply ............................19 Planning use ..........................19 Transport ..............................19 Storage................................ 20 Disposal ..............................20 Installation and assembly ......................20 Electrical connection ..........................21 10 Commissioning ........................... 22 11 Operation ............................ 22 11.1 Troubleshooting ............................22 12 Maintenance, cleaning and repair .....................
  • Page 5: Introduction

    Introduction These operating instructions Are to be considered part of the product. Are to be read carefully and thoroughly by the operator/s of the fan/s before first use of same. The safety information contained herein must be adhered to. The operating instructions are to be passed on to subsequent owners and operators of the equipment.
  • Page 6: Manufacturer And Suppliers

    Manufacturer and suppliers Manufacturer Joh. Mueller Kunststoff GmbH Lescheider Weg 6-8 Tel. +49-2248-9173-0 53773 Hennef-Bierth Fax. +49-2248-9173-79 Germany Internet. www.kunststoff-mueller.de Customer Service Joh. Mueller Kunststoff GmbH Lescheider Weg 6-8 Tel. +49-2248-9173-0 53773 Hennef-Bierth Fax. +49-2248-9173-79 Germany Internet. www.kunststoff-mueller.de Suppliers See the appendix on scope of delivery 6/36 Lescheider Weg 6-8 •...
  • Page 7: Declaration Of Conformity

    Declaration of conformity EU Declaration of Conformity within the meaning of the EU Machinery Directive (2006/42/EU), Low Voltage Directive 2006/95/EU and EMC Directive 2004/108/EU Joh. Mueller Kunststoff GmbH, Lescheider Weg 6-8, D-53773 Hennef-Bierth, declare that the machine described below complies in its design and construction and in the version marketed by them with the applicable health and safety requirements of the EU Machinery Directive and the requirements of the EMC and Low Voltage Directives.
  • Page 8: Subject Matter Of The Operating Instructions

    Subject matter of the operating instructions The operating instructions only apply to the fan/s supplied including assembly frame/s, flange/s and motor/s. The interfaces for the ML series are the sleeves and for the MLF and MLT series the flanges for connection to the piping system. Symbols used Caution.
  • Page 9: Safety Instructions

    Safety instructions As operator you’re responsible for ensuring fans are only used if in technically problem-free condition, only for their intended purpose and in compliance with these operating instructions. Ensuring staff are aware that proper use includes adherence to the maintenance requirements.
  • Page 10 The conformity declaration is rendered invalid if a fan is modified by e.g. adding a frequency converter or metrology equipment, and the operator must then declare conformity themselves after risk analysis. Fan operating temperature may not fall below the lower melting point of the medium being pumped.
  • Page 11: Product Description

    Bushing, pressure side, with pipe clamp Fan block Bushing, suction side, with pipe clamp Table 1: Details of ML 75 and ML110 Ex fan (illustration 1) 7.1.2 MLF / MLT 75 and MLF / MLT 110 Illustration 2: Radial fan, series MLF 75 11/36 Lescheider Weg 6-8 •...
  • Page 12 Illustration 3: Radial fan, series MLF 110 Illustration 4: Radial fan, series MLT 75 and MLT 110 Item Description Item Description Fan housing with rotor Pressure brackets MLF: plastic rotor MLT: Stainless steel cylindrical rotor Motor Fastening flange Intake fitting Table 2: Details of fan series MLF / MLT 75 and 110 Ex (illustrations 2, 3 and 4) Joh.
  • Page 13: Fan Materials

    thermoplastics using a deep draw process; those of the MLT series are made employing a press process and then welded. Possible housing settings are named per VDMA 24165. The radial fan housings in the ML / MLF/ MLT 75/110 series must be equipped with safety grilles on both the pressure and suction sides.
  • Page 14: Improper Use

    The operating conditions below must be adhered to. Fan vicinity Pumped media Temperature min. > -20 °C Plastic/s used PP/PPS/PVDF Max. < 40 °C > 0 °C < 60 °C Plastic/s used PE > 0 °C < 50 °C Plastic/s used PVC >...
  • Page 15: Specifications

    SPECIFICATIONS 7.5.1 ML 75 and ML 110 Type (∅ ∅ ∅ ∅ D) ∅ ∅ ∅ ∅ d Max. ML-75 ML-110 The right to make changes is reserved. Table 5: Technical data of ML75 and ML110 radial fans 15/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 16: Mlf 75 And Mlf 110

    7.5.2 MLF 75 and MLF 110 Illustration 5: Technical data of the MLF 75 series Illustration 6: Technical data of the MLF 110 series 16/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 17: Mlt 75 And Mlt 110

    7.5.3 MLT 75 and MLT 110 Illustration 7: Technical data of the MLF 75 series Illustration 8: Technical data of the MLF 110 series with standing console 17/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 18: Labelling

    Illustration 9: Technical data of the MLT 110 model with special console for vertical installation Possible alignments for fans of the ML series. The GR alignment is shown (GL is the mirrored design). Labelling The following data characterise the fan type, performance and uses and hence the proper use. Type plate data.
  • Page 19: Planning Use

    Type plate and warnings must always be legible. If it is ascertained during maintenance that they are illegible or missing then they must be cleaned or replaced. Type plate data for the radial fan supplied is given in Appendix A6. Electricity supply A terminal box or maintenance switch can be supplied to connect the fan to the electricity supply as desired.
  • Page 20: Installation And Assembly

    Storage The fan/s must be stored in closed dry rooms where as even a temperature as possible prevails. This must be above 0 °C and below 40 °C. Avoid direct sunlight, high humidity and dusty, corrosive atmospheres and substances, vibrations and shocks. If stored or turned off for a long time the shafts must be turned once a year to keep them rotatable.
  • Page 21: Electrical Connection

    Piping connections must be flexible. Suction inlets and pressure outlets may not be mechanically stressed by piping connections. Fans may not be operated when uninstalled. When installing fans make sure the motor ventilation apertures remain unobstructed and that no heated cooling air (e.g.
  • Page 22: Commissioning

    Commissioning Protective clothing must be worn when commissioning fans. Check the direction the fan rotor turns. This must agree with the directional arrow on the fan housing. Check the motor data on the motor plate. Check that the motor is properly earthed. Check maximum permissible motor RPM.
  • Page 23 Fault Possible causes Remedial measures Fan runs rough Determine the cause/s of the change/s and Changes in the foundation/s (oscillations and remedy them if possible. and hence major oscillation of vibrations) Check foundation/s and fan and dampen the fan vibrations. Balance it.
  • Page 24 Fault Possible causes Remedial measures Fan makes a Foreign body between rotor and Remove foreign body. grinding noise housing Check rotor. Rotor deformed Advise Joh. Mueller Kunststoff GmbH. Overcurrent Overcurrent protection device Adjust overcurrent protection device (motor protection device (motor protection switch) protection switch).
  • Page 25: Maintenance, Cleaning And Repair

    Maintenance, cleaning and repair 12.1 Maintenance and cleaning Maintenance, cleaning and repair work may only be carried out by properly qualified personnel. Said personnel must be properly trained for the job and familiar with handling electricity, electric plant and tools for use in atmospheres at risk of explosion. The maintenance, cleaning and repair work must be documented in a "maintenance book"...
  • Page 26: Carrying Out Maintenance Work

    Risk of ingestion Danger due to electricity • Identify the spare parts on the basis of the type plate or technical documentation. Consult the customer service department of Joh. Mueller Kunststoff GmbH on the subject. 12.2 Carrying out maintenance work The maintenance and service work needed is detailed in the table below with the associated intervals.
  • Page 27: Warranty

    Visual and basic checks (annual) Fan basic checks must be carried out by Joh. Mueller Kunststoff GmbH and this documented. After basic cleaning the fan must be recommissioned in compliance with Chapter . Check earthing point conductivity. Motor maintenance See motor operating instructions. Table 6 : Maintenance and service work and intervals.
  • Page 28 A.1 MAINTENANCE CHECKLIST Preparation Switch the drive electrically dead. Secure the main switch against use. Wait for the rotor to stop - this takes about three minutes. Wear protective clothing. Visual check (weekly) Type and warning plates clearly legible. No: Description and measures taken: Other contamination (e.g.
  • Page 29 Visual check and basic cleaning (annual) Fan basic checks must be carried out by Joh. Mueller Kunststoff GmbH and this documented. Advise Joh. Mueller Kunststoff GmbH. After basic cleaning the fan must be recommissioned in compliance with Chapter 0. Check earthing point conductivity. Motor maintenance See motor operating instructions.
  • Page 30 A.2 ML-/ MLF-75 Performance data 30/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 31 A.3 ML-/ MLF-110 Performance data 31/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 32 A.4 MLT-75 Perdormance data 32/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 33 MLT-110 Performance data 33/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 34 Scope of delivery 34/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 35 35/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
  • Page 36 Notes BE-ML75_110-V1 englisch 36/36 Lescheider Weg 6-8 • D-53773 Hennef-Bierth • Tel. +49 2248 9173-0 • Fax -79 • www.kunststoff-mueller.de...
