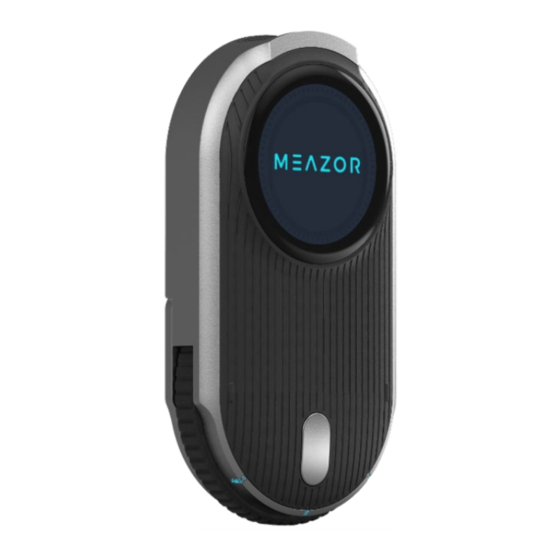

HOZO Design MEAZOR User Instructions

Multifunctional laser measure
Hide thumbs

Advertisement

Quick Links

Download this manual

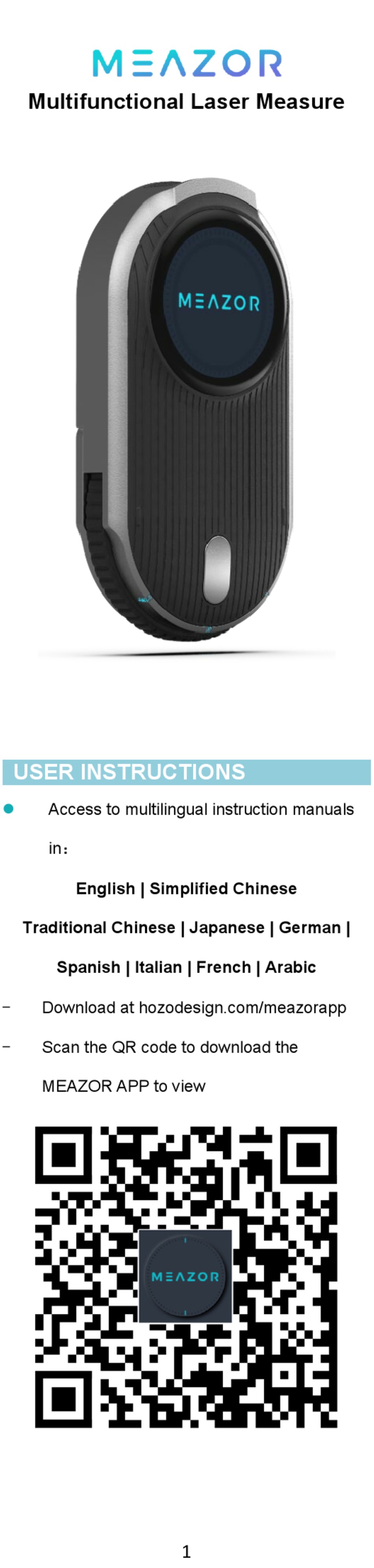

Multifunctional Laser Measure
USER INSTRUCTIONS
Access to multilingual instruction manuals
in：
Traditional Chinese | Japanese | German |
Spanish | Italian | French | Arabic
Download at hozodesign.com/meazorapp
-
Scan the QR code to download the
-
MEAZOR APP to view
English | Simplified Chinese
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEAZOR and is the answer not in the manual?

Questions and answers

Related Manuals for HOZO Design MEAZOR

Summary of Contents for HOZO Design MEAZOR

  • Page 1 USER INSTRUCTIONS Access to multilingual instruction manuals  in： English | Simplified Chinese Traditional Chinese | Japanese | German | Spanish | Italian | French | Arabic Download at hozodesign.com/meazorapp Scan the QR code to download the MEAZOR APP to view...

  • Page 2: Safety Instructions

    OVERVIEW The MEAZOR is a portable and multifunctional measuring device. It has an 82feet (25m) laser distance module and a 4096 grade rolling ruler module with high accuracy, as well as the ability to measure straight lines, curves, and compound shapes.

  • Page 3: Power Supply

    household waste. Please dispose of the product in accordance with the national regulations in force in your country/region. Scope of Responsibility: We will not be responsible for any damage caused by improper use below: Using the product without instruction;  Use of accessories from other ...
  • Page 4 the button for 3 seconds to switch on/off the device. Short press the button to return to the main menu. 4 Type C charging port  5 Tripod Hole - The hole is mounted on the  back of the roller, and you can tighten the tripod by turning the product's rollers clockwise.
  • Page 5 device remains inactive for up to 30 minutes, the device will automatically be switched off. Selecting functions You can swipe left and right on the main menu to switch between functions.Tap on the selected function icon to enter the function page. LASER MEASURE Middle: Tap on the number to record data Top: Measurement Units...
  • Page 6 Rear Align: measure along the bottom of the MEAZOR's roller as a starting point Stand Align: with the stand open, measure from the bottom of the stand Tripod Align: measure from the center of the tripod hole Front Align: measure from the top of the product.
  • Page 7 POINT SCANNER (FLOOR PLAN SCANNER) The Point Scanner is a patented function of MEAZOR. Place MEAZOR on a tripod or flat surface. The user can scan floor plans precisely by following the steps as follow: Aim laser at the corners/reference points - take the point - turn - repeat the operation.
  • Page 8 Save Data Basic Operations：  As shown in the diagram, place the MEAZOR in the middle of the room. Align the laser beam with point 1 and tap on it to record the first reference point, turn and align it with point 2, record, rotate, and align it with points 3,4,5 and record each time.
  • Page 9 ：Undo Basic operations：  As shown in the diagram, place the MEAZOR in the middle of the room. Align the laser beam with point 1 and tap on it to record the first reference point, slowly rotating MEAZOR to point 2 2.
  • Page 10 Step 1 - Select function Middle ：Slide to switch between functions ： Measurement Units Pythagorean Measurement – Measure side A, side B, and the angle ∠ab. The length of the third side is automatically calculated. Rectangular Area Measurement – Measure the length A and the width B.
  • Page 11 *Pro Laser data shown as a graphical result in the MEAZOR App. PROTRACTOR Place MEAZOR on a flat surface, rotate MEAZOR to measure the horizontal angle. While the angle is being measured, MEAZOR’s laser module can be used to locate the start/endpoint of the angle.
  • Page 12 More accessories of MEAZOR are available in MEAZOR APP or HOZODESIGN.com/meazor. Middle ：Angular dimension...
  • Page 13 ：Back to zero Bottom left: Laser-assisted positioning Bottom right: Degree/Index Mode LEVEL Place MEAZOR on a flat surface to use the electronic level function of MEAZOR. When the level is close to 0° (< ± 1°), the light point turns blue.
  • Page 14 12 hours and then try to switch it back on. Or contact your distributor for customer support services. MEAZOR cannot be found Please ensure that no by smartphone Bluetooth other devices are connected to the MEAZOR. ONLY use the MEAZOR...

  • Page 15: Warranty Policy

    WARRANTY POLICY Warranty period  HOZO Design. CO. - One-year Limited Consumer Warranty covers your product against manufacturing defects for one year from the date you bought your product. Special cases  The following cases are not covered by the warranty policy during the warranty period and will be repaired at extra cost.
  • Page 16 All rights of interpretation are reserved by HOZO DESIGN CO. All trademarks, images, technical data, and intellectual property rights are the properties of HOZO DESIGN CO., Limited and are subject to copyright infringement. Laser Radiation, Do Not Stare into Beam...
