1. Introduction
Thank you for purchasing this Modell-Zug Elektronix product. The Decoder Z83/84 was specifically designed as an
all-in-one digital accessory decoder to provide maximum versatility in the control of model railroad accessories.
Each of the decoder's four channels contain both momentary pulse outputs for controlling signal or turnout
solenoids and continuous switched outputs for supplying power to sidings, lighting circuits, or other accessories. In
this way, each independent channel of the decoder may be used in any one of three modes: Switch only, Pulse only,
or Switch & Pulse. This allows for various combinations of output types to fit the specific needs of a given layout
area without requiring multiple decoder types. And, since the Decoder Z83/84 utilizes the industry standard
Motorola digital data format, it is compatible and interchangeable with products from major manufacturers such as
Märklin, Uhlenbrock, Viessmann and others. Please study the following manual in its entirety to gain full utility and
enjoyment from this Modell-Zug Elektronix product.

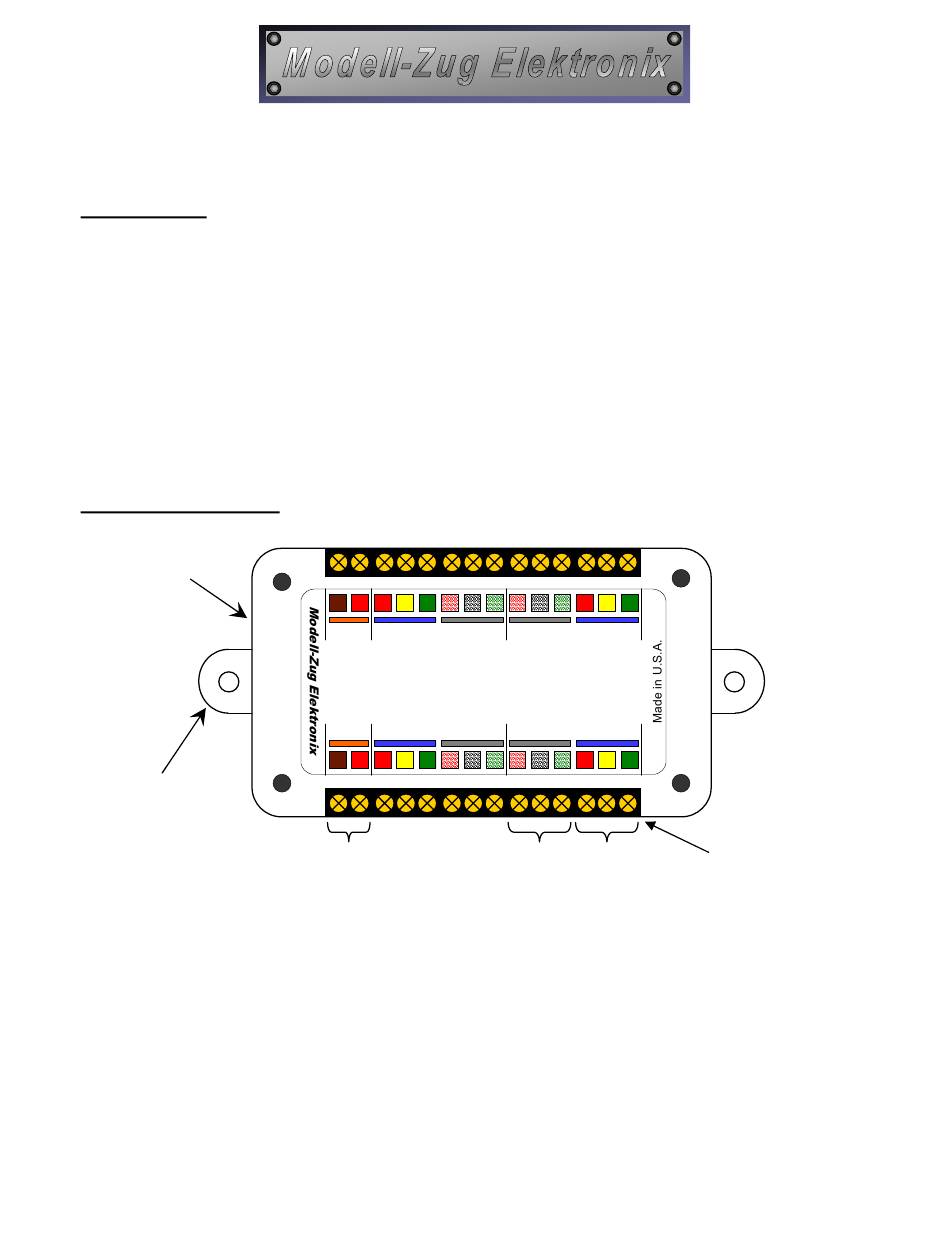

2. Overview of Features
Rugged ABS
Enclosure
Durable External
Mounting Points
Mechanical Specifications
Dimensions:
W 5.37 in.; D 2.63 in.; H 1.26 in. (inc. mounting flanges)
Weight:
5 oz.
Electrical Specifications
Power Consumption:
Input Voltage Range:
Input Data Type:
"Switch" Output Ratings:
"Pulse" Output Ratings:
All brand names, product names, and logos are the property of their respective owners or companies.
Decoder Z83/84
TRK
Pulse 4
Switch 4 Switch 3
Decoder
TRK
Pulse 1 Switch 1 Switch 2 Pulse 2
Compatible with
Motorola Digital
Data Format
0.1W typ.; (1W max. w/Pulse Output active)
±22V typ. (±28V max.)
9600 bps (Motorola Trinary Data Format)
2A max.; 30V max.
1.2A typ. (1.5A max.); 19V typ. (20V max.)
Page 1
Copyright © 2006 by Modell-Zug Elektronix.
Pulse 3
83/84
Z
Continuous
Momentary
Switched
Pulse
Outputs
Outputs
Universal
Terminal
Connections
Advertisement
Summary of Contents for Modell-zug elektronix Z83/84
- Page 1 Decoder Z83/84 1. Introduction Thank you for purchasing this Modell-Zug Elektronix product. The Decoder Z83/84 was specifically designed as an all-in-one digital accessory decoder to provide maximum versatility in the control of model railroad accessories. Each of the decoder’s four channels contain both momentary pulse outputs for controlling signal or turnout solenoids and continuous switched outputs for supplying power to sidings, lighting circuits, or other accessories.
- Page 2 Digital Address. By default, the Digital Address of each Z83/84 decoder is set to “01”, and must be changed if your application requires more than one decoder.
- Page 3 For this reason, each of the Switch outputs of the Z83/84 decoder may be individually enabled or disabled. This is made possible by the four Output Mode coding switches located inside the decoder. By default, all of these switches are set to “enabled.”...
- Page 4 Connection to Central Unit: Connection to Booster: Decoder Z83/84 Decoder Z83/84 Control Unit Central Control-I Transformer Keyboard Central Unit Transformer Booster Intellibox Figure 2. Connections to the Digital System Connection to Turnouts & Sidings: Decoder Z83/84 Action: Keyboard: W1 Straight; G1/G2 Power OFF W1 Curve;...
- Page 5 Connection to Signals & Uncoupler Tracks: Optional 1.5kΩ Ω Ω Ω Resistor Keyboard: Action: V1&H1 Orange V1&H1 Red Decoder Z83/84 V1&H1 Green U1 Activate U2 Activate (From Central Unit) Figure 4. Connections to Solenoid-Driven Accessories Page 5 www.modell-zug.com...
- Page 6 DC Motor (app. 14VDC) 4 x 1N4001 Diodes Action: Keyboard: AC Motor (app. 17VAC) M1 Forward M1 Reverse Decoder Z83/84 M2 Forward M2 Reverse M3 Forward M3 Reverse DC Motor (app. 7VDC) 2 x 1N4001 Diodes (From Central Unit) Transformer Figure 5.
