Summary of Contents for Helge Nyberg Ergobjorn

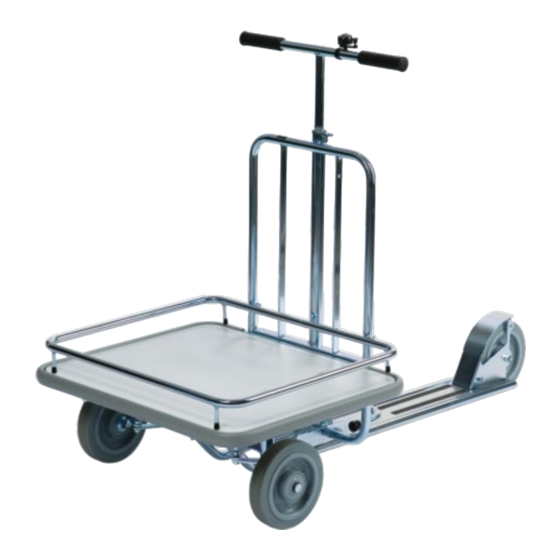

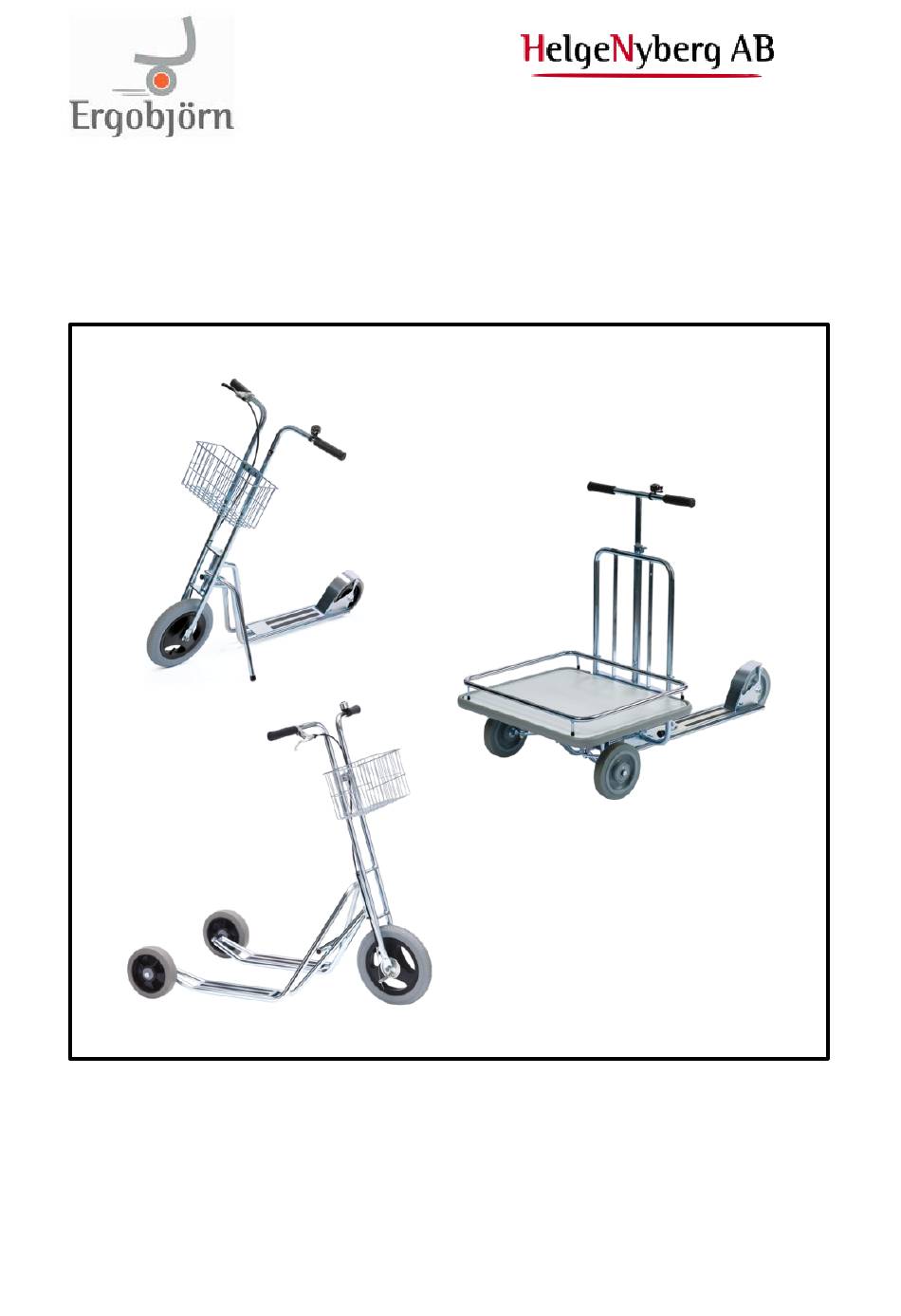

- Page 1 User manual Ergobjörn scooter bike and scooter trolley Helge Nyberg AB Publication date: 2015-11-01 Industrivägen 1 523 90 Ulricehamn, Sweden...
-
Page 2: Table Of Contents
Index Foreword ..........................3 About the user manual ......................3 Introduction ......................... 3 Warnings and symbols ....................4 Safe use ..........................4 The user’s responsibility ....................4 Managing the load ....................... 5 Parking the scooter ...................... 5 Other dangers and risks ....................5 Modification of the scooter .................. -
Page 3: Foreword
Helge Nyberg AB constantly develop the products. We therefore have the right to make changes and that no claims can be made on the basis of the information in this user manual. -
Page 4: Warnings And Symbols
2.2 Warnings and symbols DANGER Indicates a dangerous situation which - if not prevent - will lead to fatal or serious injury. WARNING Indicates a dangerous situation which - if not prevent - will lead to fatal or serious injury. Note! Used with actions that can lead to property damage but no injuries. -
Page 5: Managing The Load
3.2 Managing the load Manage only loads that are within the scooter’s authorized capacity. Manage only the load that is stable and firmly fixed. Manage high loads with special caution. 3.3 Parking the scooter Use the parking space if there is any. ... -
Page 6: Modification Of The Scooter
3.5 Modification of the scooter Only approved modification of the scooter is allowed. No changes of the scooter, affecting performance, stability or security, may be made without written authorization from the manufacturer, it’s representative or it’s successor. Only if the manufacturer does not exist anymore and the successor is missing, the user of the scooter can arrange modification by •... -
Page 7: Main Components
4.4 Main components a) Front wheel with brake b) Basket c) Handlebar with handbrake d) Bell e) Rider platform f) Parking stand A) Platform B) Handlebar C) Bell D) Rear E) Rider platform with footbrake... - Page 8 a) Front wheel with brake b) Basket c) Handlebar with handbrake d) Bell e) Rider platform...
-
Page 9: Controls
5 Controls 5.1 Handbrake To slow the scooter down – pull the brake to the handlebar. 5.2 Parking stand To unfold the parking stand – turn the handlebars with a definite movement fully to the right. To fold the parking stand – turn the handlebars fully to the left until the parking stand remains in the folded position. -
Page 10: Footbrake
5.3 Footbrake To slow the scooter, push the brake pedal down. Footbrake If the brake is damaged, do not use the scooter. 6 Work with the scooter 6.1 Check before use To maintain security, the daily check will always be performed when the working day or shift begins. -
Page 11: Driving
Periodic Maintenance. The safety, efficiency and durability depends on service and maintenance. Use only spare recommended by Helge Nyberg AB for service and repair. Maintenance work for the user The user should perform daily checks according to the instructions in chapter... -
Page 12: Cleaning And Washing
8.2 Cleaning and washing Clean the scooter regularly to extend the durability. Sweep of the scooter (every week) Wipe the scooter with a damp cloth (every week) When necessary, use degreaser with the appropriate concentration. Do not wash the scooter with running water. 8.3 Periodic Maintenance Periodic Maintenance of the scooter must be performed in intervals: After long use (3-12 months depending on how often it’s used) the following needs to... -
Page 13: Technical Data
10 Technical data 10.1 Scooter Information on the technical data for the standard version of the scooter. Variations may occur. Specifications 24199065 Scooter Manufacturer Helge Nyberg AB Model Ergobjörn Designed for user 120 kg Wheels Elastic/rubber Wheel size Front/back 310/200 mm...
