Summary of Contents for Electriq Power WND-WR-MB

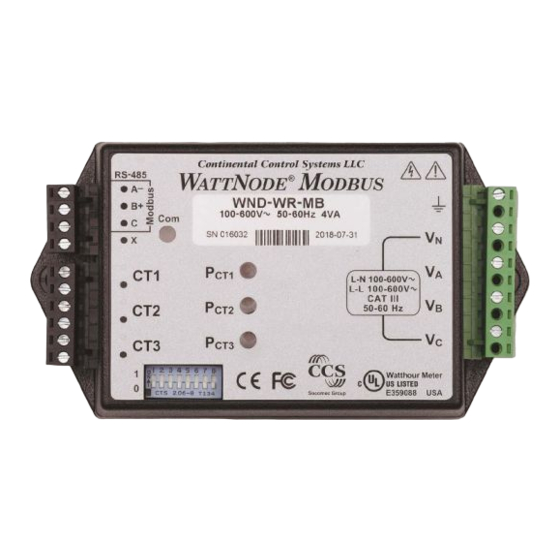

- Page 1 The Smart Home Battery Solution Quick Install Guide for the Electriq Power PowerMeter Model Number: WND-WR-MB V. 043120...
- Page 2 Important Safety Warnings IMPORTANT SAFETY WARNINGS PLEASE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS ON THE UNIT AND THIS MANUAL BEFORE USING THE POWERMETER. AND, STORE THIS USER MANUAL WHERE IT CAN BE ACCESSED EASILY. Safety Symbols Read, understand, and follow all instructions including warnings and precautions before installing and using the product.
- Page 3 Important Safety Warnings • The terminal block screws are not insulated. Do not contact metal tools to the screw terminals if the circuit is live! • Verify that circuit voltages and currents are within the proper range for the meter model. •...
- Page 4 Installation 3. Installation 3.1 Installation Checklist See the sections referenced below for installation details. Turn off power before making line voltage connections. Mount the meter (see 3.2). Connect circuit breakers or fuses and disconnects (see 3.3.1). Connect the line voltage wires to the meter’s green terminal block (see 3.3.2).
- Page 5 Always turn off power before connecting the line voltage inputs to the meter. For the line voltage wires, Electriq Power recommends 18 to 12 AWG stranded wire, type THHN, MTW, or THWN, 600 V. Use copper conductors only. The screw terminals are only rated for copper wire.
- Page 6 Installation Connect Current Transformers WARNING: To reduce the risk of electric shock, always open or disconnect circuit from power- distribution system or service of the building before installing or servicing current transformers. Use only the CTs provided in the meter kit. They are matched and configured for the meter.
- Page 7 There are no diagnostic tests that can be performed by the installer. In the event of any failure, the meter must be returned for service (contact Electriq Power Support for an RMA at support@electriqpower. com).
- Page 8 www.electriqpower.com 14451 Catalina Street San Leandro, CA 94577...
