Summary of Contents for Bercomac 700452

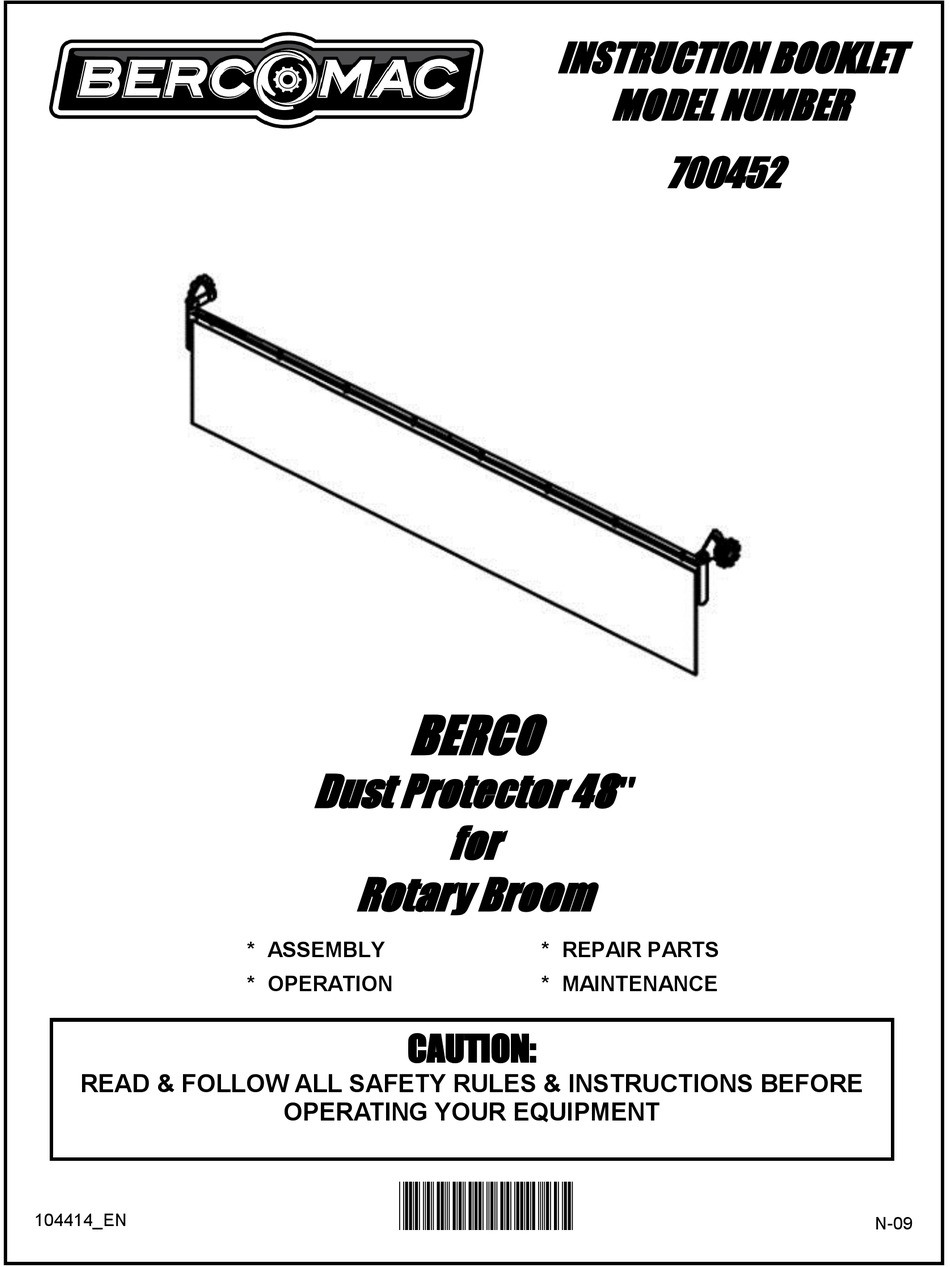

- Page 1 INSTRUCTION BOOKLET MODEL NUMBER 700452 BERCO Dust Protector 48 " Rotary Broom * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT *104414_EN* 104414_EN N-09...
- Page 2 NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured.
- Page 3 ASSEMBLY NOTE: It is recommended to remove the hood from the rotary broom to install the dust protector. Use the reinforcing angle (item 2) to drill the 1/8" (.125") dia. holes under the front part of the hood (item 1) as shown. NOTE: To make sure to have an even distance between the holes, there is a way to place the brace angle.
- Page 4 ASSEMBLY Use the drilling template supplied in with this booklet to drill two 11/32" (.343") dia. holes required to install the right and left supports. Install from the inside of the hood, the shim (item 1) with two carriage bolts 5/16 x 1" (items 2 & 3). Install on the outside, two flat washers (item 4) on the bolts, the left support plate (item 5) (round hole on bolt 2 and the slotted end on bolt 3) and the knob...
- Page 5 PARTS BREAKDOWN DUST PROTECTOR...
- Page 6 PARTS LIST DUST PROTECTOR Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Left support plate Plaque de support gauche 104684 Right support plate Plaque de support droit 104685 Tube Tube 104692 Shim Cale 104687 Rubber flap 48" Rabat de caoutchouc 48"...
