Installation Manual

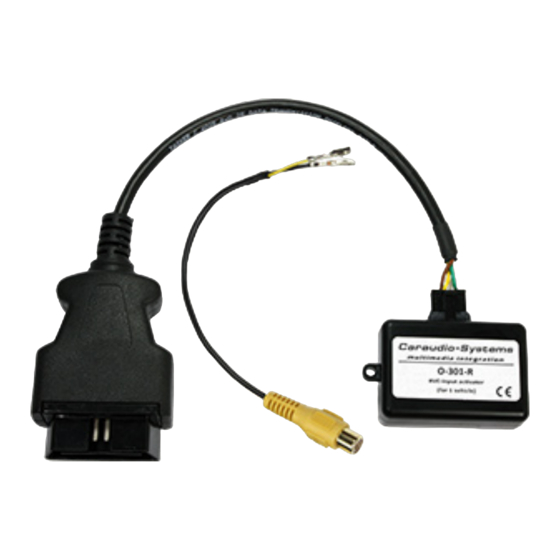

Rear-view camera OBD-coder
for VW RNS315/Amundsen,
RNS510/Columbus navigation systems
and RCD510 radio with 26pin connector
as well as Audi MIB MMI Navigation and
VW MIB Composition Media
Delivery contents
Take down the SW-version and
HW-version of the interface boxes,
and store this manual for support
purposes.
HW______________
SW______________
Legal Information
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 24.11.2016
O-301-R
O-301-R
O-301-R
Advertisement
Table of Contents
Summary of Contents for MARKETEERS O-301-R
- Page 1 Installation Manual O-301-R Rear-view camera OBD-coder for VW RNS315/Amundsen, RNS510/Columbus navigation systems and RCD510 radio with 26pin connector as well as Audi MIB MMI Navigation and VW MIB Composition Media Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support O-301-R purposes. HW______________ SW______________ Legal Information Changes/updates of the vehicle’s software can cause malfunctions of the interface. We offer free software-updates for our interfaces for one year after purchase. To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 24.11.2016 O-301-R...
- Page 2 PDC screen In some vehicles with MIB system, the PDC screen must be manually deactivated after automatic camera shutdown Installation Vehicle with RNS315/Amundsen and RCD510 1. On RCD510 ensure that there is a 26pin connector on the rear 2. Locate OBD-port and remove cover 3. Turn on ignition (pos. 2) 4. Wait until the head-unit has booted 5. Plug coder into OBD-port 6. Leave coder for about 30 seconds in OBD-port 7. Remove coder from the OBD-port To reverse the coding repeat steps 2.-7. Vehicle with RNS510/Columbus 1. Locate OBD-port and remove cover 2. Turn on ignition (pos. 2) 3. Wait until the head-unit has booted 4. Plug coder into OBD-port, message “DIAG” is shown in the display 5. Leave coder for about 30 seconds in OBD-port 6. Remove coder from the OBD-port 7. A reset is necessary. Press buttons Tr+, Tr- and * together and hold them until the reset is done. To reverse the coding repeat steps 1.-7. Version 24.11.2016 O-301-R...
- Page 3 Vehicle with MIB Composition Media und MIB MMI Navigation 1. On RCD510 ensure that there is a 26pin connector on the rear 2. Locate OBD-port and remove cover 3. Turn on ignition (pos. 2) 4. Wait until the head-unit has booted 5. Plug coder into OBD-port 6. Leave coder for about 30 seconds in OBD-port 7. Remove coder from the OBD-port To reverse the coding repeat steps 2.-7. Note: After the first use on a vehicle, the coder O-301-R is personalized to this vehicle (head- unit) and can be used unlimited times to code or reverse coding on this vehicle. Rear-view camera video connection Vehicle with RNS315/Amundsen, RCD510 and RNS510/Columbus The video interface "RL-MFD3" is additionally required for these systems (available seperately). Vehicle with MIB Composition Media und MIB MMI Navigation The video cable included in the set is connected to the MIB Quadlock connector: Cable colour Assignment ●/●/● Colored (video) Chamber B - Pin 6 ● Black (ground) Chamber B - Pin 12 Version 24.11.2016 O-301-R...
- Page 4 LED information: LED Status Explication Lights Coding procedure successfully completed Green Flashes Coding process is running Lights Remove coding procedure successfully completed Red Flashes Coding process failed / license violation Green + Red Lights CAN Communication Error! - Abort of the diagnostic session Technical Support MARKETEERS No. 225/1, 1st Floor, 4th Cross, Lalbagh Road, Bengaluru - 560027 Email: info@marketeers.co.in Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners. Version 24.11.2016 O-301-R...
