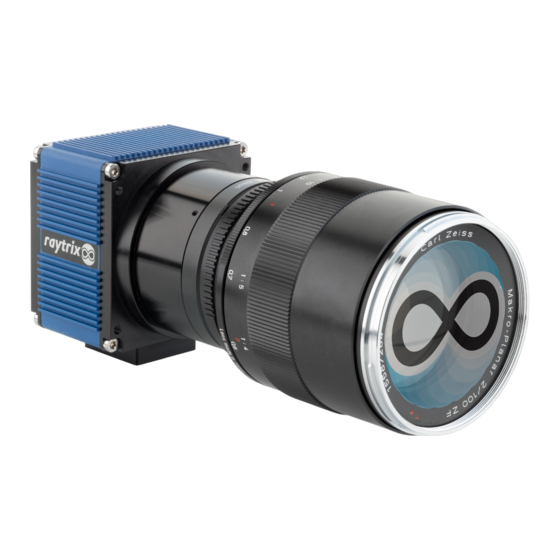

TypeD R29 CameraLink Triggering Guide
Software setup
• Make sure any old software for interfacing with the Camera is uninstalled (RxLive 2.8,
TypeD 2.8 camera drivers, TypeCL 2.8 FrameGrabber drives, ConvCam 3, ConvCam 4)
• Make sure that the newest version of the Euresys MultiCam software for your Euresys
Grablink Full FrameGrabber is installed
• Install the newest version of RxLive, CL Euresys FrameGrabber drivers and TypeD
camera drivers
• Install the RxCalibData for your camera
Connecting the camera
• Connect the camera using the two supplied CameraLink cables
• Make sure the cables are connecting the camera and the FrameGrabber in the right
way:
Geschäftsführer: Dr. habil. Christian Perwaß, Dr. Lennart Wietzke
Ust-IdNr.: DE264446080 · Finanzamt Kiel-Nord
Förde Sparkasse · Konto: 1400055669 · BLZ: 21050170
BIC: NOLADE21KIE · IBAN: DE38 2105 0170 1400 0556 69
raytrix GmbH
Schauenburgerstraße 116 · D-24118 Kiel · Germany
Telefon: +49 (0)431.5606-240 · Fax: +49 (0)431.26090065
info@raytrix.de
·
www.raytrix.de
Advertisement
Table of Contents
Summary of Contents for Raytrix R29
- Page 1 TypeD R29 CameraLink Triggering Guide Software setup • Make sure any old software for interfacing with the Camera is uninstalled (RxLive 2.8, TypeD 2.8 camera drivers, TypeCL 2.8 FrameGrabber drives, ConvCam 3, ConvCam 4) • Make sure that the newest version of the Euresys MultiCam software for your Euresys Grablink Full FrameGrabber is installed •...
- Page 2 · We sharpen your image! raytrix GmbH Schauenburgerstraße 116 · D-24118 Kiel · Germany • The cables should connect the ports with the same numbers • If the camera is not detected at all in RxLive, the first step is to check the cables •...
- Page 3 Schauenburgerstraße 116 · D-24118 Kiel · Germany Setup for external triggering • Use the triggering cable supplied by Raytrix and connect it to the Hirose connector of the camera (marked „C“ in picture below) • The cable is wired to the connector as follows: •...
- Page 4 · We sharpen your image! raytrix GmbH Schauenburgerstraße 116 · D-24118 Kiel · Germany Configuration of RxLive • Start RxLive • Activate the „External Trigger“ Checkbox in the camera control tab of RxLive: www.raytrix.de...
- Page 5 • If you wish to use the PIV mode, activate the checkbox for PIV mode • The R29 can be triggered in external trigger mode at up to 5.9 frames per second • Using a faster trigger impulse frequency will result in lost frames PIV mode •...
