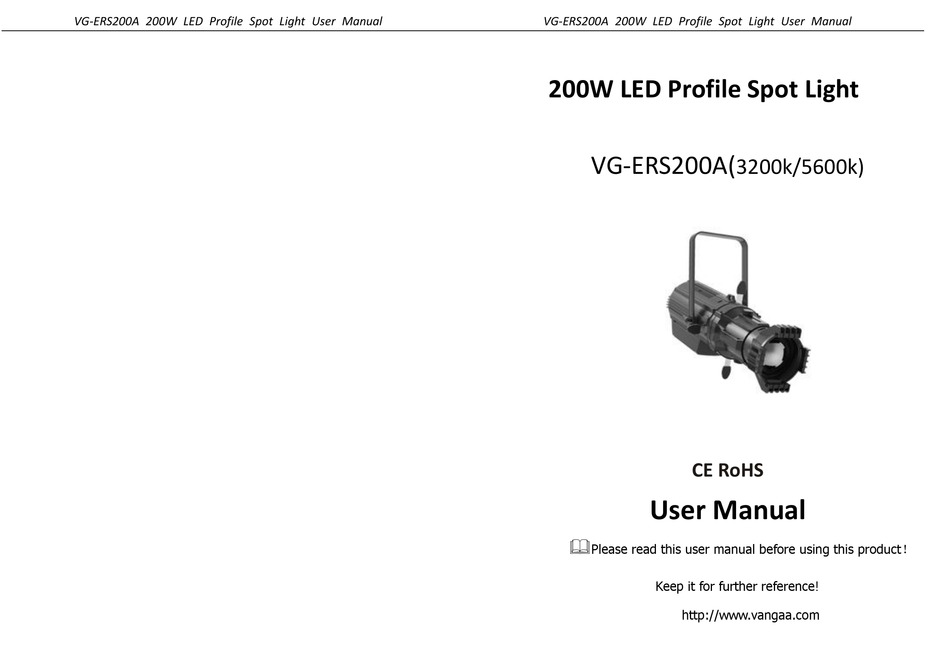

- Page 1 VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual 200W LED Profile Spot Light VG-ERS200A( 3200k/5600k) CE RoHS User Manual Please read this user manual before using this product！ Keep it for further reference!
- Page 2 VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual Thank you for using our product! Please read this manual carefully and completely. For technical reference in future, please keep this user manual well. This user manual contains all installation and operation information of this LED Profile Spot Light, it’s very useful for...
- Page 3 VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual Light source: 200W LED Gobo frame Power supply: AC100V-240V, 50/60Hz DMX cable Power consumption: 200W Power cable DMC Chanel: 1CH User Manual Color temperature: 3200K/5600K CRI: Ra≥95...
- Page 4 VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual Ⅲ INSTALLATION The device against rain and moisture ② Warning note 1. Installation Power Supply AC100v-240v,50HZ/60HZ When installation, keep the device far away the heat sensitive objects and explosives ...
- Page 5 VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual Please use qualified xlr-xlr dmx cables 3. Connection with mains The person involved with the power connection must be qualified, and has the ...
- Page 6 VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual 5. The use of gobo frame Take out the gobo frame ,loose the screws, insert the gobo and lock the screws again Insert the gobo in the slot ...
- Page 7 VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual Operation of Supplementary LCD SHOW Function Instruction Buttons Instruction ◆The temperature of LED T=xxxC bulb radiator in real time (Celsius) ◆If there is no this...
- Page 8 VG-ERS200A 200W LED Profile Spot Light User Manual VG-ERS200A 200W LED Profile Spot Light User Manual 3. Basic setting AC100-240V, 50/60Hz DMX 512 M ETTING Check the power connection, and Press ENTER when the display show the title information; make sure device connect the mains Press UP/DOWN to choose the Mode menu, then press ENTER into;...
