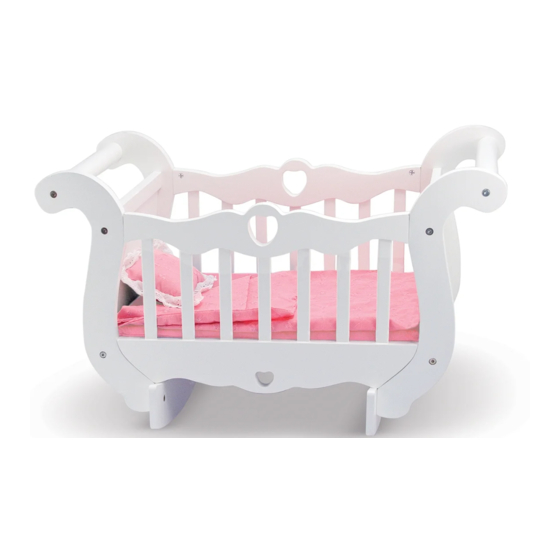

9385 WOODEN DOLL CRIB
Assembly Instructions
We care about your comments. Please call us!
!
WARNING:
!
WARNING:
1-800-284-3948
Adult assembly required.
CHOKING HAZARD- Small parts.
Not for children under 3 years.
www.MelissaAndDoug.com
c
2013 Melissa & Doug, LLC, P.O. Box 590, Westport, CT 06881
Item #
9385
All Rights Reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9385 and is the answer not in the manual?

Questions and answers

Related Manuals for Melissa & Doug 9385

Summary of Contents for Melissa & Doug 9385

  • Page 1 9385 WOODEN DOLL CRIB Assembly Instructions We care about your comments. Please call us! WARNING: WARNING: 1-800-284-3948 Adult assembly required. CHOKING HAZARD- Small parts. Not for children under 3 years. www.MelissaAndDoug.com 2013 Melissa & Doug, LLC, P.O. Box 590, Westport, CT 06881...
  • Page 2 9385 WOODEN DOLL CRIB Parts (B) 2 Pieces (C) 2 Pieces (A) 2 Pieces (D) 2 Pieces (F) 2 Pieces (E) 2 Pieces Mattress 1 Piece (G) 1 Piece Pillow 1 Piece Blanket 1 Piece HARDWARE (Shown Actual Size) Barrel Nut...
  • Page 3 9385 WOODEN DOLL CRIB How to correctly install Barrel Nuts (Images on this page are for example only.) Press a Barrel Nut into the hole in the part making sure that the "+" pattern is facing out. "+" pattern Using a standard screwdriver, turn the Barrel Nut until the threaded hole is facing outward to accept the screw shown below.
  • Page 4 9385 WOODEN DOLL CRIB STEP 1 Assemble parts (B) and (C) to part (A) using 4 Long Screws and 4 Barrel Nuts as shown below. Repeat the same for the second side using the additional parts (A), (B) and (C).
  • Page 5 9385 WOODEN DOLL CRIB STEP 2 Assemble 2 parts (D) as shown using 4 Medium Screws and 4 Barrel Nuts. Make sure to face the holes for the Barrel Nuts on part (D) inward for a smooth look on the outside of the Crib.
  • Page 6 9385 WOODEN DOLL CRIB STEP 3 Attach 2 parts (E) as shown using 2 Short Screws Short Screw 2 pieces for this Step Completed assembly...
  • Page 7 9385 WOODEN DOLL CRIB STEP 4 Attach the second Side Assembly that you made in Step 1 as shown below using 4 Barrel Nuts, 4 Medium Screws and 2 Short Screws. Short Screw Medium Screw 4 pieces for Short Screw...
  • Page 8 9385 WOODEN DOLL CRIB STEP 5 Assemble 2 parts (F) as shown below using 4 Medium Screws and 4 Barrel Nuts. Barrel Nut 4 pieces for this Step Note: This side of part (F) is recessed for the head of the Screw.
  • Page 9 9385 WOODEN DOLL CRIB STEP 6 Fit part (G) to the assembled Crib by tipping one end in first, then lowering the opposite end. Add the Mattress, Blanket and Pillow and you are ready to play! Completed assembly...
