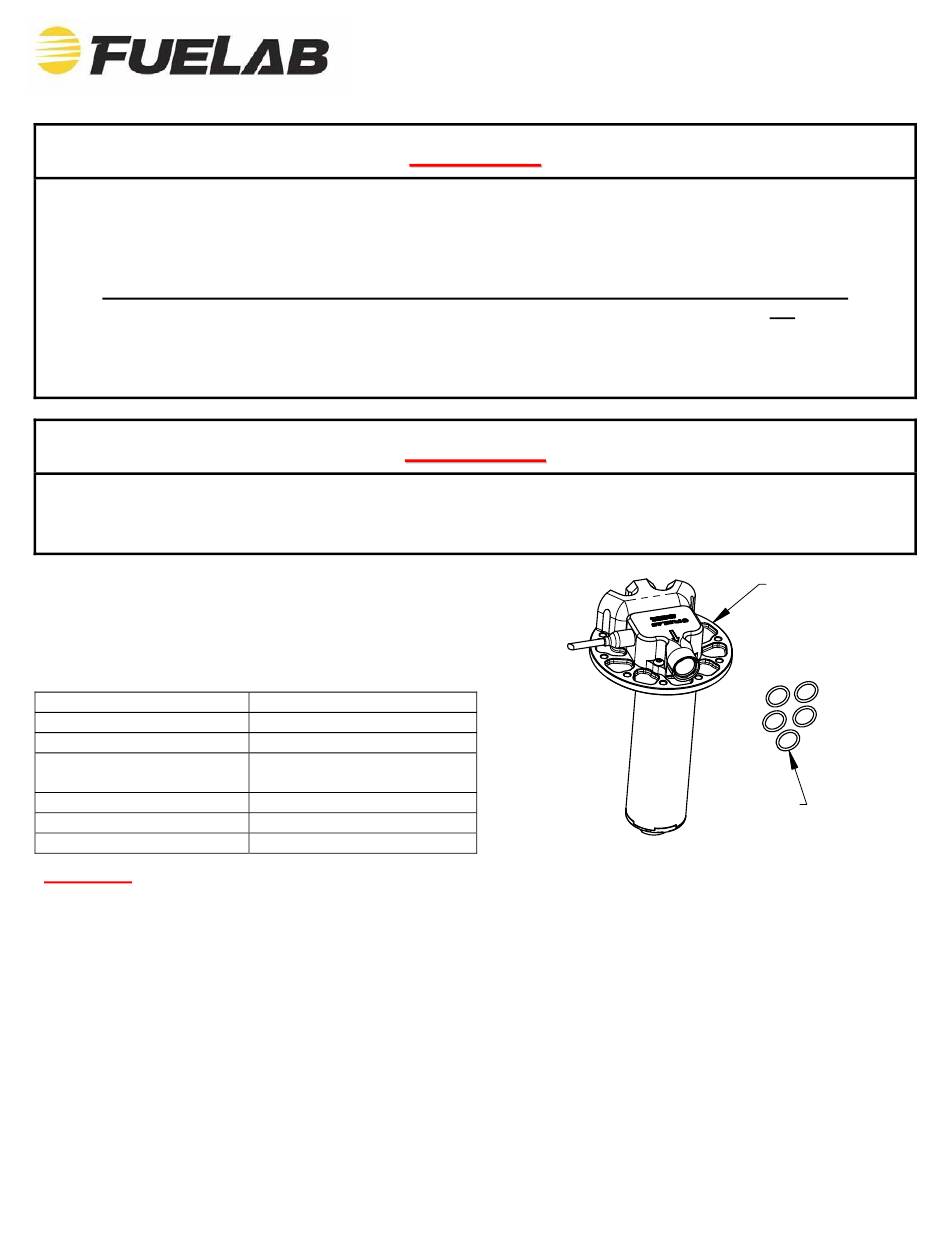

Operating and Installation Instructions
This product is to be installed only by persons knowledgeable in the repair and modification of vehicle fuel systems
and general vehicle systems modification. Only a qualified technician or mechanic who is aware of applicable
safety procedures and fabrication skills should perform the installation of this product.
This fuel pump utilizes an electronic DC motor system that is not typical of conventional fuel pumps, and therefore
extra precautions must be adhered to as contained in instructions herein
GASOLINE AND OTHER FUELS ARE FLAMMABLE AND CAN BE EXPLOSIVE!
Perform the installation in a well ventilated location only to minimize the build up of fuel vapors. NO open flames,
smoking or other sources of ignition are to be present during installation, to prevent fire or explosion that can cause
serious injury or death. Grinding, cutting, and drilling must be performed with care to prevent ignition. Draining and
removal of all fuel and ventilation of vapors in vehicle and fuel system is recommended when performing such
procedures. Proper eye and personal protection is required at all times during installation.
The Vehicle's fuel system may be under pressure! Do not loosen any fuel connections until relieving all fuel system
pressure. Consult an applicable service manual for instructions to relieve fuel system pressure safely.
This product is intended for racing, off-road, or marine use only. This fuel system component may not be legal for
sale or use on emission controlled motor vehicles; consult local, state and national laws.
Product Contents:
Check the diagram and list of components (right)
to ensure that no components are missing from
box. Contact your Fuelab distributor immediately
for replacement.
93902 Features and Performance Ratings:
Inlet Port Size
Outlet Port Size
Fuel Cell Ports
Rated Flow Rate
Maximum Pressure
Operating Voltage
Maximum Current Draw
WARNING!
Power Supply Voltage must be constant as specified in above specification. Only install fuel
pump on vehicles using 12 Volt (6 cell lead acid battery) with or without a normal operating alternator
charging system. Pulse-Width Modulation or other means of reducing input power voltage may result
in erratic or non-operational condition.
Before Installation, Plan Entire Fuel System:
A complete design plan of entire fuel system must be created for the specific application. These instructions are a
guide to help design this plan with respects to integrating this model of fuel pump only. Consult other sources of
information and manufacturer's instructions for the various components of the fuel system. These instructions are
limited to general topics of fuel pump kit installation and may not include specific information pertaining to your
specific application. These instructions are written assuming the use of Multi-Point Electronic Fuel Injection using a
standard return (bypass) style fuel pressure regulator. This fuel pump kit may be integrated in some general
carbureted systems using a bypass system. Visit our company website (www.fuelab.com) for specific details
pertaining to example fuel systems and other solution ideas. Additional information including advanced
troubleshooting, any special alerts and FAQ's pertaining to this and other products is also available. A good design
plan for the fuel system must contain consideration for: pressure and flow rate through various components, quality
of components, operating environment (temperature, vibration, shock, general exposure to elements) and local area
laws. Begin installation of fuel pump only after a complete plan is established to help avoid fuel system component
failure, costly rework, and excessive installation time.
C
A
U
C
A
U
W
A
R
W
A
-8AN Military Port
-8AN Military Port
3x -8AN Military Ports
92 GPH @ 45 PSI,13.5V
(350 LPH @ 3 Bar)
125 PSI (8.5 Bar)
8-18 Volts
20 Amperes

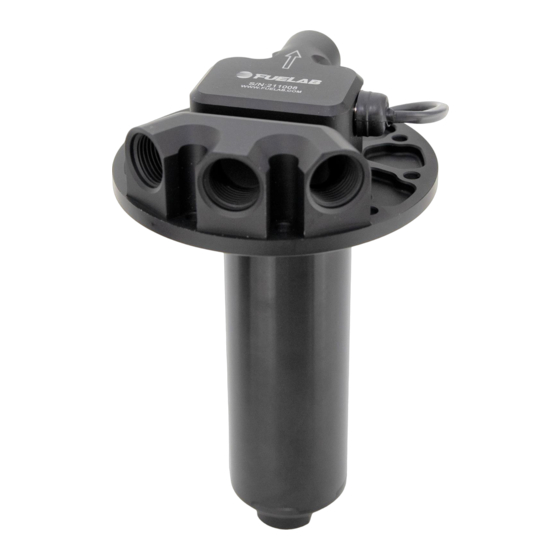

Model Number 93902
Flange Mount Fuel Pump
T
I
O
N
!
T
I
O
N
!
N
I
N
G
!
R
N
I
N
G
!
Fuel Pump
5x Port O-rings
110021252-1, No Rev
Sheet 1 of 6
Advertisement
Table of Contents
Related Manuals for Fuelab 93902
Summary of Contents for Fuelab 93902
- Page 1 (bypass) style fuel pressure regulator. This fuel pump kit may be integrated in some general carbureted systems using a bypass system. Visit our company website (www.fuelab.com) for specific details pertaining to example fuel systems and other solution ideas. Additional information including advanced troubleshooting, any special alerts and FAQ’s pertaining to this and other products is also available.
- Page 2 (not supplied) Fuel Filter with 60 Micron or Lower Particle Rating is Required. Y-Block or "T" Fitting, Fuelab Filter with 6, 10 or 40 to Split Flow into Two Micron Rating is Recommended. Fuel Rail System. Check Valve is required for Reduced...
- Page 3 Electrical Planning Notes: SPECIAL NOTE: The three wires coming from the supplied fuel pump (Red, Yellow and Black 16 gage stranded wires with Teflon insulation) come directly from the motor’s stator internal windings. The color and order of these three wires determines the rotational direction of the fuel pump. During initial operation, direction of motor (and therefore direction of flow) requires it to be determined.
- Page 4 Turn off fuel system and repair any leaks that may be present before continuing. 7. When adjusting pressure, be sure that fuel pump is operating to monitor pressure. Fuelab recommends to use a “baseline” pressure reference when adjusting the pressure (adjusting the pressure with engine off or pressure reference line or vacuum line unhooked).
- Page 5 "clicking" sound when If voltage is steady and consistent (within 1/2 Faulty, dirty or corroded turned on. Volt of battery) then contact Fuelab for terminals or improperly assistance or repair. If voltage is inconsistent sized wire. as described, repair or replace electrical Debris from tank or components as required.
- Page 6 30 days of purchasing the Product. If something goes wrong with your product contact FUELAB at 618-344-3300, or send an e-mail to: info@fuelab.com for a Return Authorization Number (RMA). After receiving your RMA send it postage paid, fully...
