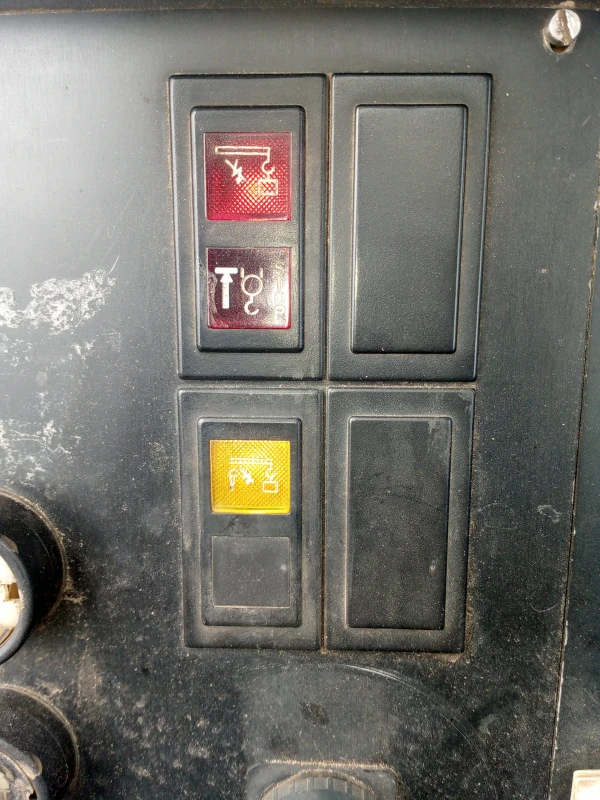

Hi ,l have an issue,on my EKS83 ,on display it's showing E A on left side E continue flashing, shutdown warning lamp on

Summary of Contents for SkyAzúl Krupp EKS 83

Page 1 Krupp EKS 83 Service Manual...
Page 3 NOTICE SkyAzúl makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and/or its fitness for a particular purpose. SkyAzúl will not be liable for errors contained in this manual or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.
Page 5: Table Of Contents
Table of Contents EKS Load Moment Indicator ......................... 3 The combined Console and Central Unit .................... 3 Load Moment Indicator .......................... 4 Description of Operation .......................... 4 Operator’s Cab – Dash Panel ........................ 5 A typical component layout ........................ 5 EKS 83 Combined Console and Central Unit – Components .............. 6 Remote External Components ........................ 7 LMI Boom‐Length and‐‐Angle‐Sensors and Transmitters‐ .............. 7 Boom‐Angle‐Sensor and Transmitters Box‐ .................. 7 Reeling Drum Potentiometer ........................ 8 LMI – Transmitter for Pressure Transducers .................. 8 Selection of lifting capacity chart ...................... 9 Selection of lifting capacity tables .................... 9 Calculation of the radius ........................ 9 Calculation of the reference value .................... 9 Calculation of the load ........................ 9 ...
Page 6 Information display shows letter c: .................... 16 Information display shows letter d: .................... 17 Information display shows letter e: .................... 19 Information display shows letter f: ..................... 20 Information display shows letter g: .................... 21 Information display shows letter t: ..................... 23 SkyAzúl, Equipment Solutions www.skyazul.com 301‐371‐6126 ...
Page 7: Eks Load Moment Indicator
EKS Load Moment Indicator The combined Console and Central Unit SkyAzúl, Equipment Solutions www.skyazul.com 301‐371‐6126 ...
Page 8: Load Moment Indicator
Load Moment Indicator Description of Operation Note: This-description is for the general layout of the EKS.83.and does not appertain to any specific system fitted to any Model, i.e. the number of Boom Length reeling drums and associated transmitters will vary from Model to Model. ...
Page 9: Operator's Cab - Dash Panel
Operator’s Cab – Dash Panel A typical component layout The dash panel shown is for a GMK407. The position of components in other models may vary and some items might not be fitted. 1. Plug-in module lOA, fuses FI (F1/8). Plug-in module 9.5A, with LMI shutdown circuit (relay K1). 3.
Page 10: Eks 83 Combined Console And Central Unit - Components
EKS 83 Combined Console and Central Unit – Components Mounting screws - Instrument panel “ON" light Supply voltage indicator light Information switch "a" to "k" Capacity utilization in % Hook height in m Main boom length in m Main boom angle in degrees function Piston surface pressure in derricking cylinder In bar ...
Page 11: Remote External Components
Remote External Components Below is the layout for the length & Angle transmitters on a GMK. 4070. Other models in the GMK range will have more length reeling drums on the side of the boom and corresponding number of transmitters. LMI Boom‐Length and‐‐Angle‐Sensors and Transmitters‐ ...
Page 12: Reeling Drum Potentiometer
Reeling Drum Potentiometer Using-a-screwdriver to set the Length Potentiometer to the anti-clockwise position, with the Boom fully retracted LMI – Transmitter for Pressure Transducers Data Transmitter Annular/Ring side pressure Data Transmitter Full/Piston side pressure ...
Page 13: Selection Of Lifting Capacity Chart
Selection of lifting capacity chart Selection of lifting capacity tables The system selects the correct lifting capacity according to the operating mode set on the central unit and current boom configuration (length, telescope status, boom length). Calculation of the radius The radius is calculated from the boom length and angle as well as from the boom load derived from the hydraulic pressure measured in the derricking cylinder, taking the deflection of the boom Into consideration.
Page 14: Data Translation And Transmission
Data Translation and Transmission The measured values are digitized in the Data Transmitters, converted into signals and transmitted time- delayed as impressed current via the common dual-line data bus to the central unit. Transmitter Boards All transmitter Boards fitted on a machine are the same part number. The system each board is monitoring is identified to the CPU by the number and configuration of Links (Jumper wires). ...
Page 15: Checking Data Transmitters
Between 0 - 3 links (inclusive) can be fitted to each board. This will give up to 8 Permutations of configuration. Each configuration, varies the 'Output Signal' level of the transmitter board onto the Data Bus, thereby giving it a unique signature, therefore we can have up to 8 transmitters with different output signals on 1 Data Bus.
Page 16: Fault Diagnosis Flow Charts
4. Select sequentially all positions of the Information-switch (S2) and note all information displayed in the Information display (P5) 5. What operating Code is dialed into the 3x switches 6. What Number is dialed into the 2x Reeving Switches Fault Diagnosis Flow Charts No Buzzer or Displays ...
Page 17: Lmi Shutdown! Red Lamp On - Release Button Does Not Respond
LMI Shutdown! Red Lamp on – Release button does not respond Overload Leave overload range, Press SLI release button Call up SLI fault code Press and hold release button down One of the letters "abcdefghijk" is ...
Page 18: Information Display Shows Letter A
Information display shows letter a: TEXT: “a=1” Select correct operating mode Non-authorized operating mode Press LMI release button (S1) selected TEXT: “a=2” Central unit faulty. Operating mode switch faulty Call SkyAzul: 301-228-6086 ...
Page 19: Information Display Shows Letter B
Information display shows letter b: TEXT: “b=1” a. Customer 'Options' Not Incorrect crane model registering with CPU. b. Telescope section No 1 not locked (check lock system) TEXT: “b=2 & 3” Check position of additional Additional operating mode switch ...
Page 20: Information Display Shows Letter C
Information display shows letter c: Inspect components & bus lines TEXT: “c=1” from -customer options for -damage Customer Options not registering to / faulty connections OR Lock / the CPU OR Telescope section Nol inspect locking mechanism of tele not locked ...
Page 21: Information Display Shows Letter D
Remove SU central unit (remove retaining screws, pull central unit out Information display shows letter d: of Instrument panel), replace fuse (1.25 A) TEXT: “d=1" to “ 6" Voltage supply to all data transmitters Fuse blown again: Short circuit in failed;...
Page 22 Note: When replacing Transmitter Boards ensure the Link wires are transferred to the same position on the new board. Switch connections 10-17 are only used on older GMT models. SkyAzúl, Equipment Solutions www.skyazul.com 301‐371‐6126 ...
Page 23: Information Display Shows Letter E
Information display shows letter e: TEXT: "e = 1" Check set operating mode and Error in telescope section length actual operating mode. Fully measurement retract all telescope sections. Measured telescope section Extend telescope sections. length shows incorrect values Compare measured length with ...
Page 24: Information Display Shows Letter F
Information display shows letter f: TEXT: "f = 1" Raise Main Boom to within Main Boom angle below permitted permitted angle range minimum. LMI 'Cut-off' TEXT: "e= 2” Raise or lower Main Boom Angle Angle of Luffing Jib outside permitted ...
Page 25: Information Display Shows Letter G
Information display shows letter g: TEXT: "g = 3"- Data Transmission-fault-Length. Transmitter identification sheet Pg ll TEXT: "g = 6"- Data Transmission-fault-Length. Transmitter identification sheet Pg ll With boom fully retracted, ensure the cables are wound evenly on each reeling drum starting with T1. ...
Page 26 Are the following voltages present With boom fully retracted, Adjust between connections: 4-7 Potentiometer to the “Zero” position fully anti-clockwise. Can readings be With section fully retracted (4‐7 = 0 volt) achieved? With section fully extended (4‐7 = 2 volt) Voltages between connections:-6-8 volts (difference) 4-5 = 2 volts ...
Page 27: Information Display Shows Letter T
Information display shows letter t: TEXT: "t = 4" (“T = 4”) Lower Main Boom (derrick out) Radius below minimum permitted value until hookblock above the minimum radius. Contact SkyAzul Service 301-748-6057 If any other Error Code 'Text', other than those described in this manual, contact SkyAzul service with the "displayed code, the Operation &...
