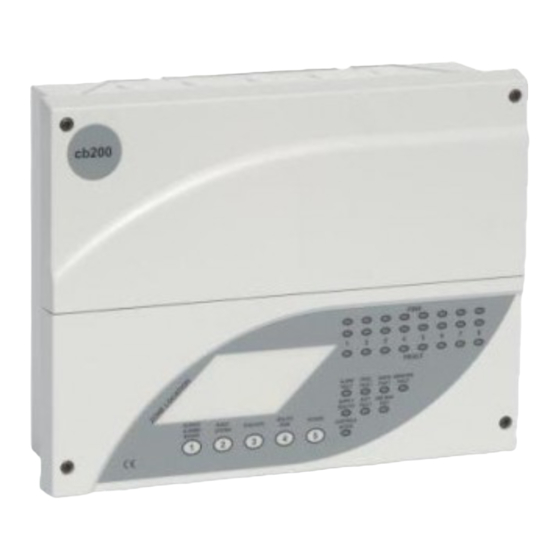

Acorn CB200 Application Manual

Conventional control panel
Hide thumbs

Advertisement

Quick Links

Download this manual
AJC
JBJ
Written by: R Patel
Checked by: ...
...
Approved by: ...
......
CB200 Conventional Control Panel
Application Guide
Contents
1. Cabinet Specifications ............................................................................................. 2
2. Panel Hardware Specifications................................................................................ 3
3. Panel Configuration ................................................................................................. 4
4. Technical Specifications .......................................................................................... 6
5. CB200 Panel Enhancements................................................................................... 8
6. CB200 Panel Compatible Zone Devices ................................................................. 9
7. Additional Available Documentation ...................................................................... 10
Document No.: CBAPP Rev.: 7
Page 1 of 11
Date: 06/06/2003
www.acornfiresecurity.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the CB200 and is the answer not in the manual?

Questions and answers

Related Manuals for Acorn CB200

Summary of Contents for Acorn CB200

  • Page 1: Table Of Contents

    2. Panel Hardware Specifications................3 3. Panel Configuration ....................4 4. Technical Specifications ..................6 5. CB200 Panel Enhancements................... 8 6. CB200 Panel Compatible Zone Devices ..............9 7. Additional Available Documentation ..............10 Document No.: CBAPP Rev.: 7 Page 1 of 11 Date: 06/06/2003 www.acornfiresecurity.com...

  • Page 2: Cabinet Specifications

    Checked by: 1. Cabinet Specifications All cabinets are manufactured from polycarbonate with a satin textured finish. Eleven top entry grommets are provided on a removable gland plate. Cabinet colour: RAL7035 Textured (light grey) cb200 FIRE FAULT Description Size Back box height...

  • Page 3: Panel Hardware Specifications

    2500/384 CB200 2 zone conventional control panel 2500/385 CB200 4 zone conventional control panel 2500/386 CB200 8 zone conventional control panel 2500/967 CB200 8 zone repeater with power supply 2500/968 CB200 8 zone repeater powered from panel 2. Panel Hardware Specifications 2.1 User Controls and Indications (8 zone illustrated)

  • Page 4: Panel Configuration

    Written by: R Patel Checked by: 2.2 Engineer Facilities 2.2.1 Mechanical Assembly Illustration Terminal cover Company logo Pre-formed Fixing screws Semi-flush Key hole Removable gland bezel top fixing plate with protection plugs PCB support Battery space PCB terminals Mains terminals LED indications Transformer Display cover...
  • Page 5 3.4 CB200 Repeater Panel A repeater panel is available for the CB200 4 and 8 zone panels. This is connected using RS485 serial communications over a screened twisted pair cable. Up to 3 repeaters can be connected to the control panel and provide the following features at a remote location: •...

  • Page 6: Technical Specifications

    4 at 500mA each Battery size: 2 x 12V 2.1AH sealed lead acid Weight (excluding batteries): 2.4kg CB200 8 zone repeater panel with power supply Mains failed current consumption: 40mA @24VDC Integral battery charger output: 500mA @27.5VDC Auxiliary 24VDC output...
  • Page 7 Written by: R Patel Checked by: RS485 Cable Specification Generic Type: RS422/RS485 data cable. Conductors: Single pair plus screen. Alpha cable: 3492C, 6222C, 6412 or equivalent Belden cable: 8102, 8132, 9841 or equivalent NOTE: On 4 and 8 zone panels the total available current for field devices is 800mA at 28VDC.

  • Page 8: Cb200 Panel Enhancements

    Cabinet size - 380h x 600w x 210d 5.2 Battery Sizes (YUASA) The CB200 panel has been designed to house the 2.1AH battery set. The following batteries are suitable for any relevant expansion items, along with auxiliary power supplies, and should be selected accordingly.

  • Page 9: Cb200 Panel Compatible Zone Devices

    Checked by: 6. CB200 Panel Compatible Zone Devices The CB200 panel is designed to operate with the following devices. Detectors marked * have been tested for compatibility. The remainder have electrical characteristics that are similar enough to the tested units to be listed as compatible.

  • Page 10: Additional Available Documentation

    Written by: R Patel Checked by: Manufacturer Part no. Description Maximum Quantity Per Zone Ziton Z630-1 Optical detector 32 * Ziton Z610-1 Ionisation detector 32 * Ziton Z6BS2A Mounting base 32 * KR9-680 Manual call point Unlimited 6.1 Notes 1. When using Hochiki smoke detectors (types SIHE and SLKE) fit a 3K9 0.25 watt resistor across terminals L1 and S4.
  • Page 11 Written by: R Patel Checked by: After-Sales Technical Support Booklet Document No.: CBAPP Rev.: 7 Page 11 of 11 Date: 06/06/2003 www.acornfiresecurity.com...
