coov N100 Pro Function Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
COOV N100 Pro 功能秘籍
Function Instruction of COOV N100 Pro

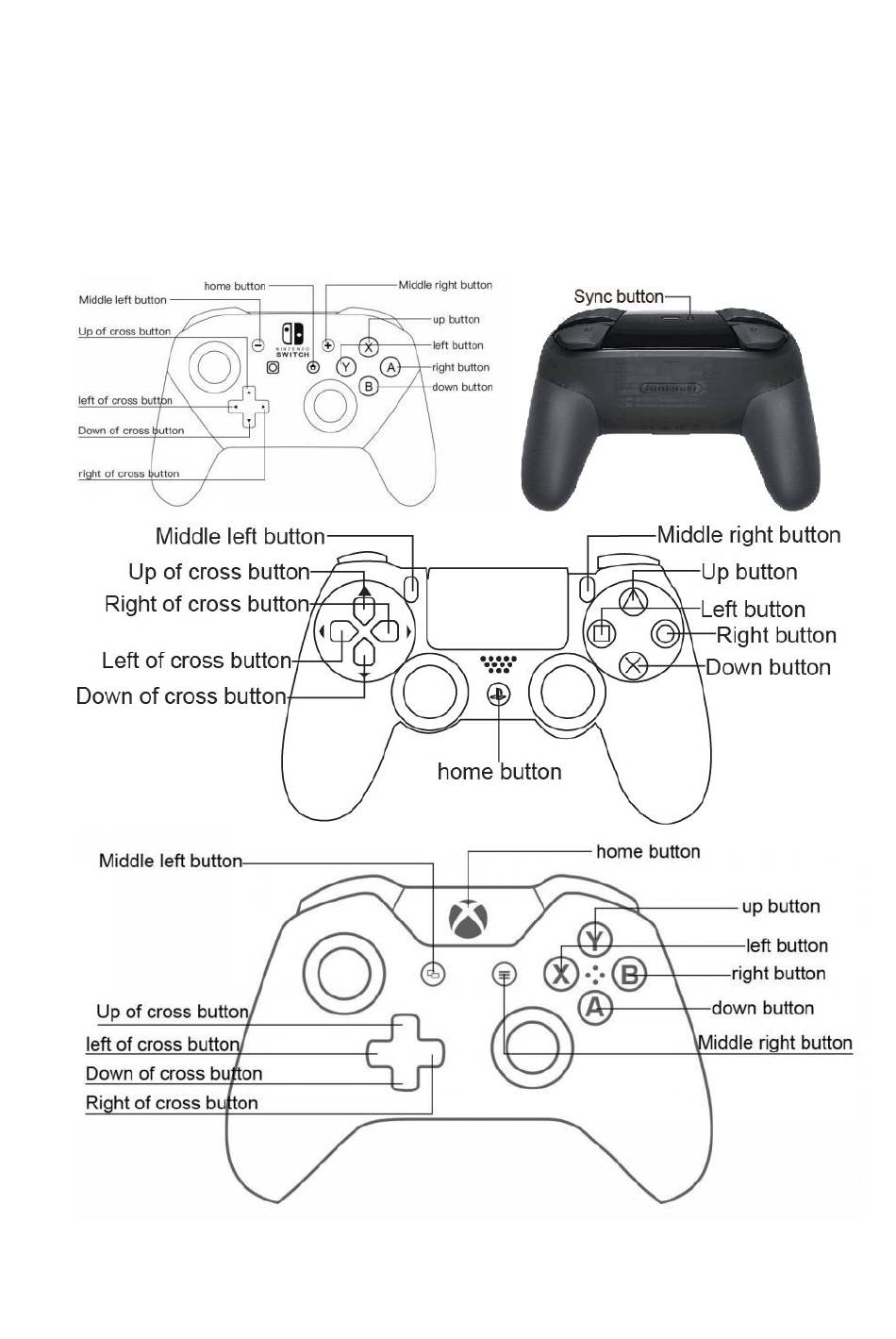

以 X1，PS4，Pro，joy-con 手柄按键分布图为例：
Take the button distribution of X1,PS4,Pro,joy-con handle an example:

Advertisement

loading
Need help?

Need help?

Do you have a question about the N100 Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for coov N100 Pro

  • Page 1 COOV N100 Pro 功能秘籍 Function Instruction of COOV N100 Pro 以 X1，PS4，Pro，joy-con 手柄按键分布图为例： Take the button distribution of X1,PS4,Pro,joy-con handle an example:...
  • Page 2 中左 Middle left button 十字键上 Up of cross button 十字键下 Down of cross button 上键 Up button 左键 Left button 右键 Right button 下键...
  • Page 3 Down button 中右 Middle right button N100 Pro 蓝牙无线连接示意图： N100 Pro Bluetooth wireless connection diagram:...
  • Page 4 连接设备（如连接示意图所示） Connect the device (as shown in the connection diagram)
  • Page 5 2: Long press joypad "SHARE + PS" button until the joypad indicator double flash (pairing mode). 3、将 N100 Pro 与蓝牙适配器按照示意图连接至游戏主机。 3: Connect the N100 Pro and Bluetooth adapter to the game console according to the diagram. 4、等待 3-5 秒左右，手柄指示灯显示为紫色，游戏显示器上显示手柄连接成功并出现” USB“提示，则连接成功。...
  • Page 6 3、长按手柄侧面“同步按钮”，直到手柄指示灯出现循环闪烁。 3, long press joypad side "synchronous button" until the joypad light cycle flash. 4、将 N100 Pro 与蓝牙适配器按照示意图连接至游戏主机。 4. Connect the N100 Pro and Bluetooth adapter to the game console according to the diagram. 5、等待 3-5 秒左右，手柄指示灯第一个灯常亮，游戏显示器上显示手柄连接成功并出现 “USB”提示，则连接成功。 5, wait about 3-5 seconds, you will see the joypad indicator light is always on, the screen show...
  • Page 7 3. Press and hold the sync button on top of the joypad until the joypad indicator flashes in a circle. 4、将 N100 Pro 与蓝牙适配器按照示意图连接至游戏主机。 4. Connect the N100 Pro and Bluetooth adapter to the game console according to the diagram. 5、 等待 3-5 秒左右， 手柄指示灯第一个灯常亮， 游戏显示器上显示手柄连接成功并出现 “USB” 提示，则连接成功。...
  • Page 8 Insert the TYPEC OTG cable into the SWITCH charging port and insert COOV N100 Pro at the end of this TYPEC line. The handle is connected to the end of the COOV N100 through the handle data cable to work normally.
  • Page 9 3. Unzip the firmware package and find the "firmware.bin" file in the firmware file. 4、将 N100 Pro 插入电脑 USB 接口，将之前找到的“firmware.bin”文件“复制和替换” 进入 N100 Pro 的文件夹内。 4. Insert the N100 Pro into the computer's USB port, and copy and replace the “firmware.bin” file found earlier into the N100 Pro folder. 5、N100 Pro 指示灯亮绿灯且自动弹出，则升级固件成功。（若亮红灯则失败，请重复步...
  • Page 10 3. Decompress the game script archive and find the "data.bin" file in the script file. 4、将 N100 Pro 插入电脑 USB 接口，将之前找到的“data.bin”文件“复制和替换”进入 N100 Pro 的文件夹内。则更新成功。 4. Insert the N100 Pro into the computer's USB port and copy and replace the “data.bin” file found earlier into the N100 Pro folder. The update was successful.
  • Page 11 软件使用方式与 N100 一致，如下： The usage mode of the software is the same as that of N100, as follows: A：线性控制（默认开启） A：Linear control (on by default) 线性控制是用来关闭或开启手柄摇杆和扳机的线性响应， 以实现更短的键程和更快的响应速 度 Linear control is used to turn off or turn on the linear response of the handle rocker and trigger to achieve a shorter bond range and faster response speed.
  • Page 12 2. 开启线性 2. Turn off the linear A. 同时按下 HOME+下键并松开，进入线性控制功能配置模式 A. Press the HOME+ Down button at the same time and release to enter the linear control function configuration mode. B. 将需要开启线性功能的扳机按住不放，或拨动需要开启线性功能的摇杆，再按一下中右 键，即可开启对应扳机或摇杆的线性功能 B. Press the trigger that need to turn on the linear function, or dial the rocker that need to turn on the linear function, and then click the Middle right button to turn on the linear function of the corresponding trigger or rocker.
  • Page 13 4. 支持的键位 4. Button supported 两个摇杆及两个扳机 Two rockers and two triggers B: 键位映射 B: Button mapping 键位映射是将一个按键映射到另一个不同按键上， 可实现多个按键相同功能或多个按键相互 交换的功能。 Button mapping is to map a button to another button, so as to realize the same function of several buttons or exchange functions of several buttons. 1.
  • Page 14 D. 按一下 HOME 键，退出配置模式 D. Press the HOME button to exit the configuration mode. 比如先按 A 键，再按 B 键，即使得 A 键具有 B 键功能。 For example, press the A button first and then press the B button, so that the A button has the function of B button.
  • Page 15 A. Press the HOME+ Right button at the same time and release to enter the button mapping function configuration mode. B. 按住 HOME3 秒钟，会自动清除所有已配置的键位映射，并自动退出配置模式 B. Hold down the HOME button for 3 seconds, all the configured button mappings will be eliminated automatically, and it will exit the configuration mode automatically.
  • Page 16 5.Examples 2(exchange touchpad and SHARE) (Firmware version is not less than V3.4006) A. In this configuration process, double-click HOME can not be simulated into other keys, so you need ps4 handle or pro handle for this operation B. Enter key mapping function configuration mode, press the middle left touch pad / screenshot key touch pad / screenshot left key, then press HOME to exit 6.
  • Page 17 1. Turn on the burst A. 同时按下 HOME+左键并松开，进入连发功能配置模式 A. Press the HOME+ Left button at the same time and release to enter the burst function configuration mode. B. 将需要开启连发功能的按键按住不放，再按一下中右键，即可开启对应按键的连发功能 B. Hold down the button that needs to turn on the burst function, and then press the Middle right button, so that the burst function of the corresponding button can be turned on.
  • Page 18 3. 清除所有连发 3. Elimination of all the burst A. 同时按下 HOME+左键并松开，进入连发功能配置模式 A. Press the HOME+ Left button at the same time and release to enter the burst function configuration mode. B. 按住 HOME3 秒钟，会自动清除所有已配置的连发功能，并自动退出配置模式 B. Hold down the HOME button for 3 seconds, all the configured burst function will be eliminated automatically, and it will exit the configuration mode automatically.
  • Page 19 5. 调整连发频率（自定义模式） 5. Adjust the burst frequency(Custom mode) (Firmware version not less than V4.1001) In custom mode, the user can set two parameters: press time a millisecond and release time b milliseconds. When the burst starts, the key is automatically pressed for a millisecond, then released for b milliseconds, and then pressed a millisecond for a round trip.
  • Page 20 from step 2. A value and b value can also be set separately. H. Press the HOME key to exit the configuration mode 6.支持的键位 6. Button supported 除 HOME 键、中左键、中右键及摇杆外的所有按键 All the buttons except HOME button, the Middle left button and the Middle right button and the rocker D：一键连招...
  • Page 21 B. 进行连招操作，设备会自动将连招记录（最多记录 8 组连招，每组连招至少可记录 5 秒， 且此操作不会被屏蔽） B. Carry out the auto combo operation, and the device will record the combo automatically (it can record 8 groups of combo at most, 5 seconds of each combo at least, and the operation will not be shielded) C.
  • Page 22 configuration mode automatically (or press the HOME button once more to exit). 3. 全部清除 3. Whole elimination A. 同时按下 HOME+上键并松开，进入一键连招功能配置模式 A. Press the HOME+ Up button at the same time and release to enter the auto combo function configuration mode. B.
  • Page 23 1.校准： 1. Calibration: A. 同时按下 HOME 键 + 中右键并松开，进入校准配置模式 A. Press the HOME+ Middle right button at the same time and release to enter the calibration configuration mode. B. 尝试转动两个摇杆，直到手柄停止震动 B. Try to turn the two rockers until the handle stops vibration C.
  • Page 24 eliminated automatically, and it will exit the configuration mode automatically. 使用建议： Recommendation for use: 大部分原装手柄无需校准，如果出现摇杆漂移，建议先进行校准。 Most of the original handle does not need to be calibrated. If the rocker drifts, it is suggested to calibrate first. F：一键无限循环功能（默认关闭） F: Auto infinite loop function (off by default) （固件版本不小于...
  • Page 25 1. Turn on the infinite loop function of the button （请不要在有按键被锁定的状态下进入配置模式） (Do not enter the configuration mode when a button is locked.) 1: 先将目标按键设置为连发或者一键连招(方法请参考设置连发教程) 1: Set a button in the burst or auto combo state (please refer to the auto combo setting tutorial).
  • Page 26 （请不要在有按键被锁定的状态下进入配置模式, 例如 A 键处于无限循环状态,请再次按下 A 键退出此状态） (Do not enter the configuration mode when a button is locked. For example, when A is in the infinite loop state, please press A again to exit this state.) 1. 同时按下 HOME + 十字键上并松开，进入无限循环功能配置模式 1.
  • Page 27 3. Turn off the infinite loop function of all buttons （请不要在有按键被锁定的状态下进入配置模式,例如 A 键处于无限循环状态,请再次按下 A 键退出此状态） (Do not enter the configuration mode when a button is locked. For example, when A is in the infinite loop state, please press A again to exit this state.) 1.
  • Page 28 Press a button that has turned on the infinite loop function, and then the button is locked in the infinite loop state. 5.解锁按键 5. Unlock button 按一下已锁定的按键并松开，此后按键被解除无限循环状态 Click the locked button and release it, and then the button is relieved of the infinite loop state.
  • Page 29 手柄震动开关及力度调整功能 Handle vibration switch and force adjustment function A. Simultaneously press HOME key + left key and release to enter vibration configuration mode B. Click the cross arrow keys to improve the vibration intensity C. Click the cross arrow keys, reduce the vibration intensity (to a minimum, turn off the vibration) D.
  • Page 30 Communication" as ON when using the above version of V1.00. G：N100 Pro 支持第三方手柄操控 PS4/X1 游戏主机功能，连接顺序为： G: N100 Pro supports third-party handles to control the PS4/X1 game console functions. The connection order is: A：升级 N100 Pro 到最新固件，将任意 USB HUB 连上 N100 Pro USB 口...
  • Page 31 A: Upgrade the N100 Pro to the latest firmware and connect any USB HUB to the N100 Pro USB port B：将原装手柄连上此 USB HUB。（PS4 主机用 PS4 手柄， X1 主机用 X1 手柄） B: Connect the original handle to this USB HUB. (PS4 host with PS4 handle, X1 host with X1 handle) C：将...
  • Page 32 A：升级 N100 Pro 到最新固件，将 COOV HUB K4 连上 N100 Pro USB 口 A: Upgrade the N100 Pro to the latest firmware and connect the COOV HUB K4 to the N100 Pro USB port B：将原装手柄连上 COOV HUB K4。（PS4 主机用 PS4 手柄， X1 主机用 X1 手柄）...
  • Page 33 C: Connect N100 Pro to game consoles such as X1/PS4 D：将键盘鼠标格斗摇杆等外设连接到 COOV HUB K4 D: Connect peripherals such as keyboard, mouse, and joystick to COOV HUB K4 此时可以通过键鼠畅玩 PS4 主机游戏。 At this point you can play PS4 console games through the mouse and keyboard.
  • Page 34 or combat rocker) c、再按一下目标映射的按键（手柄按键） c. Press the mapping button (handle button) d、按一下 HOME 键，退出配置模式 d. Press the HOME button to exit the configuration mode. 例：先按 A 键，再按 B 键，即使得 A 键具有 B 键功能。 Example: Press the A button first and then press the B button, so that the A button has the function of B button.
  • Page 35 Example: press the W button, and then move the rocker upward, so that the W button has the function of the rocker. C、将手柄摇杆映射到 HID 格斗摇杆上： C. Map the handle rocker to the HID combat rocker: a、同时按下手柄 HOME+右键并松开，进入键位映射配置模式 a. Press the HOME+ Right button of the handle at the same time and release to enter the button mapping configuration mode.
  • Page 36 1、The user can adjust the moving speed of the mouse by different DPI settings. 2、通过 COOV HUB K4 支持 PS4 主机使用第三方手柄，键盘、鼠标、摇杆等 功能时，请按照以下顺序连接： 2. When using COOV HUB K4 to support PS4 host using a third-party controller, keyboard, mouse, joystick, etc., please connect in the...
  • Page 37 1： 将 HUB K4 与 N100 Pro 相连 1: Connect HUB K4 to N100 Pro 2: 将 PS4 原装手柄连接在 HUB K4 上 2: Connect the PS4 original handle to HUB K4 3: 将 N100 Pro 插入 PS4 3: Insert N100 Pro into PS4 4: 最后将第三方手柄和键盘鼠标等外设插入...
