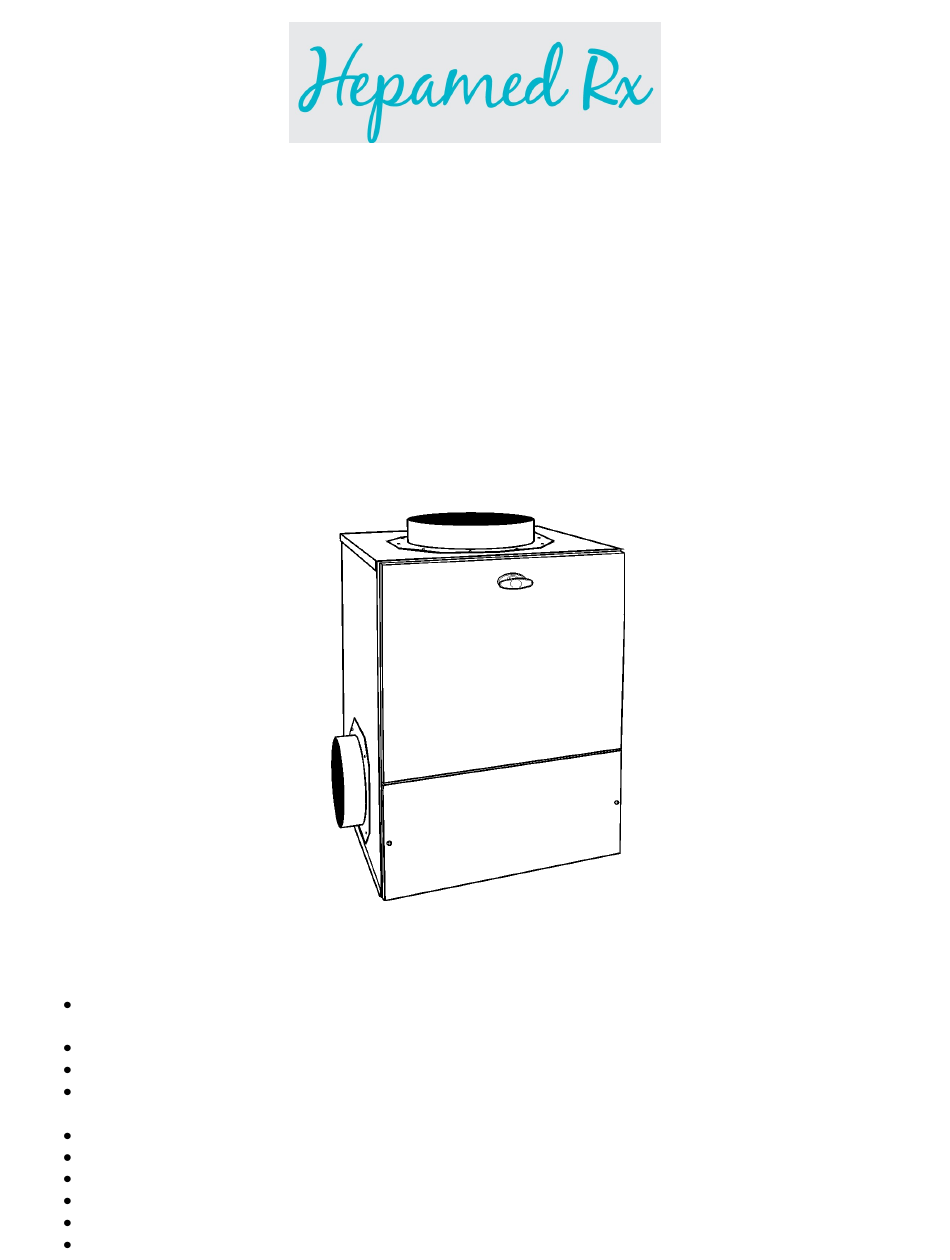

OWNER'S MANUAL

MODEL RXHEPA5000-ULTRA

WHOLE-HOUSE TRUE HEPA AIR CLEANER

IMPORTANT: PLEASE READ MANUAL BEFORE OPERATING UNIT

Features

Long-life, True HEPA (High Efficiency Particulate Air) Filter is 99.97% efficient at removing particles

0.3 micron

Activated Carbon Prefilter removes lint and unpleasant odors, to extend life of HEPA Filter

Carbon VOC After Filter (standard) removes additional unpleasant odors and gases

Heavy-duty Carbon/Potassium Permanganate VOC After Filter (optional upgrade) removes noxious

odors and fumes emitted from household sources

Easy-to-change filters

Heavy gauge steel cabinet and powder-coat paint finish provide rigid installation and durability

Powerful motor delivers 560 CFM of filtered air

Small footprint for easier, more convenient installation

Reversible air outlet for versatility

Versatile installation can be freestanding, floor, ceiling or wall mounted

Table of Contents

Do you have a question about the RXHEPA5000-ULTRA and is the answer not in the manual?

Page 1 OWNER’S MANUAL MODEL RXHEPA5000-ULTRA WHOLE-HOUSE TRUE HEPA AIR CLEANER IMPORTANT: PLEASE READ MANUAL BEFORE OPERATING UNIT Features Long-life, True HEPA (High Efficiency Particulate Air) Filter is 99.97% efficient at removing particles 0.3 micron Activated Carbon Prefilter removes lint and unpleasant odors, to extend life of HEPA Filter...
Page 2 Smaller particles then pass through a long-life, HEPA SAFETY CONSIDERATIONS (High Efficiency Particulate Air) Filter which captures Read and follow instructions carefully. Follow all local 99.97% of particles 0.3 micron (1/84,000 of an inch) electrical codes during installation. All wiring must and larger.
Page 3 flexible 12 inch intake duct, from the cold air return, The door must be secured for the Air Cleaner to to be attached. The 12 inch intake must be drawn operate, as the door is interlocked for safety. All filters from the cold air return duct at a location that will must be in place for the unit to operate properly.
Page 4 TECHNICAL DATA Dimensions Length 21.5 in 54.5 cm Width 20.5 in 52.0 cm Height 28.0 in 71.0 cm Intake 12.0 in 30.5 cm Outflow 8.0 in 20.3 cm Unit Weight 88.0 lbs 39.9 kg Input Voltage 120 V 60 Hz Power Consumption 215 Watts Air Flow...
