Summary of Contents for Dymond M-18A9

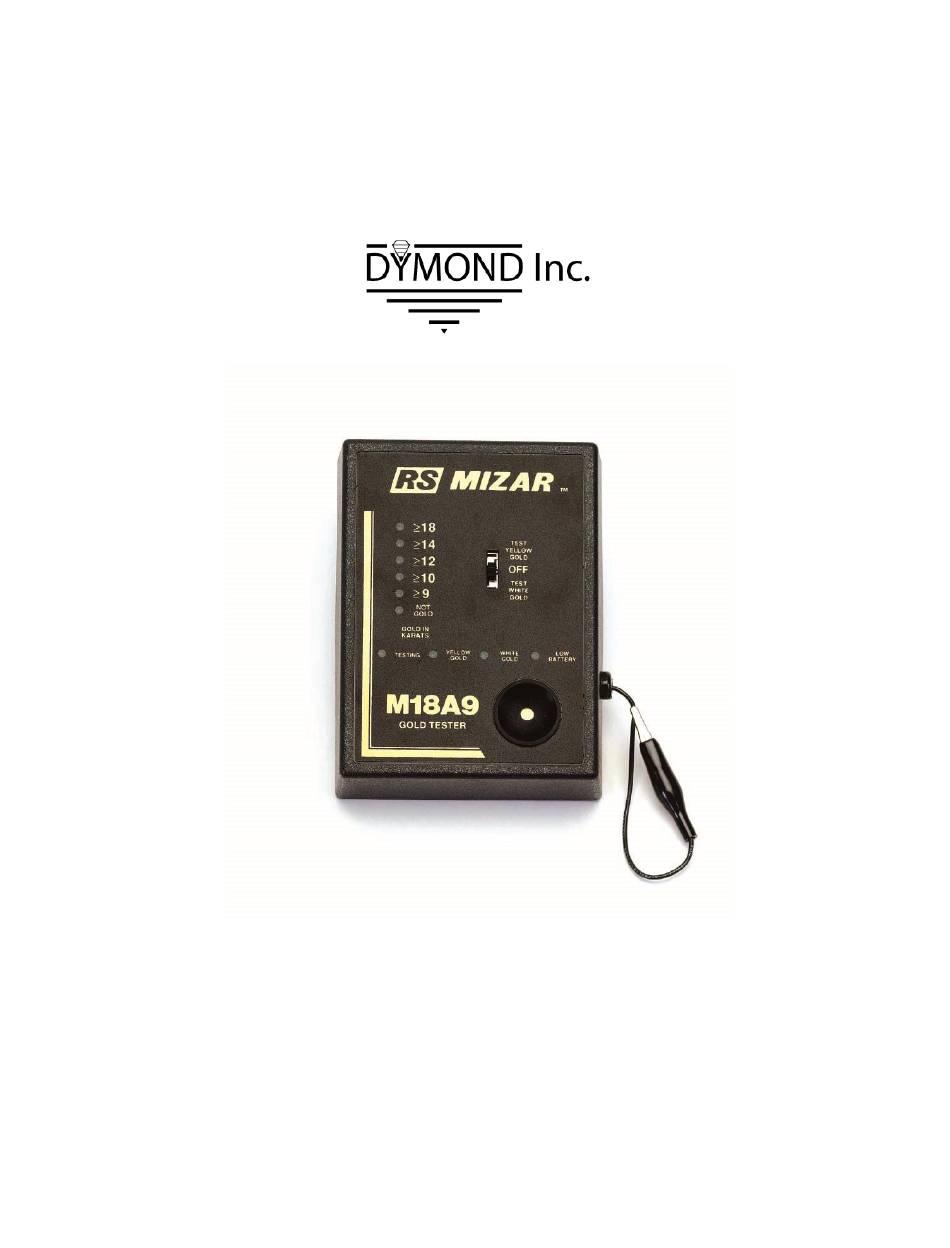

- Page 1 Gold Tester Owner’s Manual Dymond, Inc. 3307 Industrial 25 Street, Fort Pierce, FL 34946. Phone: 772-429-0045 Fax: 772-429-0170...
- Page 2 “Karat Gold” without the destructive Fire Assay testing which would change the value of the jewelry. Dymond, Inc. brings you one of the fastest and easiest Gold Analyzer for all the trades where jewelry and “Karat Golds” have to be quickly and accurately evaluated –...
- Page 3 Karat indicators is obtained) User should brace a part of the hand on the same surface that the M-18A9 rests on and when possible, brace test gold on the inside of the Test Well just under the surface of the liquid being very...
- Page 4 IT IS IMPORTANT THAT THE TEST GOLD NOT BE MOVED ABOUT IN THE ELECTROLYTE AFTER THE TEST HAS STARTED UNTIL A READING IS OBTAINED! Step 8 – When Karat indicator lights go on, (Testing light will go out) remove test Gold from liquid and read from the Karat indicator display “bar graph” the highest value that is lit at this time.
-
Page 5: Contents Of Package
CONTENTS OF PACKAGE 1. Activator 2. Electrolyte 3. Eraser and Cotton Swabs 4. Owner’s Manual 5. M-18A9 Gold Tester SPECIFICATIONS Length……………………. 6.3” Dimensions: Width……………………...4.0” Depth………………………1.5” With Batteries……………..8.5 oz Weight: Operating Temperature: ………65 to 90 degrees Fahrenheit... -
Page 6: Do's And Don'ts
DO’S AND DON’TS Don’t leave liquid in the Test Well. Do clean after each test or 5 minutes. Do occasionally clean reference Gold at the bottom of the Test Well with a cotton swab, especially if you suspect any test error. ... - Page 7 Such a Gold plate is referred to as Gold flash. A large percentage of Gold flash is sufficiently thin and/or microscopically porous that the M-18A9 Gold Tester will “read through” the plate and indicate “NOT GOLD”. A thicker plate will read as Karat Gold unless a portion of the surface that is being tested is erased with the eraser or filed to expose the metal underneath.
- Page 8 TESTING FOR PALLADIUM Both Palladium and Platinum will indicate Karat Gold if tested. Platinum jewelry is usually traded at a higher price than Gold jewelry, so Platinum is seldom marked as Gold. Palladium, however, is one-quarter to one-third the price of pure Gold, so it should be noted that pure Palladium might read as medium Karat gold.
- Page 9 The same Electrolyte can be used for the two comparisons, (the un-erased or un-filed area test and the erased or filed test). MAINTENANCE OF M-18A9 No maintenance is required outside of cleaning after testing as described in Step 9 of the Operating Instructions. (page 5) When the Low Battery indicator comes on, it is necessary to replace the batteries before operating the unit.
-
Page 10: Troubleshooting Guide
TROUBLE SHOOTING GUIDE “Yellow Gold” or “White Gold” does not light. Problem: Low Battery light is on. Replace batteries observing the polarity on the holder. Cause/Solution: Problem: The testing light does not light. Clean test Gold in area to be tested. Cause/Solution: Alligator clip not connected to test Gold. - Page 11 FINAL POINT It is strongly recommended that users of the M-18A9 Gold Tester practice testing for Gold Plate on a few items believed or known to be Gold Plated. A few sets of practice runs will impart confidence to the point that the user will find testing for Gold Plate to be fast and easy.
-
Page 12: Warranty
3. Batteries being replaced with the wrong polarity. (Batteries and chemicals are not included in the warranty) Dymond, Inc. shall not be held legally liable or responsible for any error in determining the Gold content of any object or any other error using the M18-A9 Gold Tester.
