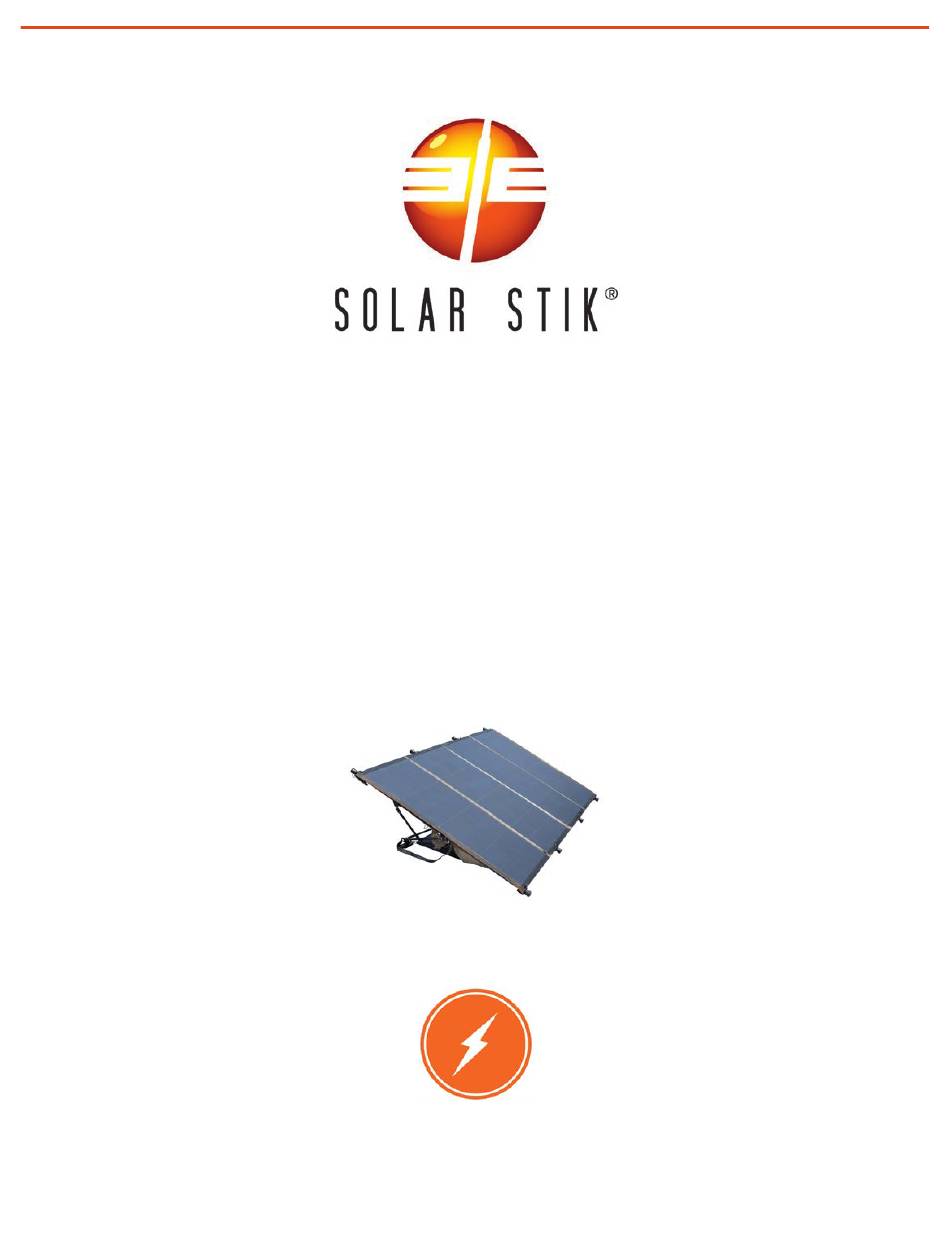

- Page 1 OPERATOR AND MAINTENANCE MANUAL FOR THE SOLAR VENTURE 300W PHOTOVOLTAIC ARRAY P/N 19-1000010 DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited. Version 1.0 Updated: 2020108 October 2020...
-
Page 2: Table Of Contents
Multimeter ......23 SUPPORTING INFORMATION Technical Specifications ABOUT SOLAR STIK, INC Contact October 2020... - Page 3 Solar Venture 300W PV Array Operator and Maintenance Manual List of Figures Figure 1. Solar Venture 300W PV Array with ground securing ..................4 Figure 2. Solar Venture 300 W PV array with a small HPS ....................9 Figure 3. Solar Venture 300W PV Array components in transport case (top) and unpacked (bottom) ......10 Figure 4.
-
Page 4: General Information, Theory Of Operation, And Equipment Description Introduction
Solar Venture 300W PV Array Operator and Maintenance Manual GENERAL INFORMATION, THEORY OF OPERATION, AND EQUIPMENT DESCRIPTION Introduction The Solar Venture 300W Photovoltaic (PV) Array is designed to generate renewable power in expeditionary applications where weight, rugged design, and extreme portability are factors. The Venture design can be deployed on any terrain, and the PV array can generate up to 300 Watts of power for applications where independence from traditional power sources is required: •... -
Page 5: Product Safety Information And Instructions
Solar Venture 300W PV Array Operator and Maintenance Manual Product Safety Information and Instructions This manual contains important safety instructions that must be followed during the installation and operation of the PV array. Read all instructions and safety information contained in this manual. Exercise caution when handling or operating equipment. -
Page 6: Fire Hazard
Solar Venture 300W PV Array Operator and Maintenance Manual Fire Hazard Fire Types Class A fire - Fires in ordinary combustibles such as wood, paper, cloth, trash, and plastics. Class B fire - Fires in flammable liquids such as gasoline, petroleum, oil, and paint. Class C fire - Fires involving energized electrical equipment such as motors, transformers, and appliances. -
Page 7: Electric Shock Hazard Related To Pv Panels
Solar Venture 300W PV Array Operator and Maintenance Manual Electric Shock Hazard Related to PV Panels WARNING Standing water around the electrical equipment and/or intrusion of water into the System components can increase the risk of electrical shock. • PV panels produce electricity when exposed to sunlight. •... -
Page 8: Environmental And Handling Precautions
Solar Venture 300W PV Array Operator and Maintenance Manual Environmental and Handling Precautions This equipment is ruggedized, yet there are a few things the operator can do to prevent failures and prolong the operational life of the product. Wind It is imperative to properly secure the PV panels to the ground using sandbags so they do not become dangerous projectiles in high winds. -
Page 9: Theory Of Operation
Solar Venture 300W PV Array Operator and Maintenance Manual Theory of Operation PV cells convert sunlight into electrical power. All PV cells are made of materials called semiconductors that absorb photons when sunlight strikes the PV cell. The absorbed photons then knock electrons loose within the PV cells, allowing them to flow, which produces an electrical current. -
Page 10: Equipment Description
Solar Venture 300W PV Array Operator and Maintenance Manual Equipment Description Kit Components Solar Venture 300W PV Array Hard transport case 4-section foldable PV array Ground-securing mesh (large and small) Support frame Sandbags (12 ea) Solar Cable (sold separately) Figure 3. Solar Venture 300W PV Array components in transport case (top) and unpacked (bottom) October 2020... -
Page 11: Operator Instructions
Solar Venture 300W PV Array Operator and Maintenance Manual OPERATOR INSTRUCTIONS Solar Venture 300W PV Array Setup Position and Orient System Components Identify the best location for each component of the System, keeping in mind the length of all cables that will be used to connect all of the components. -
Page 12: Deploy The Pv Array Support Frame
Solar Venture 300W PV Array Operator and Maintenance Manual Deploy the PV Array Support Frame Loosen the transport strap securing the foldable array support frame (Figure 5A). Remove the two locking pins (Figure 5B) to allow the frame to expand. Expand the support frame (Figure 5C) and install the locking pins in the “deployed”... -
Page 13: Install The Large Ground-Securing Mesh
Solar Venture 300W PV Array Operator and Maintenance Manual Install the Large Ground-securing Mesh The large ground-securing mesh has three (3) clips on the short side and four (4) on the long side (Figure 6A). The clips on the short side connect to the rings on the three (3) cleats (Figure 6B) of the support frame. -
Page 14: Install The Small Ground-Securing Mesh
Solar Venture 300W PV Array Operator and Maintenance Manual Install the Small Ground-securing Mesh The small ground-securing mesh has three (3) clips on the short side and four (4) on the long side (Figure 7A). The clips on the short side connect to the rings (Figure 7B) on the three (3) cleats of the support frame (Figure 7C). -
Page 15: Figure 8. Ground-Securing Mesh Configuration For 30º Array Deployment
Solar Venture 300W PV Array Operator and Maintenance Manual Ground-securing Mesh Configuration for Low- and Steep-angle Deployments Connect the large and small ground-securing meshes as shown in Figure 8 to deploy the PV array at 30º and as shown in Figure 9 to deploy the PV array at 60º. Figure 8. -
Page 16: Install The Pv Array On The Support Frame
Solar Venture 300W PV Array Operator and Maintenance Manual Install the PV Array on the Support Frame The PV array has eight (8) grommet-reinforced holes, four (4) on the top and four (4) on the bottom (Figure 10A, orange circles). The support frame has eight (8) complementary panel mounting hooks (Figure 10B, orange circles). -
Page 17: Connect The Solar Cable To The Pv Panel Leads
Solar Venture 300W PV Array Operator and Maintenance Manual Connect the Solar Cable to the PV Panel Leads Connect the leads on the PV array (Figure 12A) to the Solar Cable (Figure 12B). The locking connectors are polarized (Figure 12C–D). Connectors Connectors Figure 12. -
Page 18: Connect Pv Array(S) To Solar Only Input Port Of Power Hub
Connect PV Array(s) to Solar Only Input Port of Power Hub Note: This example describes connection to a Power Hub however, other Solar Stik components such as the PRO-Verter S, Power Paks and BOS have PV-input capabilities. Consult the Manuals for these components for details. -
Page 19: Position The Pv Arrays For Optimal Power Generation
Solar Venture 300W PV Array Operator and Maintenance Manual Position the PV Arrays for Optimal Power Generation NOTICE The setup location should have good exposure to sunlight and be away from other structures or potential hazards such as moving-vehicle thoroughfares. PV Array Orientation for Optimum PV Power Generation PV generation requires direct sunlight for maximum performance. -
Page 20: Secure The Array To The Ground
Solar Venture 300W PV Array Operator and Maintenance Manual Secure the Array to the Ground Do not secure the arrays to the ground before establishing proper location and orientation WARNING Failure to properly secure the PV array(s) to the surface with sandbags could result in PV array damage, injury, or death in high winds. -
Page 21: Disassembling And Repacking The Pv Array
Solar Venture 300W PV Array Operator and Maintenance Manual Disassembling and Repacking the PV Array Repacking the PV array is safe and simple when done correctly. Please follow the instructions below. Failure to follow the instructions may result in damage to the PV array and difficulty fitting all of the pieces back into the transport case. -
Page 22: Maintenance
Solar Venture 300W PV Array Operator and Maintenance Manual MAINTENANCE Preventive Care and Maintenance • Ensure the PV panels are clean and positioned for maximum daily sunlight exposure. • Secure the Solar Cables and provide strain relief at locations where the cables are stressed. •... -
Page 23: Procedure To Measure Pv Array V
A and B of the Solar Cable but CAN be measured at the PV array lead connectors, replace the Solar Cable. Contact Solar Stik if a PV array voltage measurement indicates that a PV array is either not functioning or is performing very poorly. -
Page 24: Supporting Information Technical Specifications
Solar Venture 300W PV Array Operator and Maintenance Manual SUPPORTING INFORMATION Technical Specifications General Frame Construction Anodized aluminum, stainless steel, and carbon fiber composites Frame Adjustment Angles 30° and 60° Solar Panel Construction Tan fabric and carbon fiber Ground Securing Mesh and Sandbags Setup/Stowage Time 3-5 minutes... - Page 25 Solar Venture 300W PV Array Operator and Maintenance Manual Technical Specifications Weights and Dimensions (L x W x H) PV Array Weight 15.0 lb (6.8 kg) Assembled Weight 23.6 lb (10.7 kg) 45.6 lb (20.7 kg) Transport Weight 53.1 lb (24.1 kg) with 30 ft Solar Cable Assembled: 65 x 43 x 0.2 in (165 x 109 x 0.5 cm) Solar Array Dimensions Folded: 16 x 43 x 1.5 in (41 x 109 x 3.8 cm)
- Page 26 Solar Venture 300W PV Array Operator and Maintenance Manual October 2020...
-
Page 27: About Solar Stik, Inc
• Solar Stik New Equipment Training (on site) teaches Hybrid System configuration options with hands-on deployment of actual systems to enhance student understanding. Solar Stik Training Courses are tailored to the specific needs of the students. To schedule Solar Stik Training or to learn more about the curriculum, please contact us.
