1
USER GUIDE
SmartSound - Motion Activated Audio Player
DISCLAIMER
This document is intended to provide general usage guidelines. Every reasonable effort is made
to ensure the accuracy of all information contained in this publication. However, no
representations or warranties are made whether expressed or implied as to the accuracy,
completeness or suitability for any purpose of such information and therefore we disclaim to
the maximum extent permitted by law liability for any error, loss, injury or other consequence
which may arise from use in any manner of information contained in this publication. This
device is not for use in critical or life support systems where a malfunction or failure may result
in significant cost or injury to the user.
COPYRIGHT
The contents of this publication are protected by copyright and must not be reproduced in
whole or in part in any manner, including in print, online or by other electronic means.
www.SierraTeck.com
info@SierraTeck.com
SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER
Advertisement
Table of Contents
Related Manuals for SierraTeck SmartSound
Summary of Contents for SierraTeck SmartSound
- Page 1 USER GUIDE SmartSound - Motion Activated Audio Player DISCLAIMER This document is intended to provide general usage guidelines. Every reasonable effort is made to ensure the accuracy of all information contained in this publication. However, no representations or warranties are made whether expressed or implied as to the accuracy,...
-
Page 2: Table Of Contents
Adding Audio ..............................7 Mode Selection ............................. 8 Powering the Unit ............................9 Example Applications ........................... 9 Frequently Asked Questions ........................10 A Note about MP3 ............................11 Customer support & Warranty ........................11 www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER... -
Page 3: Introduction

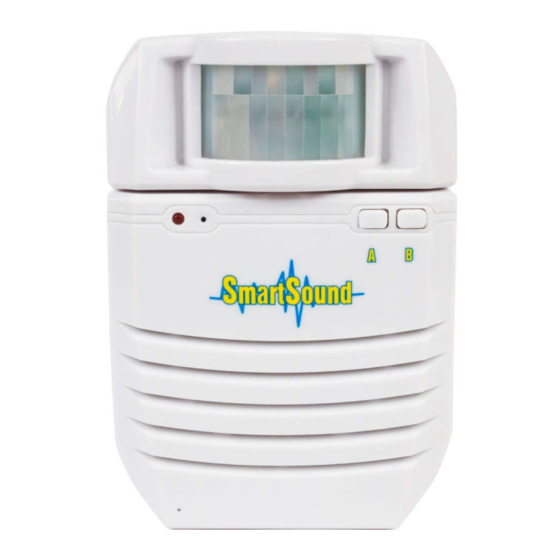

USER GUIDE Introduction Congratulations on the purchase of your SmartSound device. This unit is widely used for applications requiring playback of preselected audio upon detecting motion. It has a built-in PIR (Passive Infrared) wide-angle sensor that detects motion from up to 16 feet (5 meters) and works day or night, as it does not rely on light. -
Page 4: Required Tools
DC 5V, 3.7 500 mAH lithium battery Audio Output Power 8 Ω/2 Watt Volume 8 volume settings Buttons & Description Name Indicator Light External Audio Interface USB Port Sensor Unit A Button B Button Power Switch www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER... - Page 5 Short Press Next Button A Hold for 3 Single File Play seconds Back Mode Short Press Cycles through the 8 volume settings Button B Hold for 3 Sequence Play seconds Back Mode www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER...
-
Page 6: Installation Instructions
2. Adjust Sensor Angle and/or Unit (if desired, applicable only to Ball Mount Installation Method) o To adjust area targeted for detection, rotate sensor head (top portion of unit) left or right o Can also grab unit itself and swivel 360° degrees www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER... -
Page 7: Adding Audio
MP3 audio An iOS/MAC device should not be used to write audio to the device as they leave hidden non-MP3 files that will cause the device to not function properly www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER... -
Page 8: Mode Selection
Once motion is detected and audio is being played, the unit will not interrupt audio playback. It will keep playing the current file until completion, after which it will wait approximately 1 seconds and start detecting new motion again. www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER... -
Page 9: Powering The Unit
Pre-record material and have it played automatically to visitors at your booth Security System o Play audio of your choice as soon as motion is detected Escape Rooms o Automatically play audio when contestants enter the room www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER... -
Page 10: Frequently Asked Questions
Q: What if I want to play audio say 2 minutes after detecting motion and not right away? Create an audio file where the first 2 minutes are silent and followed by your non-silent part. www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER... -
Page 11: A Note About Mp3
Limited time offer: Register your product online within 14 days of delivery and receive a free gift. Please see website for gift selection. It takes less than 30 seconds, register here: http://www.sierrateck.com/registration.html www.SierraTeck.com info@SierraTeck.com SMARTSOUND - MOTION ACTIVATED AUDIO PLAYER...
