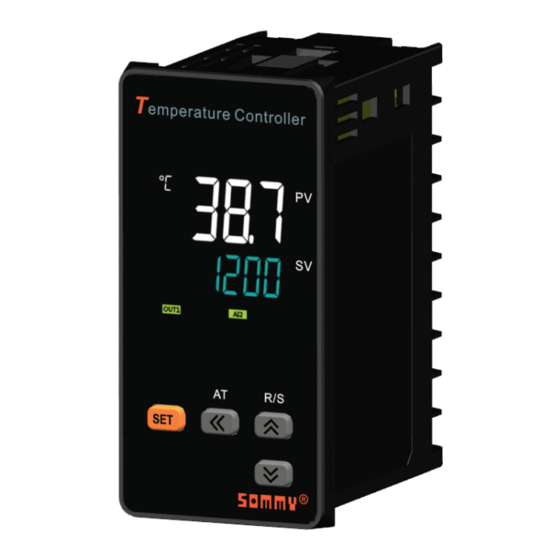

SOMMY TZ Series User Manual

Intelligent Temperature Controller
User Manual

Features

⊙Multi input signal and multi models for option.
⊙With measured display, control output, alarm output, analog output, RS485
communication, etc.
⊙Multi PID algorithms for option, with auto tune function.
⊙This product can be used in industrial machinery, machine tools, general measuring
instruments and equiptment.
National High-tech Enterprise/ National Standard Drafting Unit
Hotline：400-8866-986
The instruction explain instrument settings, connections,name and etc,
please read carefully before you use the temperature controller. Please keep it
properly for necessary reference.
I. Safe Caution
1）When the failure or abnormal of products lead to a system of major accidents,
please set the proper protection circuit in the external.
2）Please don`t plug in before completing all the wire.Otherwise it may lead to electric
shock, fire, fault.
3）Not allow to use outside the scope of product specification,otherwise it may lead to
fire,fault.
4）Not allow to use in the place where is inflammable and explosive gas.
5）Do not touch power terminal and other high voltage part when the power on
otherwise you may get an electric-shock.
6）Do not remove,repair and modify this product,otherwise it may lead to electric
shock, fire, fault.
1）The product should not be used in a nuclear facility and human life associated
medical equipment.
2）The product may occur radio interference when it used at home.You should take
adequate countermeasures.
3）The product get an electric shock protection through reinforced Insulation. When the
product is embedded in the devices and wiring,please subject to the specification of
embedded devices.
4）In order to prevent surge occurs,when using this product in the place of over 30m
indoor wiring and wiring in outdoor, you need to set the proper surge suppression
circuitry.
5）The product is produced based on mounting on the disk.In order to avoid to touch
the wire connectors,please take the necessary measures on the product.
6）Be sure to observe the precautions in this manual, otherwise there is a risk of a
major injury or accident.
7）When wiring, please observe the local regulation.
8）To prevent to damage the machine and prevent to machine failure, the product
is connected with power lines or large capacity input and output lines and other
methods please install proper capacity fuse or other methods of protection circuit.
9）Please don't put metal and wire clastic mixed with this product,otherwise it may lead
to electric shock, fire, fault.
10）Please tighten screw torque according to the rules.If not,it may lead to electric
shock and fire.
11）In order not to interfere with this products to dissipate heat, please don't plug
casing around the cooling vent hole and equipment.
12）Please don' t connect any unused terminal.
13）Please do the cleaning after power off, and use the dry cleaning cloth to wipe away
the dirt. Please don' t use desiccant, otherwise, it may casue the deformation or
discoloration of the product.
14）Please don`t knock or rub the panel with rigid thing.
15）The readers of this manual should have basic knowledge of electrical, control,
computer and communications.
16）The illustration, example of data and screen in this manual is convenient to
understand,instead of guaranteeing the result of the operation.
17） In order to use this product with safety for long-term,regular maintenance is
necessary. The life of some parts of the equipments are by some restrictions, but the
performance of some will change for using many years.
18）Without prior notice, the contents of this manual will be change. We hope these is
no any holes, if you have questions or objections, please contact us.
中山市中大电力自动化有限公司
SOMMY Automation Group Shares co.,Ltd
For TZ-C Version
ISO9001
Version code ：KKTZ-C01E-A/1-20220707
Warning
Caution
1
1. Installation
1 ) T h i s p r o d u c t i s u s e d i n t h e f o l l o w i n g e n v i r o n m e n t a l s t a n d a r d s .
（IEC61010-1）[Overvoltage categoryⅡ、class of pollution 2]
2)This product is used in the following scope:environment, temperature, humidity and
environmental conditions.Temperature:0~50℃;humidity: 45~85%RH; Environment
condition:Indoor warranty.The altitude is less than 2000m.
3 ) P l e a s e a v o i d u s i n g i n t h e f o l l o w i n g p l a c e s ：
The place will be dew for changing temperature;with corrosive gases and flammable
gas; with vibration and impact;with water, oil, chemicals, smoke and steam facilities
with dust, salt, metal powder;and with clutter interference, static electric and
magnetic fields, noise;where has air conditioning or heating of air blowing directly to
the site; where will be illuminated directly by sunlight; where accumulation of heat will
happen caused by radiation.
4) On the occasion of the installation, please consider the following before installation.
In order to protect heat saturated, please ensure adequate ventilation space. Please
consider connections and environment,and ensure that the products below for more
than 50mm space. Please avoid to installed over the machine of the calorific value
(Such as heaters, transformer, semiconductor operations, the bulk resistance). When
the surrounding is more than 50 , please using the force fan or cooling fans. But don't
let cold air blowing directly to the product. In order to improve the anti - interference
performance and security, please try to stay away from high pressure machines,
power machines to install. Don`t install on the same plate with high pressure machine
and the product. The distance should be more than 200mm between the product and
power line.
2. Cable caution：
1）Please use specified compensation wire in the place of TC input; Please use
insulated TC if the measured device is heated metal.
2）Please use the cable of lesser resistance in the place of RTD input,and the cable (3
wire) must be no resistance difference,but the total length is within 5m.
3）In order to avoid the effect of noise,please put the input dignal away from meter
cable,power cable,load cable to wiring.
4）In order to reduce the power cables and the load power cables on the effect of this
product, please use noise filter in the place where easy to effect. You must install
it on the grounding of the disk if you use the noise filter,and make the wiring to be
shortest between noise filter output side and power connectors. Don`t install fuse
and switch on the wiring of noice filter output side,otherwise it will reduce the effect of
noise filter.
5）It takes 5s from input power to output.If there is a place with interlocking actions
circuit signal,please use timer relay.
6）Please use twisted pair with a shield for analog output line, can also connect the
common-mode coil to the front-end of the signal receiving device to suppress line
interference if necessary, to ensure the reliabilty of signal.
7)Please use twisted pair with a shield for remote RS485 communication cable, and
deal with the shield on the host side earth, to ensure the reliabilty of signal.
8）This product don' t have the fuse; please set according to rated voltage 250V, rated
current 1A if you need; fuse type:relay fuse.
9）Please use suitable slotted screwdriver and wire. Terminal distance: 5.0mm.
Screwdriver size: 0.6X3.5, length of slotted screwdriver >130mm. Recommended
tightening torque: 0.5N.m. Proper cables: 0.25 ～ 1.65mm single cable/multiple core
cable
10）Please don`t put the Crimp terminal or bare wire part contact with adjacent
connector.
II. Model Illustration
□ □ □
TZ4 - R 2 8 - C
国家高新技术企业
III. Models
No. Model
□
TZ4-C28
1
□
2 TZ4-C2
□
TZ4-R28
3
□
TZ4-Q28
4
□
5 TZ4-M2
□
6 TZ7-C28
□
7 TZ7-C2
□
TZ7-M28
8
□
TZ7-M2
9
□
10 TZ6/9-IM28
□
11 TZ6/9-IM2
□
12 TZ6/9-C28
□
13
TZ6/9-C2
□
14 TZ6/9-M28
□
15 TZ6/9-M2
□
Blank: input signal is TC/RTD/Mv/Rt; "X" : input signal is 4 ～ 20mA/0 ～ 10V
：
●
Standard configuration function
：
◎
The meter has this function, but it is combined with another function. This
：
series only have one 4~20mA output, but the user can modify menu ACT to
set it as main control output or analog output.
IV. Specifications
1. Electrical parameters:
Sampling rate
Relay capacity
Power supply
Power consumption
Environment
Storage
environment
Caution of Install & Connection
C: Version
1
Blank: TC/RTD/mV/Rt input
2
Blank: without RS485
3
8: with RS485 communication
1: One alarm 2: Two alarm
4
R: Relay output Q:SSR output
5
can be changed to analog output by ACT menu)
K: SCR output (can be ordered)
M:SSR/Relay (switched by ACT)
Blank:No I:DC 4~20mA analog output (it can be
6
changed to control output by ACT menu, available
for size 6, 9)
Blank: AC/DC 100~240V
7
4:48H*48W*71L 7:72H*72W*71L 6:96H*48W*71L
8
8:48H*96W*73L 9:96H*96W*71L
TZ Series temperature controller
9
OUT1 control output Alarm output
AL1
RELAY SSR 4～20mA AL2 4～20mA RS485
OUT2
● ● ●
● ● ●
● ● ● ●
● ● ●
● ● ● ●
● ● ●
● ● ●
● ● ● ●
●
● ●
●
● ● ● ● ●
● ● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
2 times per second
AC 250V /3A Life of rated load>100,000 times
AC/DC 100 ～ 240V （85-265V） ，DC 24V
< 10VA
Indoor use only, temperature: 0~50℃ no condensation,
humidity＜85%RH, altitude<2000m
-10 ～ 60℃, no condensation
2
X: mA/V input
0: No alarm
C:DC 4-20mA(It
F: DC 24V
Analog Auxilliary
Comm.
output power
24V
◎ ● ●
●
◎
●
●
● ●
◎
●
◎
●
● ●
◎
●
◎
◎ ● ●
●
◎
●
