Summary of Contents for BEP Marine Matrix 600-DCM V3.2

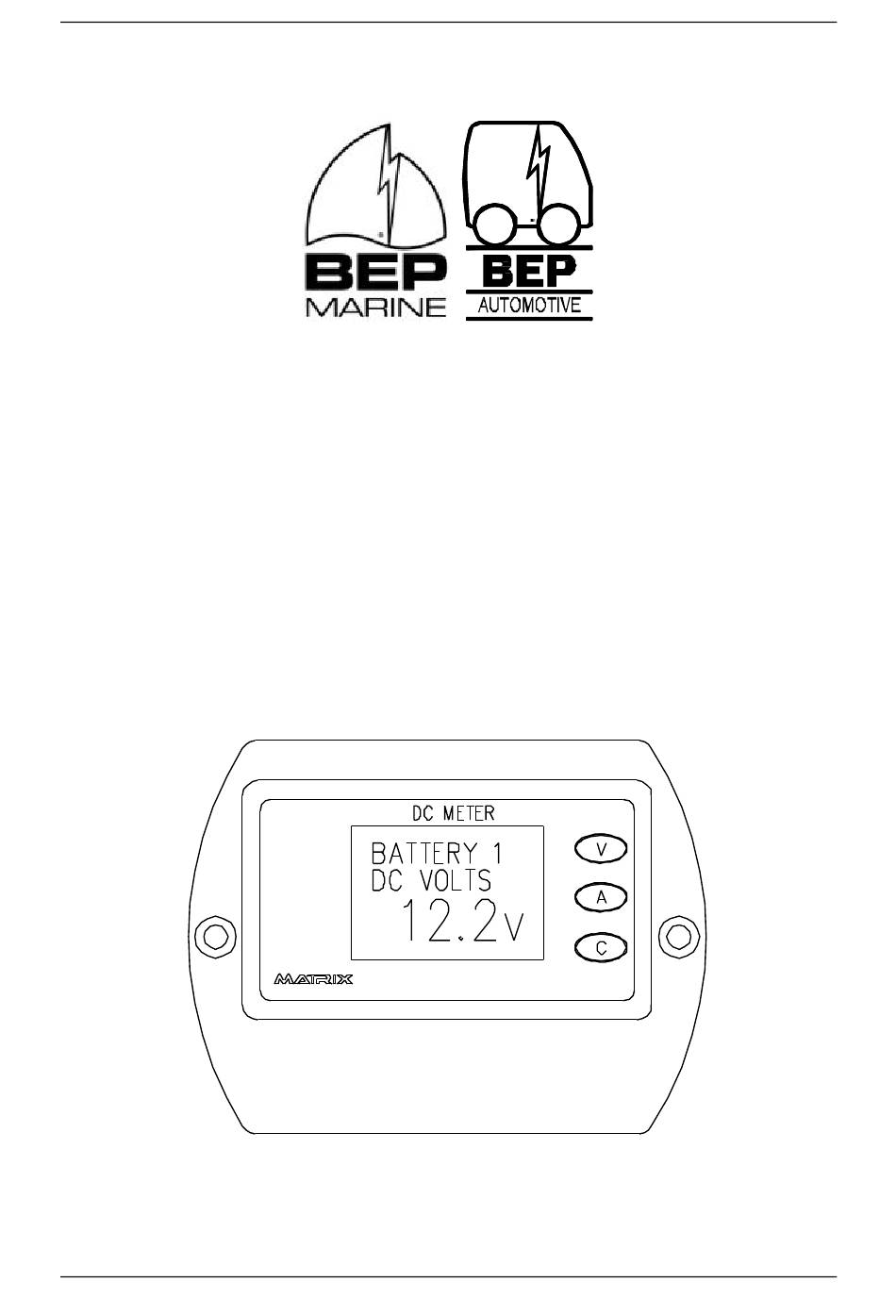

- Page 1 Copyright © BEP Marine Limited, All rights reserved BEP 600-DCM V3.2 CONTOUR MATRIX DC MONITOR INSTALLATION OPERATING INSTRUCTIONS Product version: DCM3.2 Date: 12/05/05...
- Page 2 Copyright © BEP Marine Limited, All rights reserved This page has been deliberately left blank Product version: DCM3.2 Page 1 Date: 12/05/05...
-
Page 3: Table Of Contents
Copyright © BEP Marine Limited, All rights reserved Table of Contents FEATURES ........................4 DIMENSIONS ......................... 5 INSTALLED WITH 3 VOLTAGE MONITORS............6 INSTALLED WITH BILGE PUMP MONITOR ............7 PLUG INFORMATION....................8 OPERATIONS ......................... 9 FACTORY SETTINGS ....................10 ALARMS AND ALARMS MUTE ................ - Page 4 Copyright © BEP Marine Limited, All rights reserved This page has been deliberately left blank. Product version: DCM3.2 Page 3 Date: 12/05/05...
-
Page 5: Features
Copyright © BEP Marine Limited, All rights reserved 1 Features The 600-DCM3.2 Battery Monitor offers the following features: § 1/10 of an Amp resolution in the range of +/- 0-50A § The Matrix Monitors use a dot Matrix LCD allowing for Full screen information on Function selected. -
Page 6: Dimensions
Copyright © BEP Marine Limited, All rights reserved 2 Dimensions Product version: DCM3.2 Page 5 Date: 12/05/05... -
Page 7: Installed With 3 Voltage Monitors
Copyright © BEP Marine Limited, All rights reserved 3 Installed with 3 voltage monitors Product version: DCM3.2 Page 6 Date: 12/05/05... -
Page 8: Installed With Bilge Pump Monitor
Copyright © BEP Marine Limited, All rights reserved 4 Installed with bilge pump monitor Product version: DCM3.2 Page 7 Date: 12/05/05... -
Page 9: Plug Information
Copyright © BEP Marine Limited, All rights reserved 5 Plug Information POWER SUPPLY / BATTERY BANK 1 +10 to +35V DC supply from battery bank 1 through a 1A fuse (for meter protection). BATTERY BANK 2 +10 to +35 DC Volts from Battery bank 2 through a 1A fuse. -
Page 10: Operations
Copyright © BEP Marine Limited, All rights reserved 6 Operations Apply Power Power-up screen will show for 5 seconds After 5 seconds First screen shows the Supply Battery Volts. Press button V The second screen shows 2 Battery volts. Press button V again (3RD position as volt monitor) The third screen shows the 3rd battery volts. -
Page 11: Factory Settings
Copyright © BEP Marine Limited, All rights reserved 7 Factory settings The 600-DCM3.2 is factory preset with the following settings: § Battery Capacity 220AH § Charge Efficiency § High Volts Alarm 15.00V § Low Amp Hours 100AH § Low Volts Alarm 11.00V... - Page 12 Copyright © BEP Marine Limited, All rights reserved NB: 0.01 change to Peukerts can make a reasonable change to calculated discharge. Alter in small steps. For example, 100 Amps for 1 hour = 100Amp hours. Using Peukert’s exponent of 1.25, An x T, 1001.25*1=316 Amp hours.
- Page 13 Copyright © BEP Marine Limited, All rights reserved If after some time or use (6-12months) the accuracy seems to be degrading (possibly due to battery condition, temperature, age – charging regime) it will be time to recalculate “n”. Amp hour capacity reset Amp Hour Capacity reading is reset to Max Battery Capacity when the following conditions occur.
-
Page 14: Alarms And Alarms Mute
Copyright © BEP Marine Limited, All rights reserved 8 Alarms and Alarms mute When an alarm condition occurs, the alarm will sound and the corresponding display will flash. To permanently mute any alarm, press the A button for 2 seconds. The display will show the alarm mute symbol. The alarm mute mode will remain set even when the power is removed. -
Page 15: Programming Menu Flow Diagram
Copyright © BEP Marine Limited, All rights reserved 9 Programming Menu Flow Diagram POWER UP SET ALARM DISPLAY EXIT EXIT BATT 1 LABEL PROGRAMMI BATT 2 RESET ZERO METER NG MODE LABEL BATT 3 DEFAULT LABEL RESET HI VOLT 1... -
Page 16: Setup And Programming
Copyright © BEP Marine Limited, All rights reserved 10 Setup and Programming To enter programming mode Hold buttons V & C down simultaneously for approx. 3 seconds the display will read EXIT RESET SETUP Press ‘V’ to exit programming mode. -
Page 17: Setup Mode
Copyright © BEP Marine Limited, All rights reserved 11 Setup Mode Use Up (V) / Down (A) buttons to change value then press C to proceed to the next set up screen. Set Alarm Enable/Disable all alarms Default: Enabled Battery 1 label... - Page 18 Copyright © BEP Marine Limited, All rights reserved Low amp hours alarm Default: 100 Amp Hours Up/Dn to select value, 10AH steps Range: 0-1000AH Maximum capacity Default: 220 Amp Hours Up/Dn to select value, 10AH steps Range: 60-3000AH Actual capacity...
- Page 19 Copyright © BEP Marine Limited, All rights reserved Voltage 1 calibration Adjust this setting to actual battery Voltage. To calibrate Up/Dn to select value, 0.01V steps Range: 0-32V Refer to page 9 Voltage 2 calibration As per Voltage calibration 1...
-
Page 20: Frequently Asked Questions
Copyright © BEP Marine Limited, All rights reserved 12 Frequently Asked Questions When calibrating the amps load, the display cannot be changed. You will need to do a factory Reset, Amps zero and then apply a load of more than 10A before you enter the amps calibration screen in the set up menu. -
Page 21: User Notes
Copyright © BEP Marine Limited, All rights reserved 13 User Notes Product version: DCM3.2 Page 20 Date: 12/05/05... - Page 22 Copyright © BEP Marine Limited, All rights reserved Product version: DCM3.2 Page 21 Date: 12/05/05...
-
Page 23: International Distributor List
Copyright © BEP Marine Limited, All rights reserved 14 International Distributor List Argentina Greece Singapore, Indonesia & Malaysia Baron S.R.L. Sakiotis SA Mega Electronics Best Marine Electrical Av. Libertador 1898 47 Vouliagmenis Avenue 61 Kaki Bukit Ave 1 #03-17 B1646DCS San Fernando... - Page 24 Copyright © BEP Marine Limited, All rights reserved BEP MARINE BEP AUTOMOTIVE 13 Tarndale Grove 13 Tarndale Grove Albany, Auckland, N.Z. Albany, Auckland, N.Z. Ph: +64 9 415 7261 Ph: +64 9 415 7261 Fax: +64 9 415 9327 Fax: +64 9 415 9327 www.bepmarine.com...
