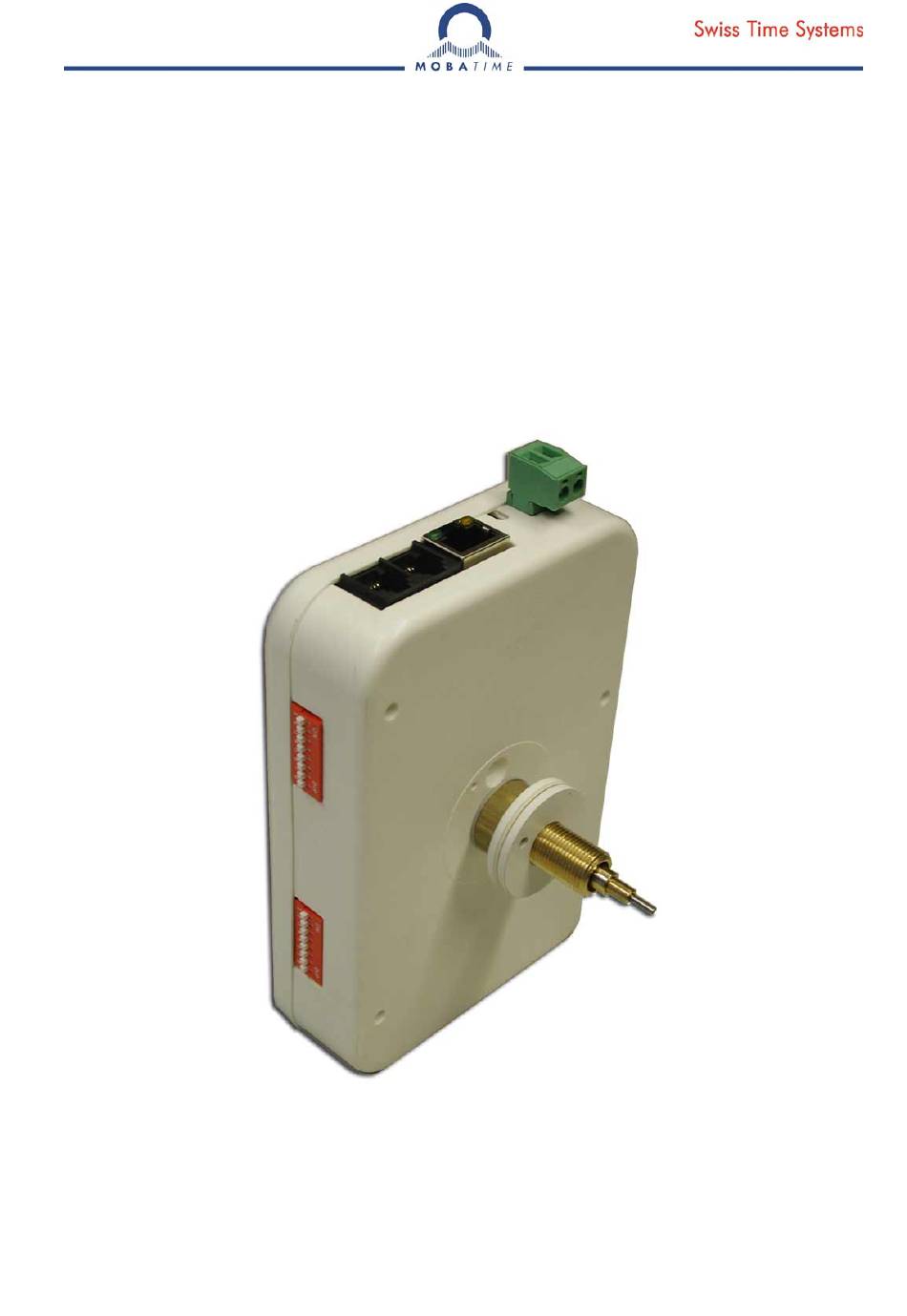

- Page 1 Installation and Operating Manual NBU 190(t) (S) 24/PoE NTP Movement Please read these instructions carefully before installation. © MOBATIME BE-800695.14...
- Page 2 The installation must only be carried out by skilled staff. It is prohibited to copy this publication or to store it on a computer system. All rights reserved. Copy- right © BÜRK MOBATIME GmbH D-78026 VS-Schwenningen / GERMANY and MOSER-BAER AG CH 3454 Sumiswald / SWITZERLAND.
-
Page 3: Table Of Contents
5.9.2 NTP Client Multicast ........................15 5.10 MOBA-NMS (MOBATime Network Management System) ............. 15 6. Update ............................16 6.1 Bootloader update ........................17 7. Connectors ........................... 18 8. Technical specifications ......................18 9. Time Zone Table .......................... 19 ... -
Page 4: Dimensions And Definitions
Movement: NBU 190t 24/PoE 204004 30 - 80 cm Movement: NBU 190 24/PoE 204005 Clock dial Disc nuts Fig. 1 Cover glas NBU 190t S NBU 190 S Fig. 2 13.7 36.5 20.2 42.4 26.6 48.6 © MOBATIME 4 / 24 800695.14... -
Page 5: Function Description
64 rules selectable by means of DIP switches). Alternatively automatic daylight saving time change according to a daylight saving time rule pro- vided by a MOBATime time zone server in the network. (1 out of 15 rules selectable by means of DIP switches). -
Page 6: Mounting Guidelines
If any hand position is wrong the hands must be adjusted again (axis must not be moved). Check the 12:00 position again (initialize procedure by interrupting the power supply or by disconnecting PoE respectively). If the hand position is OK continue with chapter 4 for further configuration. © MOBATIME 6 / 24 800695.14... -
Page 7: Configuration
The movement has two switch groups (1 and 2). Each group contains 8 DIP switches. switch group 1 switch group 2 Definition of the switch positions: Switch Position OFF: Switch Position ON: 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 © MOBATIME 7 / 24 800695.14... - Page 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Master mode. * Internal time zone 0 = UTC. With external time zone server, the value 0 means “undefined”. © MOBATIME 8 / 24 800695.14...
-
Page 9: Reset
SNMP manager address 1 0.0.0.0 / 0::0 SNMP manager address 2 0.0.0.0 / 0::0 SNMP alive trap interval [min] (1…1440) Additionally the NBU 190 can be reset by means of the PC tool MOBA-NMS. © MOBATIME 9 / 24 800695.14... -
Page 10: Operation Modes
239.192.54.0 or 239.251.34.0 is used (selection with switch 2.7). The group address is an IP ad- dress in the multicast range (224.0.0.0 to 239.255.255.255), addresses selected by Moser-Baer AG from a freely available range: -IPv4: 239.192.54.x and 239.251.34.x, whereat x = 1..15 © MOBATIME 10 / 24 800695.14... - Page 11 FF38::EFC0:360F FF38::EFFB:220F 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 © MOBATIME 11 / 24 800695.14...
-
Page 12: Slave Mode
The cascading connection may only be connected or disconnected in a powerless state of the master movement. Attention! The Slave movements may only be powered through the cascading cable from the master movement. Additional DC power supply is not allowed. Attention! © MOBATIME 12 / 24 800695.14... -
Page 13: Operation Details
If the movement operates in Unicast mode it automatically tries to obtain the network configuration from a DHCP server within the network. The DHCP options will be evaluated automatically. The accurate description can be found in the manual BE 800793 Description MOBATime Network clocks. -
Page 14: Snmp
A detailed description can be found in the manual BE-800793 Description MOBATIME network clocks. 5.6 SNMP To allow an integration into a network management system, the NBU 190 supports SNMP version 2c. The definition is specified MOBANetClock.MIB. The manual BE 800793 shows the possibilities and use of SNMP. -
Page 15: Accuracy / Synchronization Loss
NTP movements. This software allows for a central configuration of one or multiple devices. Further informations, manuals and the software itself are available on our website http://www.mobatime.com. These are also available on a USB stick (must be or- dered separately). © MOBATIME 15 / 24 800695.14... -
Page 16: Update
Firmware update Bootloader update The newest versions of the firmware and bootloader are available at www.mobatime.com Customer Area Attention: Product Resources in the respective product folder. If the delivered device contains newer software than displayed in this manual, please check the settings. -
Page 17: Bootloader Update
In case of a bootloader alarm, the selection field for the firmware (application) is deac- tivated and only made available after a successful bootloader update: Important: The bootloader file must be a .zip file. © MOBATIME 17 / 24 800695.14... -
Page 18: Connectors
Automatic daylight saving time change according to 1 out and daylight saving time change of 64 pre-defined rules automatic daylight saving time change according to 1 out of 15 rules provided by a MOBATime time zone server Accuracy Deviation typically < +/-50 ms (synchronized) Synchronization loss... -
Page 19: Time Zone Table
Port Moresby, Magadan, Vladivostok Sydney, Canberra, Mel- Sun. Oct. (02.00) Sun. Apr. (03:00) bourne, Tasmania: Hobart UTC (GMT) UTC (GMT) Honiara (Solomon Is.), Noumea (New Caledonia), Auckland, Wellington Last Sun. Sep. (02:00) Sun. Apr. (03:00) © MOBATIME 19 / 24 800695.14... - Page 20 Usually the time zone table is adapted each year. You can download the latest time zone table at our homepage: Note: www.mobatime.com Downloads Customer support Support Resources Software Tools Time Zone Table. If the delivered device contains a newer version than printed in this manual please check the time zone entries.
- Page 21 © MOBATIME 21 / 24 800695.14...
- Page 22 © MOBATIME 22 / 24 800695.14...
- Page 23 © MOBATIME 23 / 24 800695.14...
- Page 24 © MOBATIME BE-800695.14...
