  • Page 1 ELECTRONIC CASH REGISTER WITH FISCAL MEMORY TREMOL M23 USER MANUAL...

  • Page 2: Table Of Contents

    TREMOL M23 User manual CONTENTS: GENERAL INSTRUCTIONS ......................4 Used Abbreviations ........................4 Safety measures. Environment control ..................4 Safety Measures ......................4 Environment control ....................4 Introduction to ECR ........................5 General view. Composite parts................... 5 Keyboard. General view and description of the keys ..........6 Display ........................
  • Page 3 TREMOL M23 User manual “SALES” mode ......................23 SALES access. Functional keys ....................23 Basic principles while working in sales mode. Restrictions ............ 24 Article sale using barcode scanner .................... 25 Sales with quantity using electronic scale ................25 Currency operation. Sum calculation. Payment. Change type ..........25 Print invoice receipt ........................

  • Page 4: General Instructions

    TREMOL M23 User manual GENERAL INSTRUCTIONS The present manual is intended to introduce the cash register user with its functions, as well as the safety measures. The manual contains all the information about programming, selling and reporting with the device.

  • Page 5: Introduction To Ecr

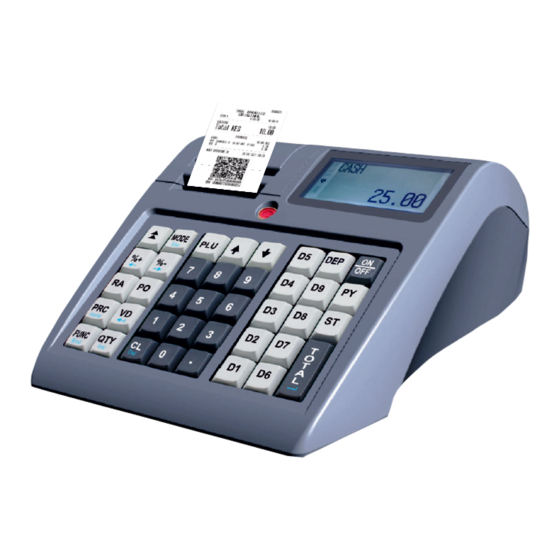

    TREMOL M23 User manual INTRODUCTION TO ECR TREMOL M23 The desktop cash register are fiscal devices, intended to register the sales in different type of commercial sites. ECR have ergonomic keyboard and built in displays for cashier and customers. The built in printer provides issuing of clear and readable notes for each operation (sale, report, receiving or paying office money etc.)

  • Page 6: Keyboard. General View And Description Of The Keys

    TREMOL M23 User manual Keyboard. General view and description of the keys The ECR Keyboard is composed by 33 keys, separated in several groups: Numeric Keys: from including - for entering digital information; Sale Keys: from for articles; Functional keys: all other keys. Functional description bellow.

  • Page 7: Functional Specifications

    TREMOL M23 User manual memory 8 GB. When the free lines in the EJ buffer are less than 500 free lines, the opened receipts is closed automatically and ECR allows printing only of daily report and Fiscal Memory report. ECR allows reading of the EJ through the PC port by external request.

  • Page 8: Drawer

    TREMOL M23 User manual Drawer ECR has possibility to control cash drawer. The drawer is opened each time a receipt is closed and when making received on account or paid out operations with the key. The drawer opening can be forbidden with parameter Drawer.

  • Page 9: Installation And Putting Into Operation

    TREMOL M23 User manual Example: Text on the side explains exactly what is shown in the example:: Key sequnce Display Art.00001 123 ! 1 pcs x 123.00 123.00 Text showing the entered data and ECR respond. INSTALLATION AND PUTTING INTO OPERATION ...

  • Page 10: Accessing The Operation Modes Of Ecr

    TREMOL M23 User manual ACCESSING THE OPERATION MODES OF ECR  The operation modes of the ECR are selected by pressing the keys and entering the password with the keyboard. The passwords can be changed in “Programming” operation mode. If password ...

  • Page 11: Programming

    TREMOL M23 User manual PROGRAMMING DEFINITION OF PROGRAMMING. BASIC PRINCIPLES  The programming of ECR is the process of setting-up the cash register by defining the parameter values corresponding to its point of sale and user requirements. The programming is performed in “PROGRAM” operation mode.

  • Page 12: Functional Keys

    TREMOL M23 User manual 9 Peripherals Communication parameters settings D1 Customers Programming customer parameters %- Set date/time Date and Time setting Functional keys In all programming sub-modes the key cancels the operation and returns the ECR in the previous menu. Use keys to select the function from scrolling menu.
  • Page 13 TREMOL M23 User manual Functional keys Switch between small letters, capitals numbers icons: abc, Abc, ABC, 123 . , / ? ! ' \ " # $ % & * = < > @ + - ( ) : [ ] \ _ ^ |...

  • Page 14: Programming The System Parameters Of Ecr [Mode 0]

    TREMOL M23 User manual PROGRAMMING THE SYSTEM PARAMETERS OF ECR [MODE 0]  By the system parameters the ECR can be configured according the store characteristics and client demands. There is scrolling menu with choice of system parameters as shown in the bellow table:...

  • Page 15: General Parameters

    TREMOL M23 User manual GENERAL PARAMETERS Parameter description Default value, range Parametrii generali Line1: COMPANY NAME Header/Footer line submenu: Line 2: COMPANY Header No:1 ADDRESS …. 0 Header Line 3* : * * * Antet No:10- Header lines from 1 to 10...

  • Page 16: Programming Name Of Payment And Exchange Rate [2]

    TREMOL M23 User manual PROGRAMMING NAME OF PAYMENT AND EXCHANGE RATE [2]  ECR may operate with five different types of payment with following characteristics: main CASH 0 – key (prints always CASH), at the display is shown the programmed name (default — national currency);...

  • Page 17: Department Programming [4]

    TREMOL M23 User manual Function keys: Function / Value Value range default Scrolls to lesser VAT Rate group Up to group E Scrolls to greater VAT Rate group Up to A Digit 0.00% to 99.99 % Set tax rate value of selected VAT А...
  • Page 18 TREMOL M23 User manual Price Set/show selected article price 0.00 to 9999999.99 HSCode HSDesc VAT group Set / Show selected article VAT Number from 1 to 5, Group characteristic corresponding to A, B, C, D, E Measurement 1 pcs; 2.g; 3.kg; 4.t; 5.L; 6.m;...

  • Page 19: Programming Article Barcode By Barcode Scanner

    TREMOL M23 User manual Programming article barcode by barcode scanner Choose article. Read the article barcode on the label with the connected to ECR and setup barcode scanner. If the barcode is read correctly, a little sound signal is emitted and the barcode is printed.

  • Page 20: Connection With Pc In Programming And Reporting Line Mode [7]

    TREMOL M23 User manual CONNECTION WITH PC IN PROGRAMMING AND REPORTING LINE MODE [7]  ECR receives commands from PC interface. Display reading in this mode is: -- Line -- ECR SYSTEM TESTS.[8]  In this mode is possible to check functionality of different ECR modules.

  • Page 21: Set Communication Parameters [9]

    TREMOL M23 User manual SET COMMUNICATION PARAMETERS [9] Name Function Value range default UART is for connection with PC. Values Available baud rate values UART speed are selected with . To set the baud are: 9600, 19200, 38400, 57600, 115200.

  • Page 22: Set Date And Time

    TREMOL M23 User manual City/Postal Up to 30 characters Exemption # Up to 30 characters Print data for all customers Print all Print data for selected customer SET DATE AND TIME  Date and time can be set with date and time not earlier then the last document stored in EJ or last fiscal record in FM.

  • Page 23: Sales" Mode

    TREMOL M23 User manual “SALES” mode  Here are described the operation in STORE operation mode. SALES ACCESS. FUNCTIONAL KEYS The sales mode is accessible by login password. The password is 6 digits max. If the password is shorter press after entering the password.

  • Page 24: Basic Principles While Working In Sales Mode. Restrictions

    TREMOL M23 User manual Register percent discount/addition with Register percent discount/addition with the programmed percentage over entered percentage over transaction or ST transaction or ST Register value discount / addition with entered value after sale Out of receipt make received on account...

  • Page 25: Article Sale Using Barcode Scanner

    TREMOL M23 User manual ARTICLE SALE USING BARCODE SCANNER Scan the article barcode. The article must have programmed barcode and price. If the barcode matches with any article the sale is registered. Before scan is possible to set quantity and price.

  • Page 26: Print Invoice Receipt

    TREMOL M23 User manual PRINT INVOICE RECEIPT  ECR can print customer receipts /invoices/ credit note/ debit note /. The receipt has the following additional properties: daily invoice number; customer data field – the identification and VAT numbers of the customer are entered before receipt beginning.

  • Page 27: Ecr Reports

    TREMOL M23 User manual ECR Reports  The ECR reports contain information about all sales, money flow, stock movement. Depending on the chosen report, reading or reading with clearing of the reports is performed. RAPORT Z To select one press the corresponding key.

  • Page 28: Raport X

    TREMOL M23 User manual RAPORT X Functional keys: Name Function Daily X report Daily fiscal report Brief or detailed report can be printed. The detailed report FM by date contains each daily record and summary information about the period. The brief report contains only records date and number in the period and summary sums.
  • Page 29 TREMOL M23 User manual FM events report This is report of events, stored in the FM. Export data Files export to external data storage. You can use Export JSON Flash memory device connected to USB interface. Report EJ After selection of submenu choose the period of data...

  • Page 30: Errors And Restrictions During Ecr Operation

    TREMOL M23 User manual ERRORS AND RESTRICTIONS DURING ECR OPERATION  During the operation of ECR are possible errors because of misuse, registers overflow or other restrictions. DISPLAYED MESSAGES display message situation meaning troubleshooting Department no price or forbidden press...

  • Page 31: Printed Error And Restriction Messages

    TREMOL M23 User manual PRINTED ERROR AND RESTRICTION MESSAGES Print message Meaning Troubleshooting Power down Power supply lost ECR finished the operation The fiscal memory is full and may be read only. Replace the fiscal memory according to Fiscal Error...
