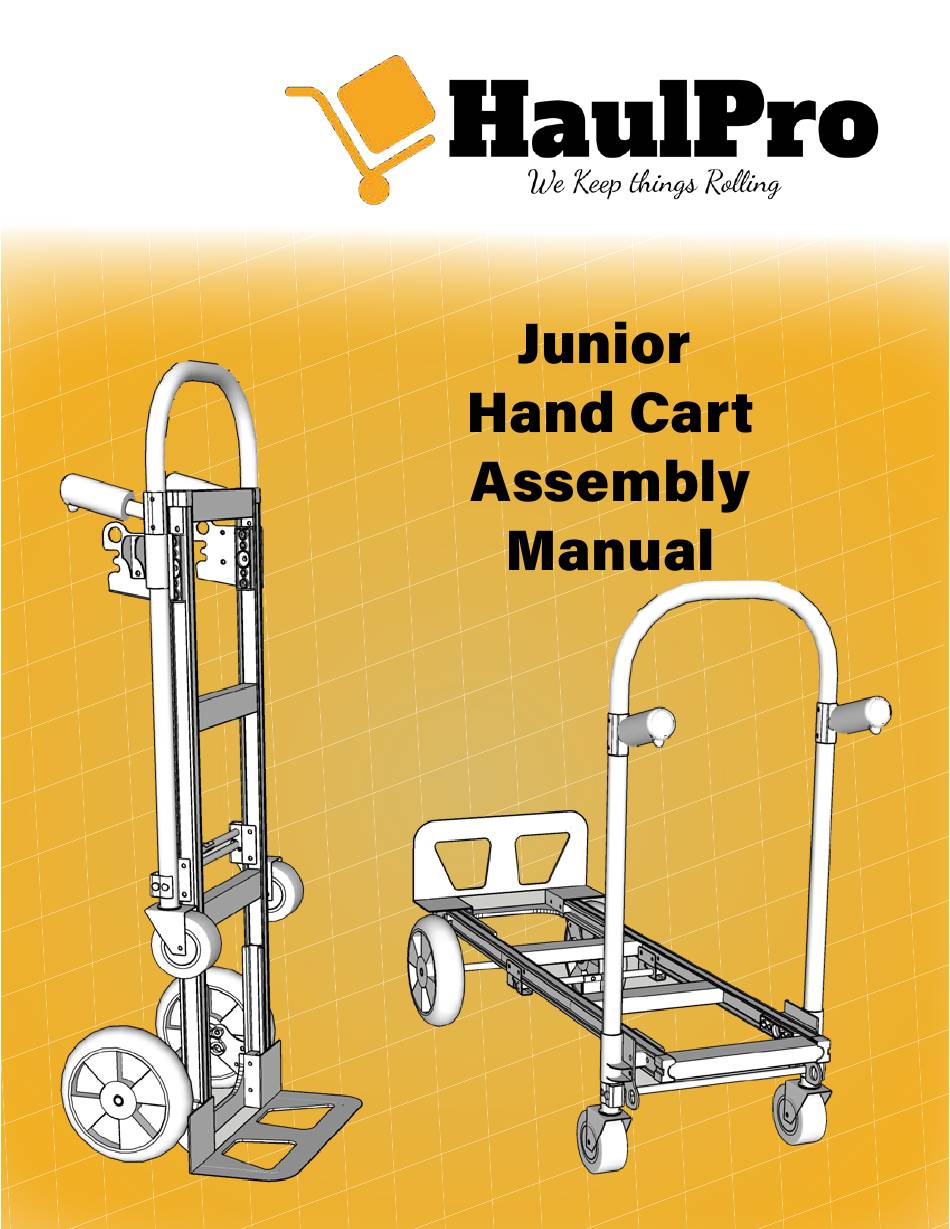

Summary of Contents for HaulPro Junior
- Page 2 Check for smaller packaging! PRO TIP! Take count of all the parts to make sure that you have everything before you start! Tools Tools...
- Page 3 Parts Parts Frame Wheel Bracket List List Channel Filler Axel 10” Wheels Nose Plate Handle Nose Plate Nut 1 Nut 2 Washer Cotter Pin Bolt Bolts...
- Page 4 Start by laying the frame down with the bottom STEP facing you. Note round cross bars should be facing up. PRO TIP! Top of the frame has the rounded handle.
- Page 5 Place Nose Plate down and STEP slide Channel Filler, Frame, and Wheel Bracket together. Use Base Bolts and Nut 1. Hand Tighten Top View cut away PRO TIP! Can be easier to assemble if you lie the nose o the end of a table to bolt Wheel Frame...
- Page 6 Add 2 Washers to Axel, STEP Wheel, another 2 Washers, and then put cotter pin inside hole in axel. Bend cotter pin with pliers to secure wheels. PRO TIP! Make sure notch in wheel is facing outwards...
- Page 7 STEP Turn Handles to face toward the back of the assembly and add two handle bolts and nuts into the holes to secure handles PRO TIP! Make sure notch in wheel is facing outwards...
-
Page 8: Operation
Pressing the lever down, allows the handles Operation to be pulled through the frame. PRO TIP! Lever can be pressed with your foot while you pull the handles! - Page 9 Push down on frame to ensure it’s completly in the 2nd position.
- Page 10 Pull up on frame to return to the upright position CLICK * Handles click into place to make it safe to use in the upright position...
- Page 11 Contact Us today for help assembling or to order replacement parts Thehaulpro@gmail.com...
