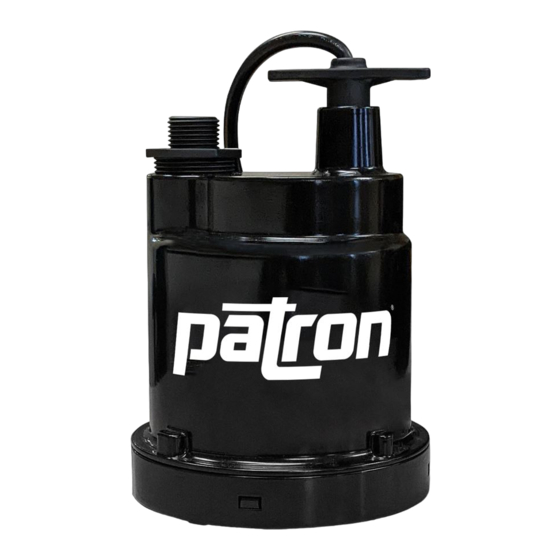

Summary of Contents for Rentquip Patron SP Series

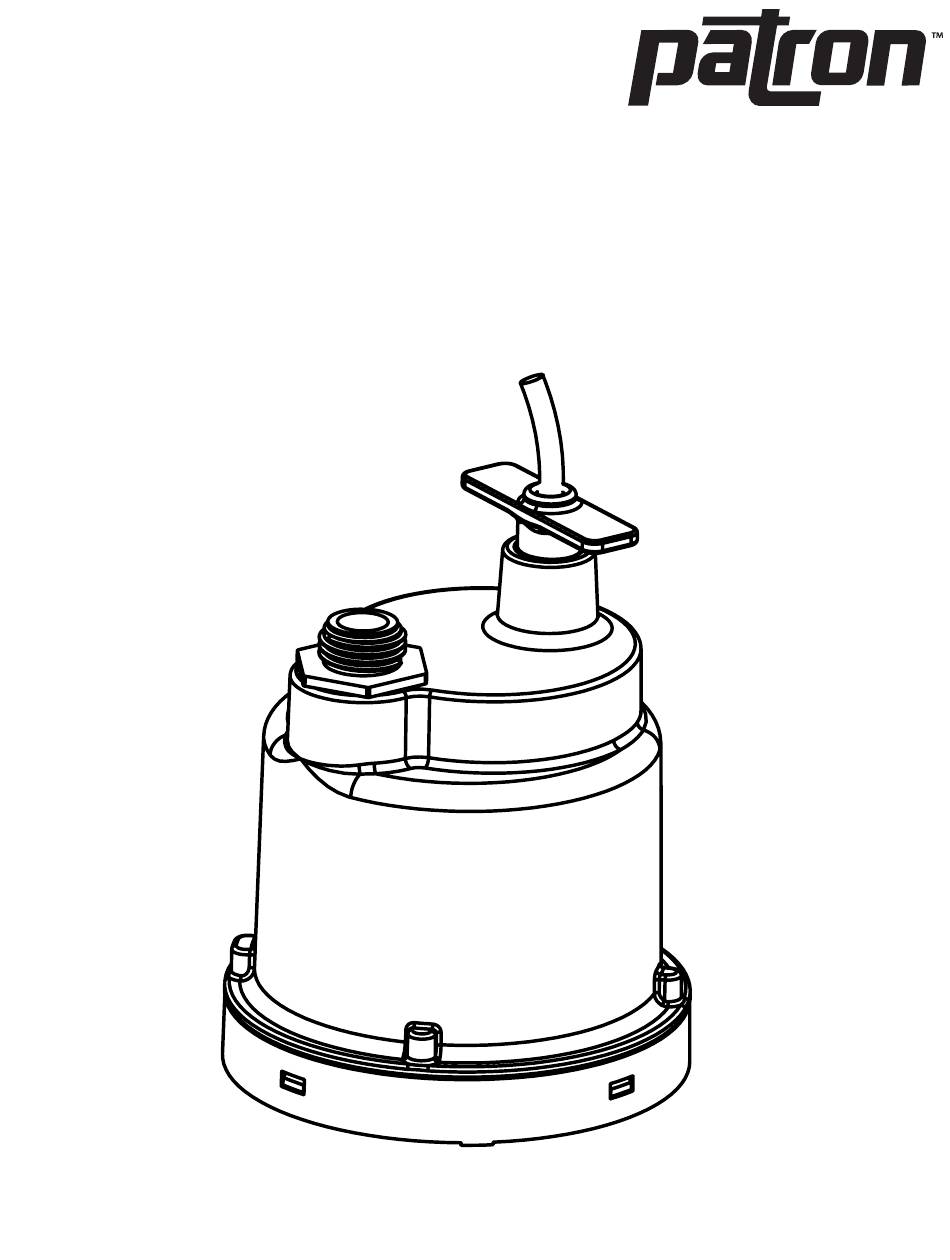

- Page 1 Submersible Utility Pump Owner’s Manual SP Series Teral Inc.
- Page 2 OWNER’S MANUAL SUBMERSIBLE UTILITY PUMP THANK YOU FOR SELECTING OUR PATRON SP SERIES SUBMERSIBLE UTILITY PUMP FOR YOUR PUMPING REQUIREMENT. PLEASE TAKE A MOMENT TO REVIEW THIS MANUAL BEFORE, INSTALLING, OPERATING OR SERVICING THESE PUMPS. THE PUMP SHOULD NOT BE USED OTHER THAN THE APPLICATIONS LISTED IN THIS MANUAL.
- Page 3 CONTENT Safety Instruction................2 Before you Start................2-3 Pump Identification................3 Installation..................3-4 Pump Operation................4 Maintenance..................4-5 Key Specifications & Parts List............5 Trouble Shooting................6 Product Disposal................6 SAFETY INSTRUCTION WARNING All electrical work must be performed by an authorized electrician, in compliance with local electrical codes.
- Page 4 CAUTION • When installing the pump, be mindful of the pump’s center of gravity and weight. Failure to do so, may result in the pump to fall and break which may lead to injury. • This pump is NOT designed for applications involving Acid, or Alkaline. •...
- Page 5 ELECTRICAL WARNING The electrical voltage required to operate this pump can burn, shock, or even cause death. Before, installing, operating or servicing this pump, please thoroughly read through this manual. • DO NOT, splice the power cord. • DO NOT, handle or service the pump while it is connected to the power supply. •...
- Page 6 WARNING Accidental starting of the pump can cause severe injury or death. ALWAYS, disconnect the electrical power before examining/working on the pump. CAUTION Disassembling the pump or modifying the pump will void manufacturer warranty. ALWAYS, check that the voltage and amperage readings are in line with the nameplate of the pump. Check if the water flow is normal.
- Page 7 TROUBLE SHOOTING CONDITION PROBABLE CAUSE CORRECTIVE ACTIONS Ensure that pump is correctly plugged into Loose Connection the outlet. Check power and correct connection. Check to see if breaker has tripped. Incorrect Voltage / Amps Reset breaker or replace with correct Pump Fails to Start or beaker size under local electrical code.
- Page 8 PATRON PRODUCTS A Division of Rentquip 1-800-818-1199 www.patronproducts.com TAD00715-0-E...
