Summary of Contents for Ravendo 164014

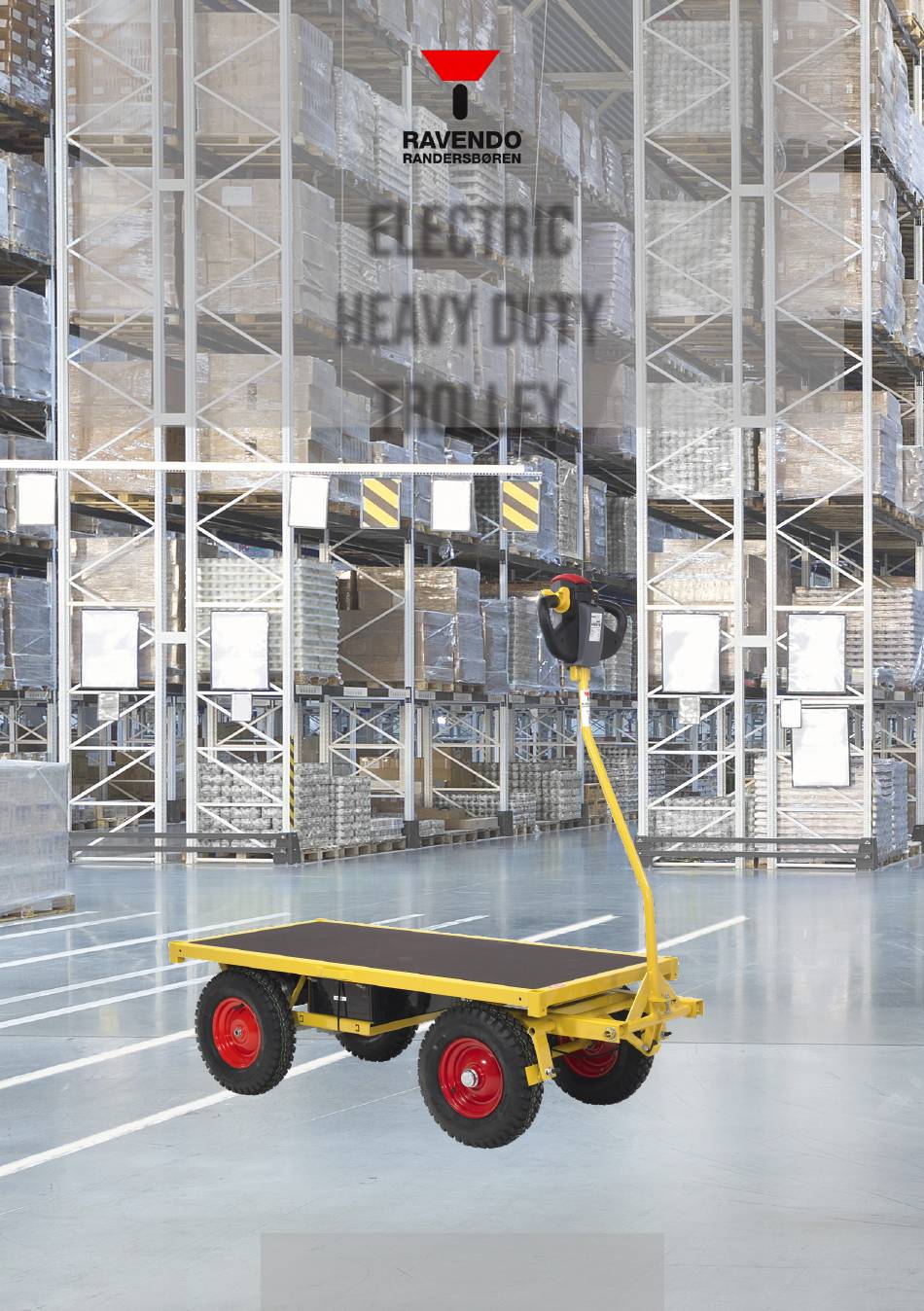

- Page 1 164014 | 164114...
- Page 2 VERSION adapted to the purpose by Ravendo A/S This user manual is an English translation of the manufacturer’s original user manual. Never try to modify or adapt the product for This user manual is version 1.1...
-
Page 3: Table Of Contents
CONTENTS PRODUCT VIEW........................USER INSTRUCTIONS ......................DRIVING INSTRUCTIONS ....................... CHARGING INSTRUCTIONS ....................TRANSPORT OF THE TROLLEY ....................MAINTENANCE ........................MAIN FUSE REPLACEMENT ....................SERVICE ..........................WARRANTY..........................TROUBLESHOOTING ........................TECHNICAL SPECIFICATIONS....................CONFORMITY DECLARATION....................WIRING DIAGRAM........................SPARE PART LIST ........................... -
Page 4: Product View
PRODUCT VIEW Machine plate Tiller head Load platform Mounting holes for corner posts and sides Top plate Mechanical brake Trolley with corner posts Trolley with corner posts and sides... - Page 5 Charging socket Front wheel Disengagement Traction wheel Motor Motor Main fuse Control box Batteries...
-
Page 6: User Instructions
BETJENINGSVEJLEDNING TILLERHEAD A: Status light B: Horn C: Accelerator and driving direction D: Belly-button E: Key switch A: STATUS LIGHT The status light indicates whether the heavy duty trolley is on or off as well as any error messages on the electric system. When the status light is on, the trolley is on. - Page 7 Tilt the wheel down approximately to ho- H: Mechanical brake rizontally to deactivate the mechanical brake. The heavy duty trolley may only be F: CHARGING SOCKET manoeuvred when the handle bar is tilted The charging socket is used to charge the down and the mechanical brake is thus batteries of the heavy duty trolley.
-
Page 8: Driving Instructions
DRIVING INSTRUCTIONS THE FIRST DRIVE WITH THE HEAVY DUTY In case of error on the electrical system, TROLLEY the status light flashes in a given sequence The first time you drive the heavy duty trol- which can be read to find the reason for ley, you should drive without any load and the error. - Page 9 brake is activated when the trolley is not in use. MANUAL DRIVE WITH DISENGAGED MOTOR If you need to push the heavy duty trolley 7. Always switch off the heavy duty trolley manually, without using the motor, this can and take the key with you when leaving it to be disengaged.
-
Page 10: Charging Instructions
CHARGING INSTRUCTIONS The below charging instructions apply to the designed so that it cannot drive, when the supplied standard charger, Victron Energy charger is connected. Impulse S8. Charging must take place in dry 4. When the charger is connected, the lamp frost-free environment with good ventilation. - Page 11 The battery is a wear part, which may need to be replaced approx. every third year. Replacement of the batteries must only be performed by trained staff. For replacing of batteries, contact Ravendo A/S or your dealer.
-
Page 12: Transport Of The Trolley
TRANSPORT OF THE TROLLEY The heavy duty trolley can be transported in Use a suitable ramp to get the heavy duty an ordinary service or delivery van when the trolley in and out of the van. Observe the re- drawbar is removed. quirements for maximum gradeability listed The heavy duty trolley must be securely under technical specifications. -
Page 13: Service
Working with Only original spare parts supplied by Raven- the electric installations of the heavy duty do A/S or a supplier approved by Ravendo trolley is highly dangerous for unskilled A/S may be used. persons. Before working on the motor and the other electric parts, the batteries must be disconnected. -
Page 14: Troubleshooting
TROUBLE-SHOOTING The heavy duty trolley’s electric system The sequence is repeated until the fault consists of several interconnected compo- has been rectified or the heavy duty trolley nents, all of which are important so that the is switched off via the key switch. The two daily operation can take place safely and described number of flashes in the sequen- properly. - Page 15 Fejlkode Afsnit Forklaring Mulig fejlkilde 1: Temperature >80°C or below -10°C 2: Excessive load Under or over Thermal fault 3: Driving in extreme temperature temperature 4: Automatic brakes does not release 1: Defective wiring connection between the tiller head and the control box Throttle fault Fault, throttle pot fault 2: Defective signal error to accelerator...
-
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS Heavy duty trolley TW 1500 Item No. 164014 Dimensions : 1.600 mm, B: 700 mm, L : 1.700 mm Wheels Pneumatic: 4.00 x 8. Hub: 20/25 x 85 mm. See below illustration : 650 mm, B: 700 mm, L : 2.900 mm... -
Page 17: Conformity Declaration
Klokkestøbervej 3-5 DK-8800 Viborg Hereby declares that our product Heavy duty trolley, type number 164014 • has been designed according to all relevant parts of the Machinery Directive 2006/42/EC • has been tested and approved according to the following harmonized standards:... -
Page 18: Wiring Diagram
WIRING DIAGRAM OR 2,5mm2... -
Page 19: Spare Part List
SPARE PART LIST Only use original spare parts or spare parts that have been approved in advance by Ravendo A/S or IMMO A/S. Use of non-original spare parts or non-original accessories will void any warranty and liability of the manufacturer. For purchase of spare parts, please contact Ravendo A/S. - Page 20 www.ravendo.com...
