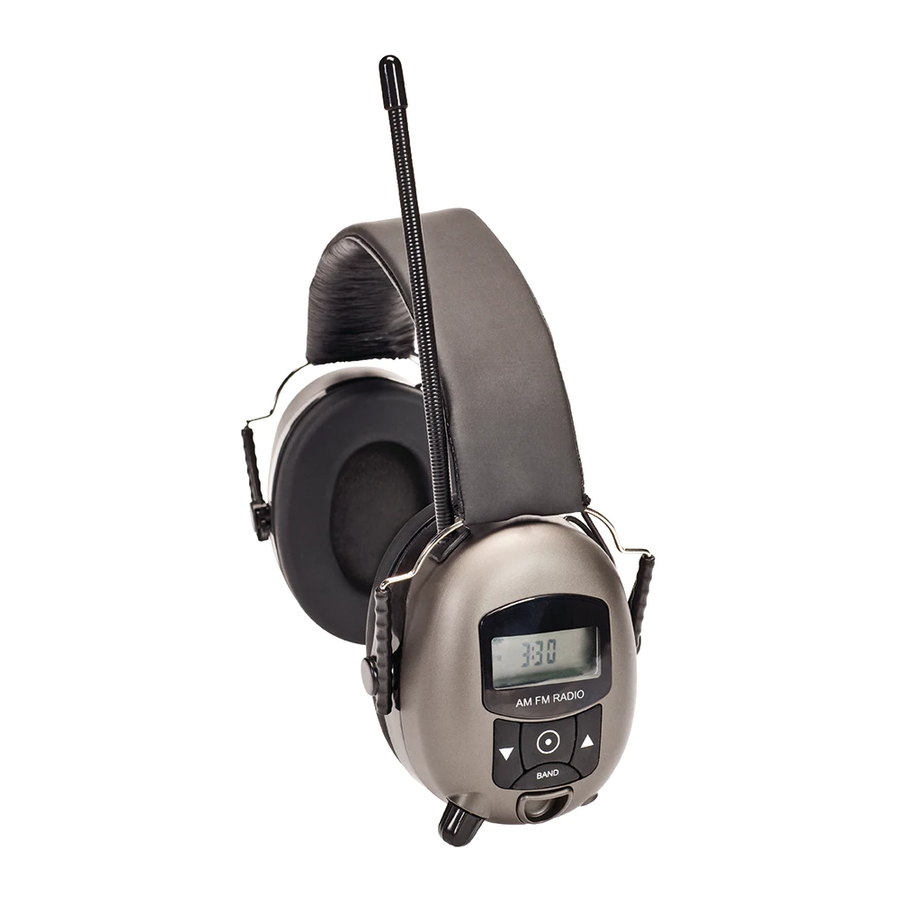

SAFETY WORKS 10121816 - MP3/AM/FM RADIO and HEARING PROTECTOR Manual

This hearing protector is designed to reduce exposure to harmful levels of noise. To get the best comfort, fit and function from this product, read this User Instruction Manual carefully before operating this unit. Save this Manual for future reference. For details on noise reduction, refer to the attenuation table.

Follow an appropriate hearing conservation program, which includes adequate monitoring and audiometric testing, to ensure effective hearing protection. Improper use of the hearing protector or failure to implement an appropriate hearing conservation program, including adequate monitoring and testing can result in hearing loss or other serious personal injury.

COMPONENTS

1. FM Antenna
2. LCD Display
3. Tune /Minute Adjustment Arrow
4. Menu/Time Setting Button
5. Band Selector Button
6. Power ON/OFF and Volume Control Knob
7. Tune /Hour Adjustment Arrow
8. Battery Compartment and Cover
9. Auxiliary Jack
10. Two (2) AA Batteries
11. Auxiliary Jack Cord
12. Ear Cup Cushion
13. Acoustic Foam Absorbent

SPECIFICATIONS

Power Supply
DC 3V two "AA" 1.5 V sized (UM-3) batteries or equivalent

Frequency Range
AM Frequency: 540-1700 kHz
FM Frequency: 87.5-108 MHz

BATTERY INSTALLATION

1. Lift open the BATTERY COVER to reveal the COMPARTMENT (8) using the tab at the bottom. Be careful not to lose the cover.
2. Insert TWO (2) HEAVY DUTY AA BATTERIES (10) ensuring the polarity is correct according to the diagram inside the battery compartment. Incorrectly installed batteries could damage the unit.
3. To close the BATTERY COMPARTMENT, place cover over battery compartment and snap into place.

ADJUST THE FIT

1. Don the ear muffs with the controls over your right or left ear.

   Spread the ear cups only enough to clear the ears.
2. Brush hair from beneath the cushions with your hand as much as possible.

   Make sure the cushions seal tightly against our head. Foreign objects (such as pencils) between the ear cup and your head reduce the efficiency of the ear muff. Use glasses with smallest temple available (cable type is best).
3. With the headband over the crown of your head, position the muffs to completely enclose your ears.

   The muffs only provide hearing protection when worn with the headband over the crown of your head.
4. Slide the muffs up or down to adjust for a firm, comfortable fit.

   Make sure the cushions seal tightly against your head. Foreign objects (such as pencils) between the ear cup and your head reduce the efficiency of the ear muff. Use glasses with smallest temple available (cable type is best). Spread the ear cups only enough to clear the ears. Do not reform or reshape the headband.

RADIO OPERATION

1. Turn Unit On - Turn the power ON/OFF KNOB (6) clockwise from the OFF position and adjust the sound level by turning the same knob (6). There will be a slight delay while the radio searches for signal. DO NOT turn up volume until the signal is found and the volume can be adjusted appropriately.
2. Manual Search - Press a TUNE BUTTON (7) or (3) step by step until it reaches your favorable station. The interval is 10 kHz per step for AM and 0.1 MHz for FM.
3. Auto Search - Press and hold a TUNE BUTTON (7) or (3) for two seconds, release the button when the auto scan starts. Auto scan will stop when a clear signal is reached. Repeat the steps until it reaches your desired station.
4. Set Preset Station - There are 16 preset stations, 8 stations for each band. To preset your favorite station into memory, tune to the selected station. Press and hold MENU BUTTON (4), release the button when the "M" and the present station number (1-8) are flashing. Then press TUNE BUTTON (7) or (3) to select the desired position (1-8). Press MENU BUTTON (4) again to confirm the setting. When a new station is stored, the new selected station will replace the previous setting.
5. Listen to the preset station - Press the BAND SELECTOR BUTTON (5) first to choose AM or FM. Then press the MENU BUTTON (4) to reach your preset station. Press the MENU BUTTON (4) again to select preset stations M1 to M8.

TIME SETTING

1. Turn off the radio or auxiliary device with the POWER KNOB (6).
2. Press MENU BUTTON (4).
3. When time is flashing, press TUNE BUTTON (7) to adjust the hour and TUNE BUTTON (3) to adjust the minute. Press MENU BUTTON (4) again to accept the setting.

AUXILIARY JACK OPERATION

1. Connect external audio devices (such as an MP3 player) through the AUXILIARY JACK (9) using the AUXILIARY JACK CORD (11).
2. Once an external audio device is connected, the radio automatically shuts off.
3. If an external audio device is connected, the volume should be adjusted using the device—not the VOLUME CONTROL KNOB (6) on the headset.

PLEASE NOTE:

• The speaker volume is limited to comply with OSHA regulations.
• Radio reception quality may be slightly distorted depending on surroundings.
• To prevent damage to the radio, do not use in a high-temperature or high-humidity environment for prolonged periods of time.
• To prevent damage to the hearing protector and radio within, do not subject it to rough handling.

MAINTENANCE

1. Inspect the hearing protector regularly for cracks and signs of leakage.
2. Ear muffs, and in particular, cushions may deteriorate with use and age. Replace ear muff if any component is worn, cracked, or damaged.
3. Clean the outside of the muffs and cushions with soap and a damp cloth.

   Do not use solvents or abrasives. This product and its performance may be adversely affected by certain chemical substances.
4. After use, moisture may accumulate inside the ear cups. To avoid moisture damage to electronic components, the ACOUSTIC FOAM ABSORBENT (13) must be removed regularly, and the ear cups/contents allowed to dry.
5. To remove, reach inside the EAR CUP CUSHION (12) and pull out the ACOUSTIC FOAM ABSORBENT (13).

   Do not touch the electronics board or cables!
6. Once dry, reinstall the ACOUSTIC FOAM ABSORBENT (13) by placing it in the ear cup to completely cover the electronics.

STORAGE

1. Ensure that the muffs are clean and dry before storage.
2. Store the muffs at room temperature, away from dust.
3. Do not store in direct sunlight. Exposure to direct sunlight in places such as car interiors, which may reach temperatures of up to 140°F (60°), may warp the product, affect the performance of the electronics or lead to malfunctioning.
4. Do not store where the temperature could drop below freezing.
5. Do not extend the headband.
6. To avoid uneven compression of the ear cup cushion, ensure that the cushions lie flat against each other and that there are no creases in them.
7. To prevent damage, remove batteries.

TROUBLESHOOTING

If the radio stops working:

1. Check for correct battery installation.
2. Make sure the battery plates are clean and making contact with the batteries.
3. Ensure the hearing protector is dry. If necessary, perform Steps 4-8, Maintenance section.
4. Install new batteries.

TESTING AND APPROVALS

The Noise Reduction Rating (NRR) is third-party tested in accordance with ANSI S3.191974.

Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

USE LIMITATIONS

The level of noise entering a person's ear when hearing protection is worn as directed is closely approximated by the difference between the A-weighted environmental noise level and the NRR.

Example:
If the environmental noise level measured at the ear is 92 dB(A), and the NRR is 24 decibels (dB), the level of noise entering the ear is approximately equal to 68 dB(A): 92 dB(A) - 24 dB(A) = 68 dB(A).

For noise environments dominated by frequencies below 500 Hz, use C-weighted environmental noise levels.

The EPA has selected the NRR as a measure of a hearing protector's noise reducing capabilities. There is no warranty as to the suitability of the NRR as a measure of the actual workplace protection since such protection is highly dependent on user training, motivation, and utilization. Refer to the above instructions for proper fit. A better estimate of workplace protection can be obtained by derating the labeled NRR of this, or any other hearing protector, by 50%.

Although hearing protectors can be recommended for protection against the harmful effects of impulsive noise, the Noise Reduction Rating (NRR) is based on the attenuation of continuous noise and may not be an accurate indicator of the protection attainable against impulsive noise such as gunfire. The noise reduction capability of this hearing protector against impulsive noise may be estimated by referring to the attenuation performance of the hearing protector at the frequency of the impulsive noise exposure as provided in the attenuation data on the package. To estimate the noise reduction capability of this hearing protector against impulsive noise, refer to the Attenuation Data above or on the product package. If the frequency of the impulsive noise is 2000 hertz (Hz), for example, the mean (average) reduction of noise attained by test subjects at the frequency was 34.7 decibels (dB). Using the standard deviation of ± 3.2 dB. the estimated noise reduction at 2000 Hz would range from 31.5 dB to 37.9 dB. Refer to manufacturer of equipment producing the impulsive noise to determine the frequency.

Check performance before using this product. This product contains small parts that may present a choking hazard. Not for children under 3 years. Hearing protectors in general can block external sounds such as warning calls, alarms, and other important signals. Pay special attention to what is happening around you when wearing hearing protectors. Setting the volume too high can further reduce your ability to hear external sounds, which could expose you to considerable risk and lead to serious accidents. Adapt the volume to your working situation. These ear muffs contain batteries and electrical components that may cause ignition in flammable or explosive atmospheres. DO NOT use in environments where sparks may cause a fire or explosion. Misuse can result in injury or death. DO NOT use the radio while driving a car. The radio and muffs could block surrounding sounds and increase the risk of having an accident. Failure to follow the warnings and instructions in this User Instruction Manual can result in serious personal injury or death.

For more information, call 1-800-969-7562 or visit our website at www.SafetyWorks.com
SAFETY WORKS, INC. | Latham, New York 12110

Safety Works 1511 (L) Rev. 9 ©2017 Safety Works Prnt. Spec.10000005196 (H) Doc No. 10121819
