SteelSeries STRATUS DUO Manual

find help at support.steelseries.com

PACKAGE CONTENTS

• Stratus Duo Controller
• USB Cable
• USB Wireless Adapter
• Product Information Guide

PLATFORM COMPATIBILITY

• Windows 7 +
• Steam & Steam Big Picture Mode
• Oculus Rift & Oculus Go
• Samsung Gear VR

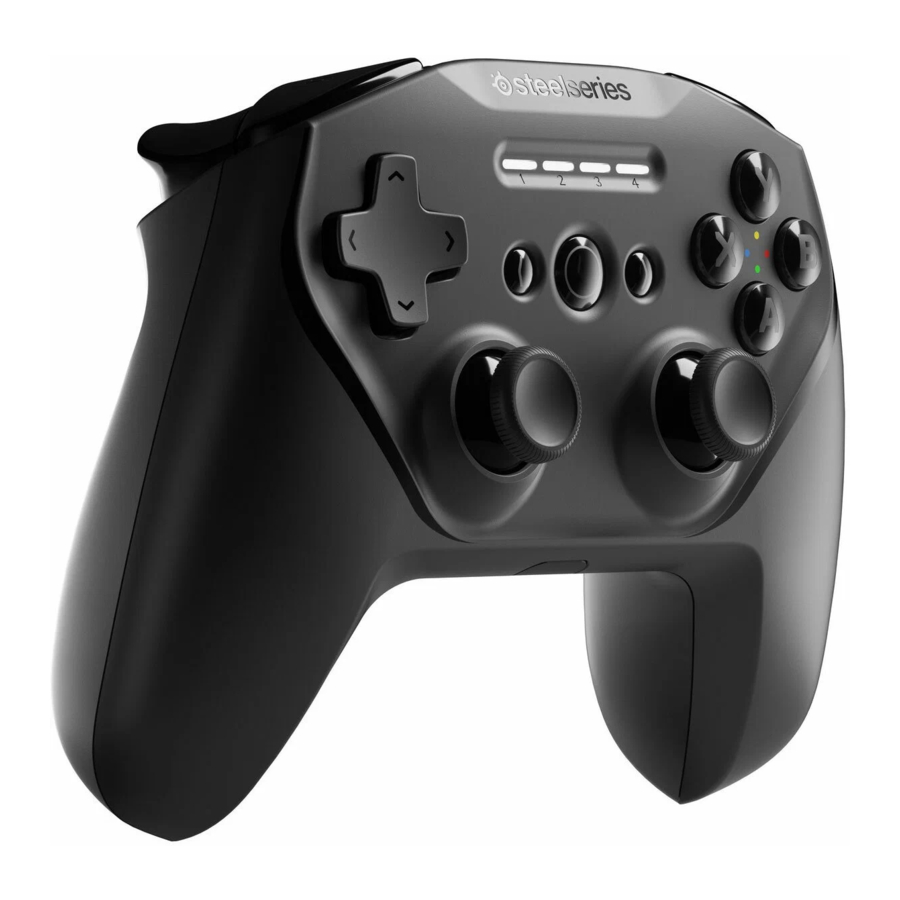

PRODUCT OVERVIEW

1. 8-way Directional Pad
2. Back/Select Button
3. Player Indicator LEDs
4. Forward/Start Button
5. A, B, X, Y Buttons
6. Home Button
7. Analog Joysticks
8. USB Wireless Adapter

9. USB Cable

10. Wireless Mode Switch
11. Wireless Pairing Button
12. Micro-USB Port
13. Battery Level Button
14. Power Switch
15. R1, L1 Shoulder Buttons
16. R2, L2 Analog Triggers

* Find accessories and replacement parts at steelseries.com/gaming-accessories

SETUP

CONNECTION MODES

find help at support.steelseries.com

GETTING STARTED ON WINDOWS & STEAM

1. Slide the Wireless Mode Switch to 2.4GHz and plug in the included USB Wireless Adapter to an available USB port on your PC
2. Slide the Power Switch from Red to Green to power on the Stratus Duo
3. On power up, your current battery level will be displayed across the four player indicator LEDs for three seconds
4. Your Stratus Duo is already paired to the USB Wireless Adapter when it arrives and should not need to be repaired
5. Your player number will now light up on the appropriate player indicator LED. You are ready to play!

GETTING STARTED ON ANDROID, SAMSUNG GEAR VR & OCULUS GO

1. Slide the Wireless Mode Switch to Bluetooth
2. Slide the Power Switch from Red to Green to power on the Stratus Duo
3. On power up, your current battery level will be displayed across the four player indicator LEDs for three seconds
4. All four LEDs will flash On and Off rapidly when the controller is in pairing mode
5. To pair the Stratus Duo, go to your Bluetooth Control Panel on your intended device and connect SteelSeries Stratus Duo
6. If the controller has paired successfully, the four player indicator LEDs will flicker ON/OFF every 2 seconds to indicate Connected Status. You are now ready to play!

find help at support.steelseries.com

Re-pairing your Stratus Duo in Bluetooth Mode

Your Stratus Duo will remember the last device that it connected to via Bluetooth and automatically repair. If you would like to force the controller to re-enter pairing mode to pair to a new device:

1. Press the Wireless Pairing Button to force the Stratus Duo to re-enter pairing mode

OR – to erase previous Bluetooth connections

1. Press & Hold the Wireless Pairing Button for 5 seconds to erase previous Bluetooth connections and force the Stratus Duo to re-enter pairing mode.
2. All four LEDs will flash ON/OFF rapidly when the controller is in pairing mode.
3. Go to your Bluetooth Control Panel on your intended device and choose SteelSeries Stratus Duo to pair.
4. Once the Stratus Duo has been paired successfully, the four LEDs will flicker On/Off every 2 seconds to indicated

CHARGING

CHARGING SETUP

To charge your Stratus Duo connect the included USB cable . You are able to Play & Charge via the USB Cable on Windows PCs.

BATTERY LEVEL INDICATION

On power on, your current battery level will be displayed across the four player indicator LEDs for three seconds. To manually show the battery level, press the Battery Level Button at any time to view your current Battery level on the four player indicator LEDs

	> 75%
	50 – 75%
	25 – 50%
	<25%

REGULATORY

Europe – EU Declaration of Conformity
Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community. The full text of the EU declaration of conformity is available at the following internet address: https://steelseries.com/ SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products. Frequency bands and Powers (Headset and Transceiver)

1. Frequency band(s) in which the radio equipment operates:
   • BT and WIFI: 2.400 - 2.4835 GHz
2. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
   • WIFI: /4 DQPSK: 5.57 dBm +2 dBm (Gaming Controller) (it's not final)
   • WIFI: /4 DQPSK: 6.31 dBm +2 dBm (Transceiver)
     Software Version: V1.14

WEEE
This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product

Safety Guideline for Lithium Battery
Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Risk of explosion if battery pack is not replace by same type as specified by the manufacturer.

1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
2. Please keep this battery pack away from fire and high heat sources due to explosion might happen. Do not place your battery pack close to any heater or hot location.
3. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
4. This battery pack shall not be exposed to moisture, dripping or splashing.
5. If any electrolyte flow out of this battery pack when touch the user's eyes and skin, please seek medical advice immediately.

Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

Gaming Controller FCC ID: ZHK-GC00005
Transceiver FCC ID: ZHK-GC00005TX

More information and support from https://steelseries.com/

Industry Canada Statement:
This device complies with RSS standards of the Industry Canada Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This Class B digital apparatus complies with Canadian ICES-003.
Gaming Controller IC: 9638A-GC00005
Transceiver IC: 9638A-GC00005TX

Custom Union Compliance. (Russia / Belarus / Kazakhstan)
ACMA Compliance (Australia/New-Zealand)
Direct Current
Singapore approval (IMDA)

More information and support from https://steelseries.com/

Product Name: Gaming Controller
Model No.: GC-00005
Rated: 5V ⎓ 500mA
Charging Rated: 5V ⎓ 500mA;

Accessories information
Product Name: Transceiver
Model No.: GC-00005TX
Rated: 5V ⎓ 100mA
Made in China
CAN ICES-3(B)/NMB-3(B)

Operating Temperature: 0 to + 40°C

learn more at steelseries.com
