Related Manuals for DallasDelta VOIP CAMERA DOORSTATION
Summary of Contents for DallasDelta VOIP CAMERA DOORSTATION
- Page 1 VOIP CAMERA DOORSTATION User Manual Australian Made Vandal Resistant Weather Resistant This user manual includes a step by quick start guide, Item checklist, diagrams and specifications.
-
Page 2: Table Of Contents
CONTENTS SAFETY AND CARE INFORMATION 1. Safety and care information ................3 Important Warning .....................3 QUICK START GUIDE 2.0 Quick start Guide ....................4 PRODUCT DESCRIPTION 3.0 Product Description ................... 5 PRODUCT FEATURES 4.0 Product Features ....................5 4.1 Operation Modes and features ................ 5 4.2 Video Features .................... -
Page 3: Safety And Care Information
1. SAFETY AND CARE INFORMATION Please read these instructions thoroughly before starting installation. This product must be installed and maintained only by competent personnel familiar with electrical and telephone installation. IMPORTANT! This phone, like any VoIP phone, operates using ethernet network, which cannot guarantee connection in all conditions. -
Page 4: Quick Start Guide
2.0 QUICK START GUIDE Power Up Power the VoIP CAM via either: 15 V DC Power Supply 802.11af Compatible PoE Switch or Injector Wait for initalization Once the VoIP CAM is ready, it will speak “System Ready” Read out the IP Address 1 2 3 4 5 6 Press ‘C’... -
Page 5: Product Description

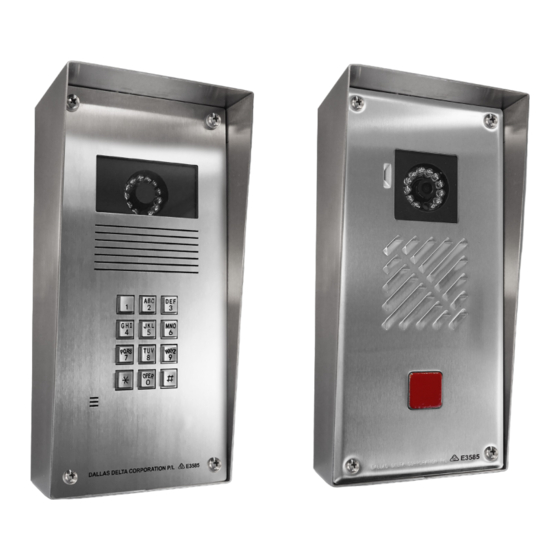

3. PRODUCT DESCRIPTION The Sentry IP Video Door Station is an Ethernet connected telephone which provides voice and video over internet protocol (VoIP) communication technology. Giving you the power of our PSTN base units in a IP format. Using a SIP protocol standard, it provides an easy connection to most VoIP based equipment. -
Page 6: Network Security Features
● Narrowband codec: G.711(A/μ), GSM, G729 ● DTMF: Out-of-band(RFC 2833) and SIP INFO ● Full-duplex hands-free speakerphone ● Voice activity detection ● Acoustic echo cancelling ● Adaptive jitter buffers ● Packet loss concealment 4.4 Network and Security Features ● Session Initiation Protocol, RFC 3261 8. -
Page 7: Installation
● Symmetric RTP / RTP Control Protocol (RTCP), RFC 4961 ● Secure Real Time Transport Protocol (SRTP, RFC 3711) ● IP assignment: static/DHCP ● HTTP web server ● Time and date synchronization ● QoS: 802.1 tagging (VLAN) , and DSCP 5. -
Page 8: Keypad Configuration
5.4 Keypad Configuration The keypad on the rear of the unit provides the installer access to: ● Listen to the current IP address ● Reset the unit to the factory default settings ● Reboot the unit. 5.5 Get current IP address During standby, press ’C’... -
Page 9: Login
5.9 Login The default login username and password are as follows: Username: admin Password: admin Login page: Configuring device via the Dashboard page: For additional help there are instructions available in the web interface by clicking on the “Help” button on the menu bar at the top. The “Help” button will show up with different instructions for each individual page. - Page 12 FCC Part 22 Subpart H, FCC Part 24 Subpart E SGS Report No: EG/2013/80025 RSS-132 Issue 2, RSS-133 Issue 5 102 Albert St, Brunswick East, VICTORIA 3057 Tel.: +613 9387 7388 ● Fax: +613 9387 3128 sales@dallasdelta.com ● www.dallasdelta.com E3589 © DallasDelta 2020...
