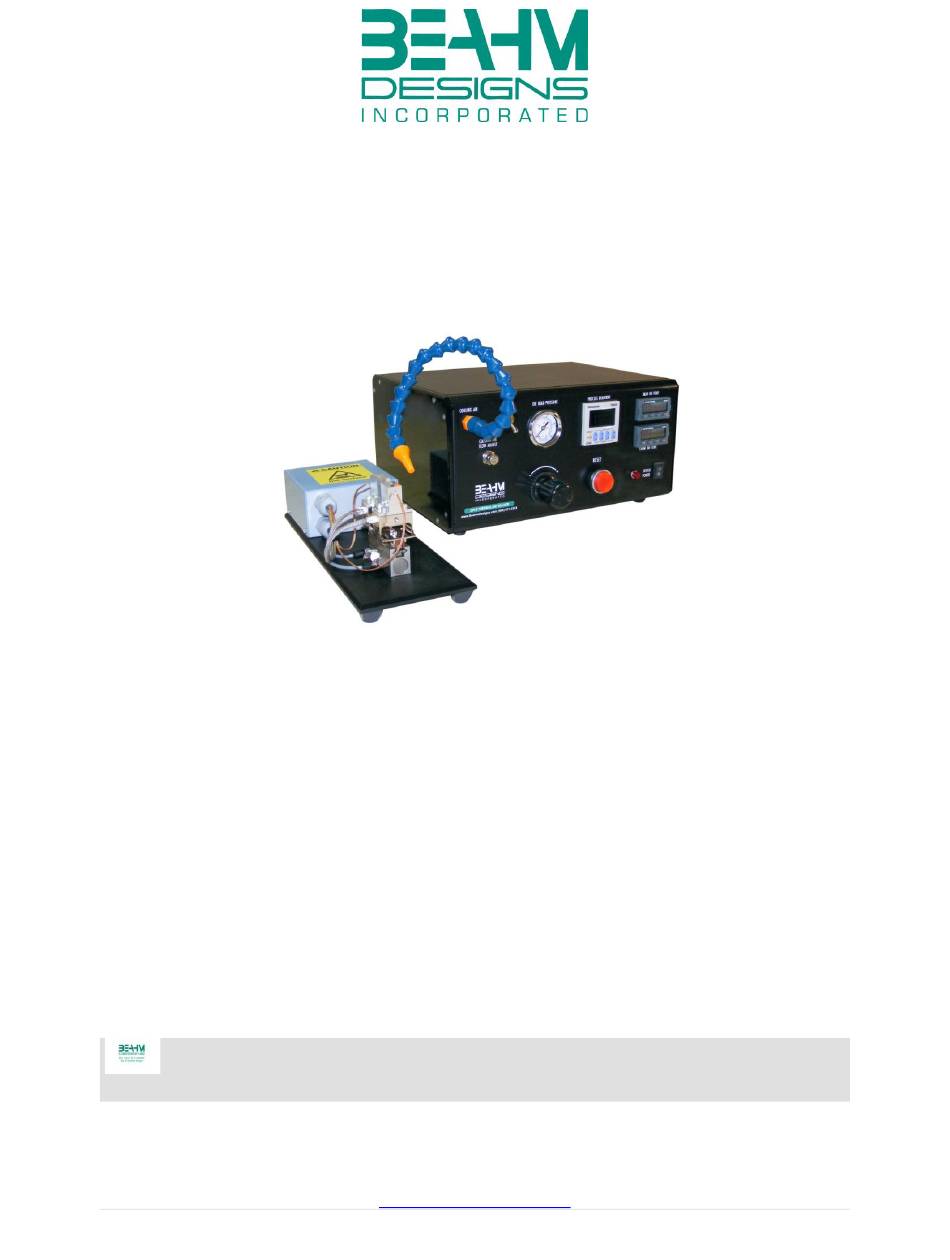

- Page 1 Equipment User Manual Split Die Thermal Bonder User Manual (Model 220-B) (Beahm Bonder 220B) 1502 Gladding Ct. Milpitas, Ca. 95035. 408-395-5360 www.beahmdesigns.com P a g e...
-
Page 2: Table Of Contents
Equipment User Manual TABLE OF CONTENTS List of Components General Description 2.1 System Data Sheet Controls Front Panel Controls Rear Panel Controls Installation Parameter Setting Pressure Regulator Setting Cooling Air Flow Setting Temperature Controller Setting Process Timer Setting Temperature Controller Layout Auto-Tuning Instructions System Operation Facilities Requirements... -
Page 3: List Of Components
2.0 General Description The unique and simple die head design of the Beahm Designs Split Die Thermal Bonder, provides a low cost quick tool alternative to RF die bonding. The three parameter operation is easy to set-up and use and simplifies system calibration and process validation. -
Page 4: Rear Panel Controls
Equipment User Manual Timer Reset Button Process Duration Timer 3.2 Rear Panel Controls Located on the rear panel of the unit are: Power entry module Industrial system air connection System Fuse Front temperature controller thermocouple calibration port. Rear temperature controller thermocouple calibration port. Pressure gauge calibration port. -
Page 5: Process Timer Setting
Equipment User Manual 4.4 Process Timer Setting Depress the upper half of the blue rocker buttons to increase time duration, depress the lower half of the blue rocker button to decrease the time duration. Depress the timer reset button for at least 1.0 seconds to accept the new value. 4.5 Temperature Controller Setting Eurotherm Model 2132 To Set the temperature proceed as follows:... -
Page 6: Safety Precaution
Equipment User Manual 5.2 Safety Precaution Hot die jaws will become hot during operation and, depending on temperature set-point, can cause severe skin burns if contact occurs. 5.3 System Controls • Switch main power on. • Set die temperature on EACH temperature controller by pressing the UP/Down arrow key once to display the set temperature, then again to change it. -
Page 7: Maintenance
6.2.1 Calibrate the temperature controller annually. 6.2.2 Calibrate the process timers annually. 6.2.3 Calibrate the pressure gauges annually. 6.3 Replacement Parts List: (the below items are available through Beahm Designs) Description Delivery 5018 1 week Heater Cartridge 5071 1 week... -
Page 8: Warranty Information
2. is attributable to misuse, improper installation, alteration (including removing or obliterating labels and opening or removing external covers (unless authorized to do so by Beahm Designs), accident or mishandling while in the possession of someone other than Beahm Designs, Inc. -
Page 9: 1700-14 Front Panel Controls
Equipment User Manual 1700-14 Front Panel Controls 1502 Gladding Ct. Milpitas, Ca. 95035. 408-395-5360 www.beahmdesigns.com P a g e... -
Page 10: 1700-09 Blank Die Head
Equipment User Manual 6066 Blank Die Head 1502 Gladding Ct. Milpitas, Ca. 95035. 408-395-5360 www.beahmdesigns.com 10 | P a g e... - Page 11 Equipment User Manual 8.3 Document 10125-20 1502 Gladding Ct. Milpitas, Ca. 95035. 408-395-5360 www.beahmdesigns.com 11 | P a g e...
-
Page 12: System Schematic
Equipment User Manual 8.4 3018 System Schematic 1502 Gladding Ct. Milpitas, Ca. 95035. 408-395-5360 www.beahmdesigns.com 12 | P a g e... - Page 13 Equipment User Manual 9.0 List of Component Data Sheets Eurotherm 2132 Temperature Controller Split Die Thermal Bonder 1502 Gladding Ct. Milpitas, Ca. 95035. 408-395-5360 www.beahmdesigns.com 13 | P a g e...
