AccuBANKER LED425 User Manual

Counterfeit bill/document validator with guide
Hide thumbs Also See for LED425:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
LED425
Counterfeit Bill/Document Validator with Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED425 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuBANKER LED425

Summary of Contents for AccuBANKER LED425

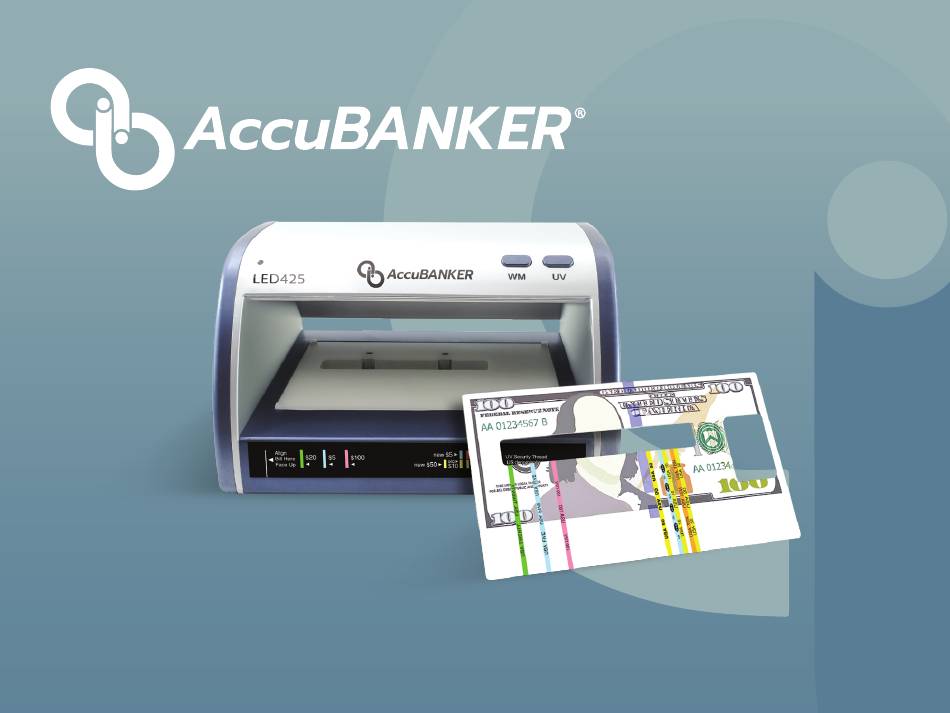

  • Page 1 User Guide LED425 Counterfeit Bill/Document Validator with Guide...
  • Page 2 Thank you for trusting AccuBANKER with your cash handling needs. In order to optimize the performance of your equipment, we encourage you to thoroughly read this user guide prior to use.

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions ................... 4 1. Introduction ........................5 2. Box Contents ........................ 6 3. Parts Description ......................7 4. Installation ........................8 5. Operation Description ....................9 5.1 Ultraviolet Verification Operation ................. 9 5.2 Watermark Verification Operation ..............13 6.

  • Page 4: Important Safety Instructions

    Important Safety Instructions  This device has been designed to operate with this specific Power Supply (AC / DC Adaptor) which is included in your purchase. Failing to use the designated adaptor may cause malfunction and may void the warranty. ...

  • Page 5: Introduction

    1. Introduction The LED425 Validator allows the user to inspect money, credit cards, IDs, or any other security documents to help in verifying and confirming their authenticity. This User Guide will allow you to become familiar with all the details related to the unit’s operation.

  • Page 6: Box Contents

    2. Box Contents 1. LED425 Validator 4. Warranty Booklet 2. Power Adaptor 5. Template Guide 3. User Guide...

  • Page 7: Parts Description

    3. Parts Description 1. Power On / Off Indicator 2. UV / WM Selector Buttons (Ultraviolet / Watermark) 3. Function Activator Sensor for Lower UV Lamps 4. Lower UV LED Lamps 5. Function Activator Sensor for Upper UV Lamps 6. Security Thread Identification Label 7.

  • Page 8: Installation

    4. Installation When choosing a position/location for the LED425 validator, avoid choosing a location close to a strong natural/artificial light source as this can overpower the UV feature’s fluorescence. Connect the power adaptor to the power outlet on the wall and the DC plug into the device power adaptor jack on the LED425.

  • Page 9: Operation Description

    5. Operation Description To use the unit appropriately and efficiently, we recommend that the user become familiar with the security features of the bills or documents that they want to analyze. Additionally, the user should compare any suspicious bills against a genuine one, to better determine its authenticity.
  • Page 10 5. Operation Description (continued) 5.1 Ultraviolet Verification Operation (continued) Place the bill or document to be analyzed in the Verification Window. The UV LED light should be activated with the bill or document as it is placed in the inspection area. If the bill or document does not activate the UV light, press the UV control button to turn the UV light on manually.
  • Page 11 5. Operation Description (continued) 5.1 Ultraviolet Verification Operation (continued) NOTE: The detector includes a “Security Thread Identification” template guide and label. These tools show the operator the COLOR and POSITION of the security thread embedded on U.S. bills for every specific denomination. Template Guide...
  • Page 12 5. Operation Description (continued) 5.1 Ultraviolet Verification Operation (continued) Security Thread Identification Label Using these as a reference will help the operator validate the bill since the COLOR and POSITION must match.

  • Page 13: Watermark Verification Operation

    5. Operation Description (continued) 5.2 Watermark Verification Operation Place the bill or document to be analyzed in the Verification Window. If you are not verifying the watermark on US dollar bills you will need to remove the Template Guide for a larger verification area. Press the WM function button to turn the WM screen ON.

  • Page 14: Cleaning And Maintenance

    6. Cleaning and Maintenance CAUTION: Before performing any cleaning process, turn off the equipment and unplug it. Please note that problems or defects caused by lack of maintenance are not covered under the warranty. a) Internal cleaning of the unit It is necessary to clean the interior of the equipment once a month or more frequently depending on use.

  • Page 15: Specifications

    7. Specifications Ambient Temperature: 32° - 104°F 0° - 40°C Humidity: 25% - 80% UV Light Source: Super-Bright UV LEDs Super-Bright White LEDs array WM Light Source: Vin: 100 - 240 VAC Power Source: 60 - 50 Hz 0.6A Vout: 12VDC / 1.0 A <...
  • Page 16 AccuBANKER 7104 NW 50th St. Miami, FL 33166 9:00 am - 5:00 pm ET • Monday to Friday www.AccuBANKER.com Call us at 1-888-993-2228...
